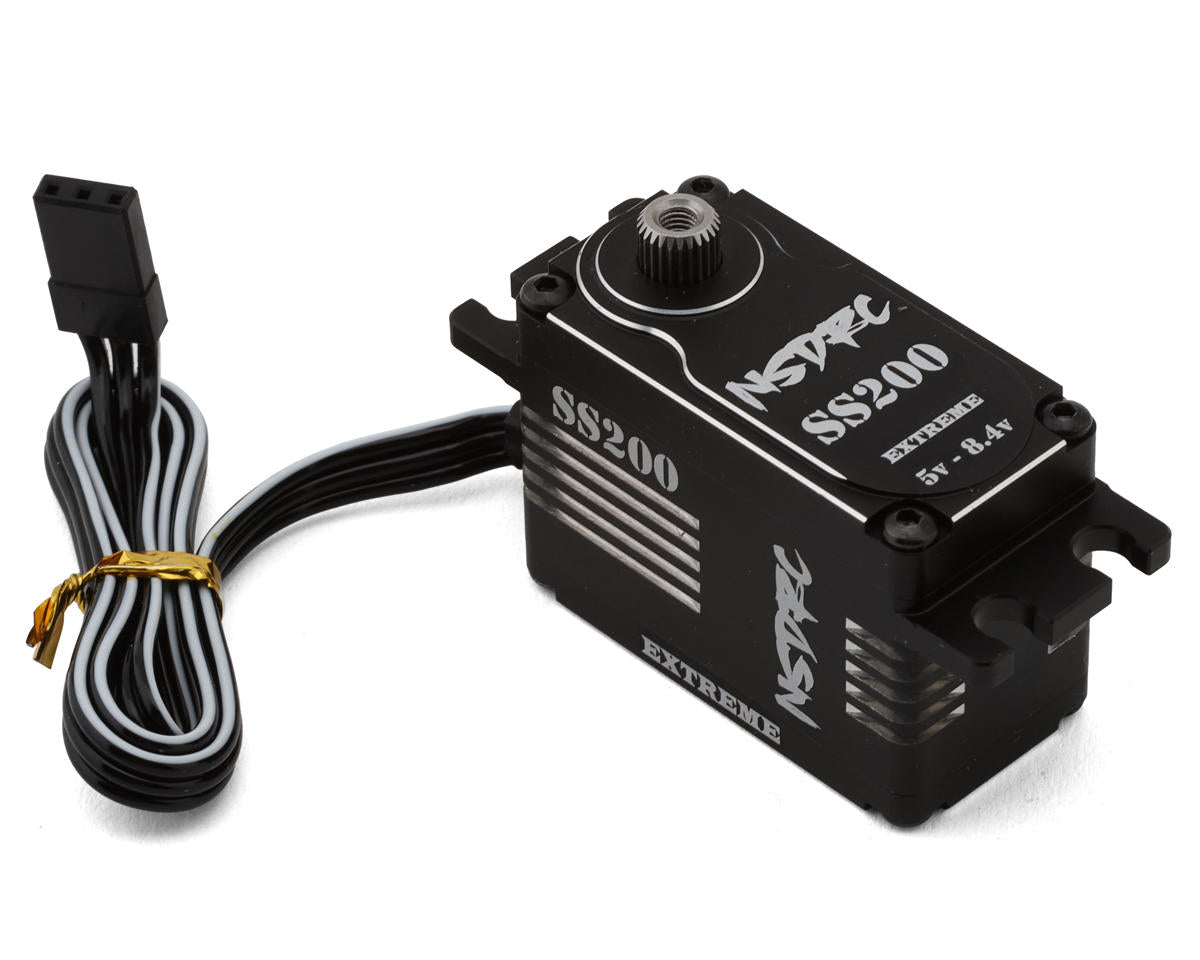

No Superior Designs RC SS200 Extreme Performance Low Pro Servo (HV) (Heli Spec)

The No Superior Designs RC SS200 Extreme Performance Low Pro Servo is a high-voltage, low-profile servo for RC helicopters. It features a brushless motor, steel gear train, dual ball bearings, a 25T output spline, and an IP66 water-resistant rating.

Features

• 0.033 sec/60° operating speed at 8.4V
• 245 oz-in (17.6 Kg-cm) dynamic torque at 8.4V
• CNC aluminum case for heat dissipation and durability
• 5-gear stainless steel gear train
• Brushless motor and digital circuitry
• Dual ball bearings
• IP66 water-resistant rating

Specifications

• Application: RC Helicopters
• Input Voltage: 5-8.4V
• Operating Speed @ 6.0V: 0.045 sec/60°
• Operating Speed @ 7.4V: 0.037 sec/60°
• Operating Speed @ 8.4V: 0.033 sec/60°
• Dynamic Torque @ 6.0V: 177 oz-in (12.8 Kg-cm)
• Dynamic Torque @ 7.4V: 215 oz-in (15.5 Kg-cm)
• Dynamic Torque @ 8.4V: 245 oz-in (17.6 Kg-cm)
• Water-Resistant Rating: IP66
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.57x0.78x1.06in (40x20x27mm)
• Weight: 2.29oz (65g)

Includes

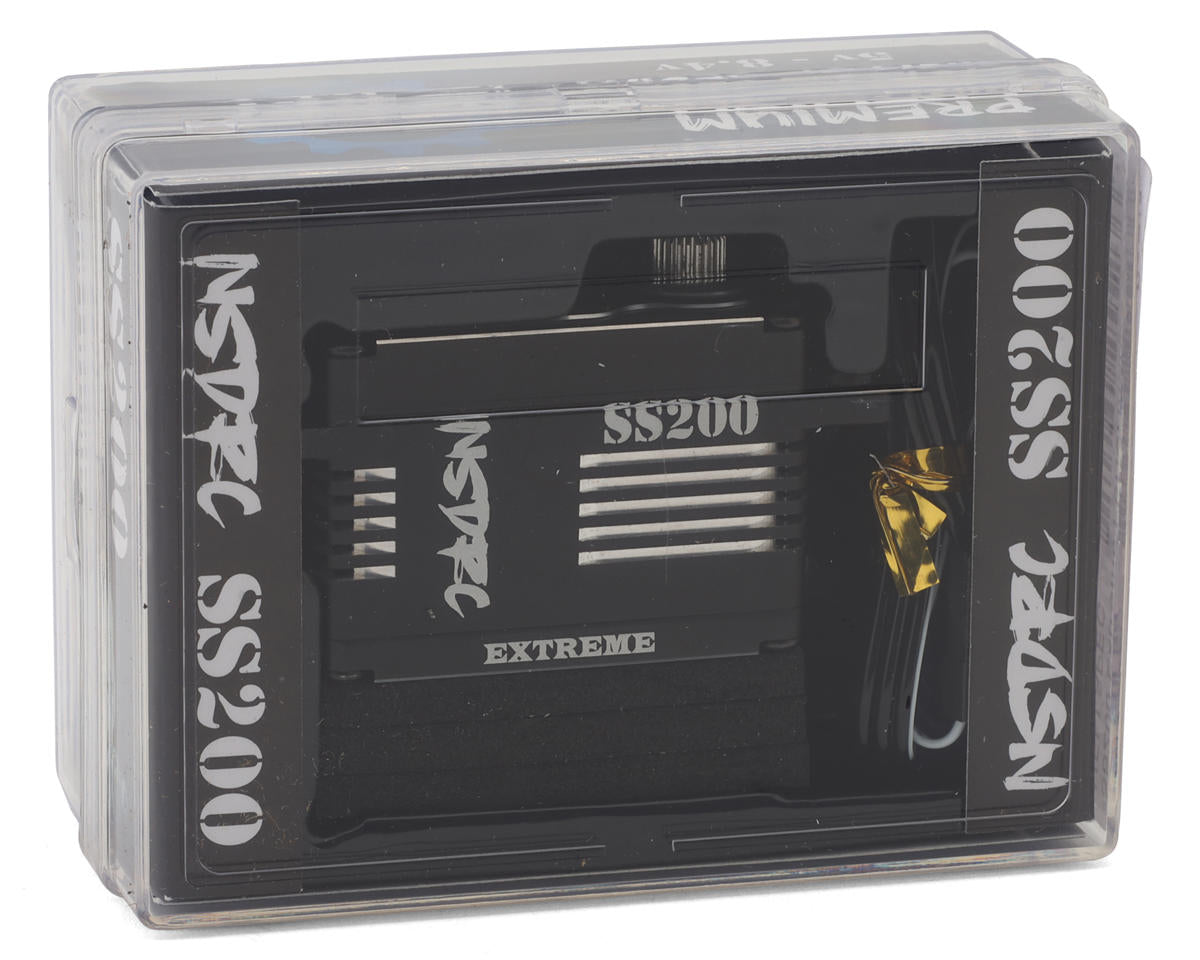

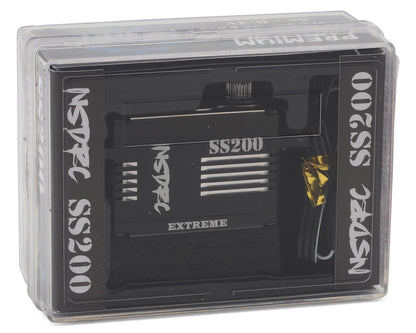

• (1) SS200 Extreme Performance Low Pro Servo (HV) (Heli Spec)

Tech Note: A BEC with 8amp or higher output is highly recommended to get the full potential out of the SS200.
