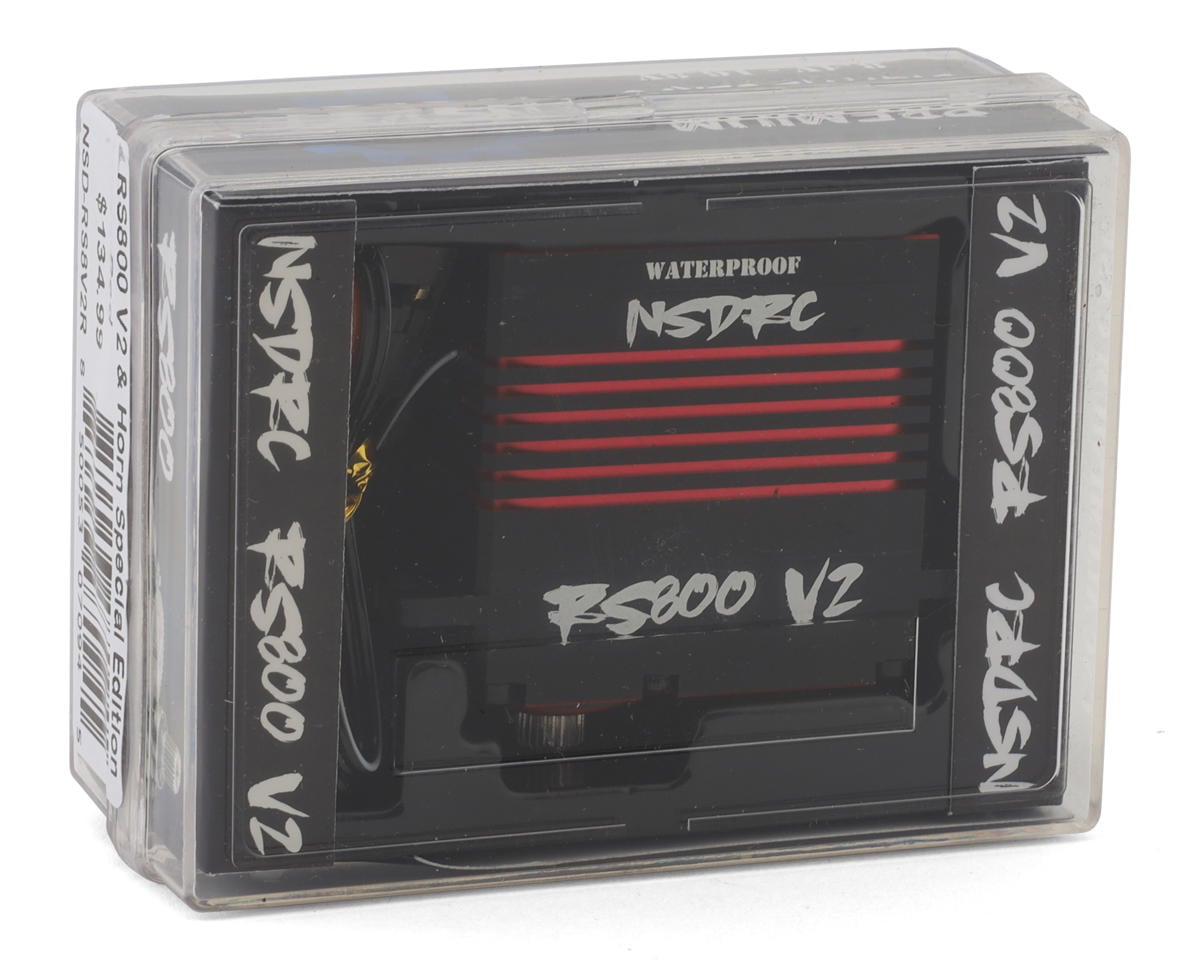

No Superior Designs RC RS800 V2 Waterproof Brushless Aluminum Case Servo (HV)

The No Superior Designs RC RS800 V2 Special Edition is a waterproof, high-voltage brushless servo with a full CNC aluminum case, stainless steel gear train, and included aluminum servo horn. Its 4-pole brushless motor is designed for demanding RC applications.

Features

• Full CNC aluminum case for heat dissipation and durability
• 5-gear stainless steel gear train
• Waterproof design for outdoor tracks and trails
• Brushless 4-pole motor
• 25T operating spline

Specifications

• Speed: @8.4V: 0.18sec/60°; @12.6V: 0.14sec/60°; @16.8V: 0.10sec/60°
• Torque: @8.4V: 600oz-in (43kg-cm); @12.6V: 900oz-in (65kg-cm); @16.8V: 1100oz-in (83kg-cm)
• Motor: Brushless
• Operating Voltage: 8.4V-16.8V
• Operating Temp.: 14F-122F (-10C/50C)
• Dimensions (LxWxH): 1.57"x0.78"x1.53" (40x20x39.1mm)
• Weight: 2.99oz (85g)
• Operating Spline: 25T

Includes

• (1) RS800 V2 Special Edition Brushless Servo (High Voltage)
• (1) Aluminum Servo Horn
• Servo Horns and Mounting Hardware

Important: Disconnect the power connection plug or turn off the power switch on your ESC when the servo is not in use to help prevent damage to the servo or battery. Powering through the balance plug is not recommended.
