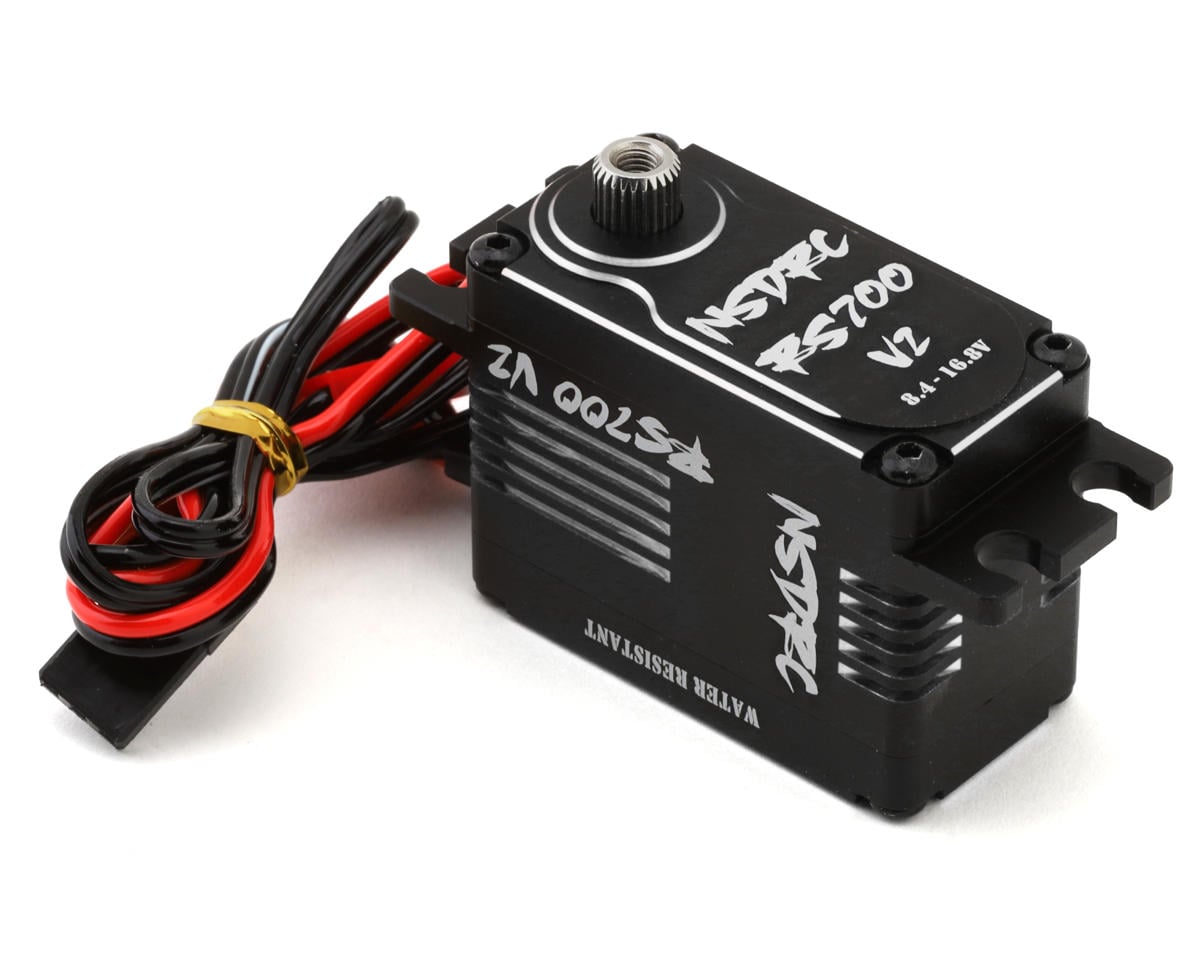

No Superior Designs RC RS700 V2 High Torque Low Profile Servo (High Voltage)

The No Superior Designs RC RS700 V2 is a high-voltage, low-profile servo with a 4-pole brushless sensored motor, hardened stainless steel gears and a CNC-machined aluminum case. Its 5-gear design, magnetic angle sensor and direct power configuration support precise, durable operation in a compact package.

Features

• Black anodized CNC-machined aluminum case
• Water resistant
• Hardened stainless steel gears
• Direct power for superior efficiency
• 4-pole custom brushless motor
• 5-gear design
• Magnetic angle sensor
• High voltage (HV) capable

Specifications

• Type: Standard Low-Profile
• Motor Type: 4-Pole Brushless sensored
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimensions (LxWxH): 40x30x20mm
• Weight: 70g
• Case: CNC-Machined Aluminum
• Torque at 8.4V: 634oz-in / 46kg-cm
• Torque at 12.6V: 912oz-in / 66kg-cm
• Torque at 16.8V: 1115oz-in / 80kg-cm
• Speed at 8.4V: 0.15 sec/60°
• Speed at 12.6V: 0.11 sec/60°
• Speed at 16.8V: 0.09 sec/60°

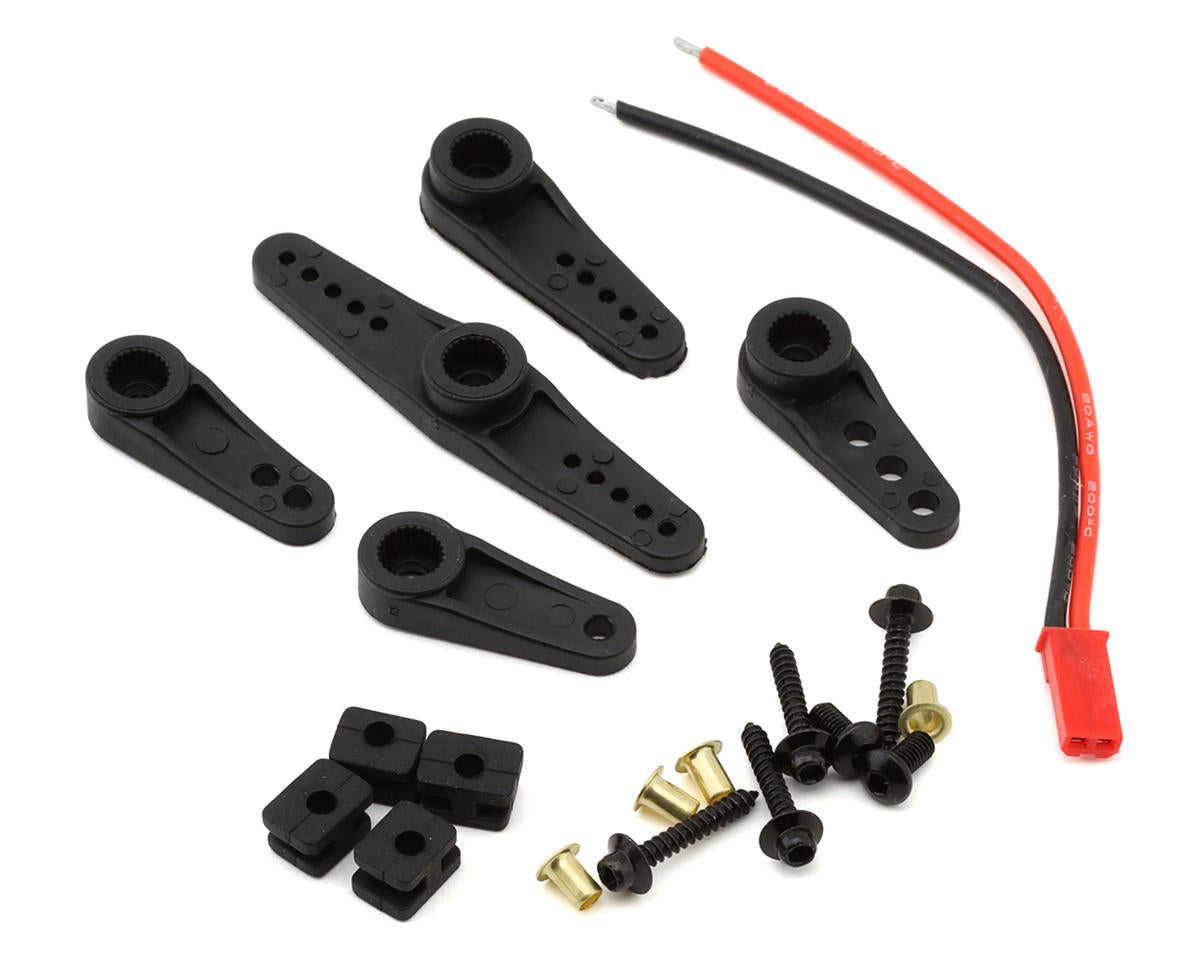

Includes

• (1) S700 V2 High Torque servo
• (1) Pre-wired 2-Pin JST plug
• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Important Notes

• Not recommended for rock bouncers or bashers.
• Disconnect the power connection plug or turn off the power switch on the ESC when not in use to prevent damage to the servo and/or battery.
• Not recommended to power using the balance plug.
