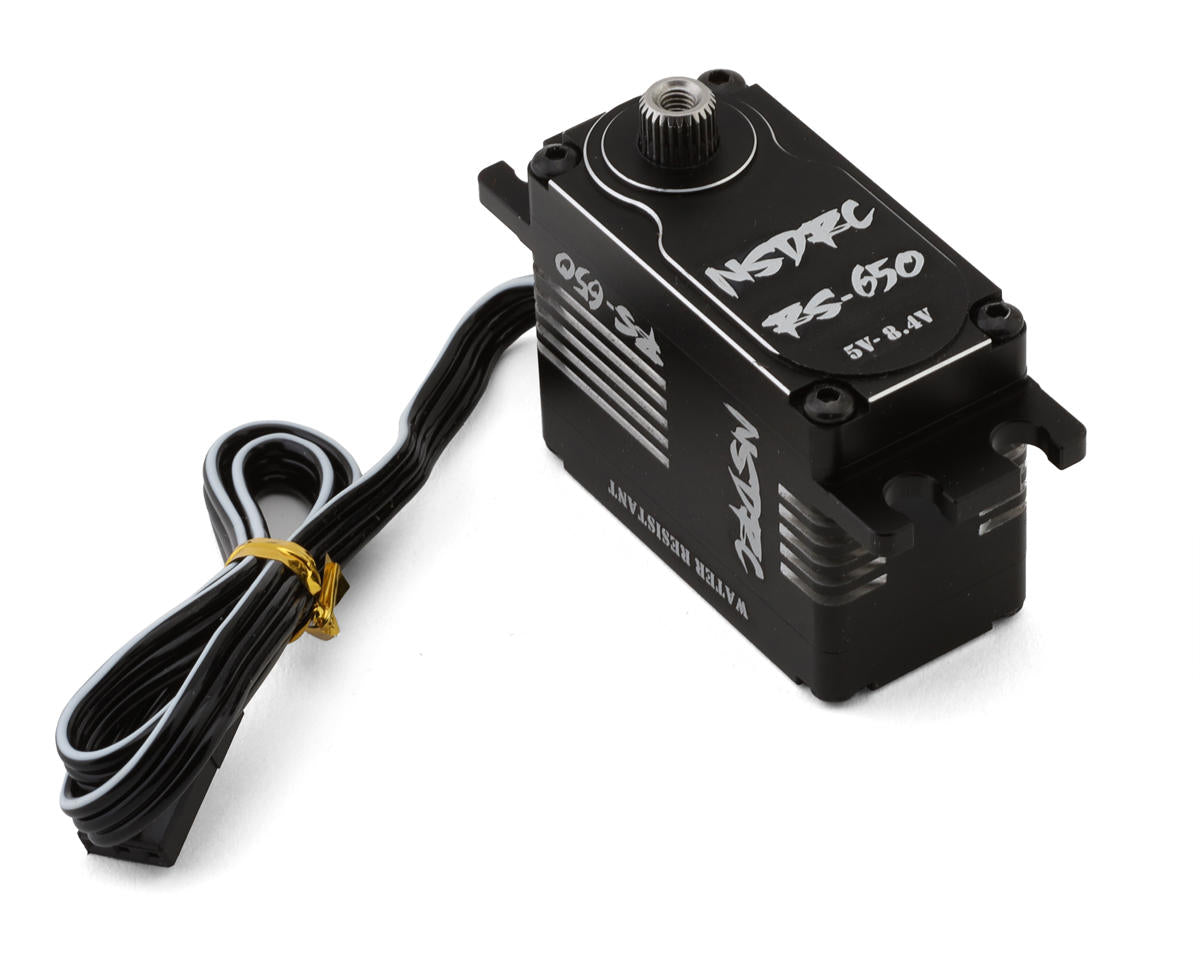

No Superior Designs RC RS650 Waterproof Low Profile Brushless Servo (HV)

The No Superior Designs RC RS650 is a high-torque, low-profile brushless servo for 1/10-1/8 surface applications. It combines a custom 4-pole brushless motor with a 5-gear train, hardened 416 stainless steel gears, and a water resistant casing in a compact design.

Features

• High voltage capable
• Custom 4-pole brushless motor
• 5-gear 4-pole gear train for enhanced durability and precision
• Hardened 416 stainless steel gears
• Compact, low-profile design
• High torque performance
• Optimized for weight and space savings
• 25T output shaft
• Water resistant casing

Specifications

• Suggested Application: 1/10-1/8 Surface
• Input Voltage: 5.0V-8.4V
• Speed: 6.0V: 0.14 sec/60°; 7.4V: 0.12 sec/60°; 8.4V: 0.10 sec/60°
• Torque: 6.0V: 705oz-in (50.7kg-cm); 7.4V: 812oz-in (58.5kg-cm); 8.4V: 940oz-in (67.7kg-cm)
• Pulse/Frequency: 1520us
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Hardened Steel
• Dimensions: 1.58x0.79x1.21in. (40x20x30.7mm)
• Weight: 2.51oz (71g)

Includes

• (1) RS650 High Torque Low Profile Brushless Servo

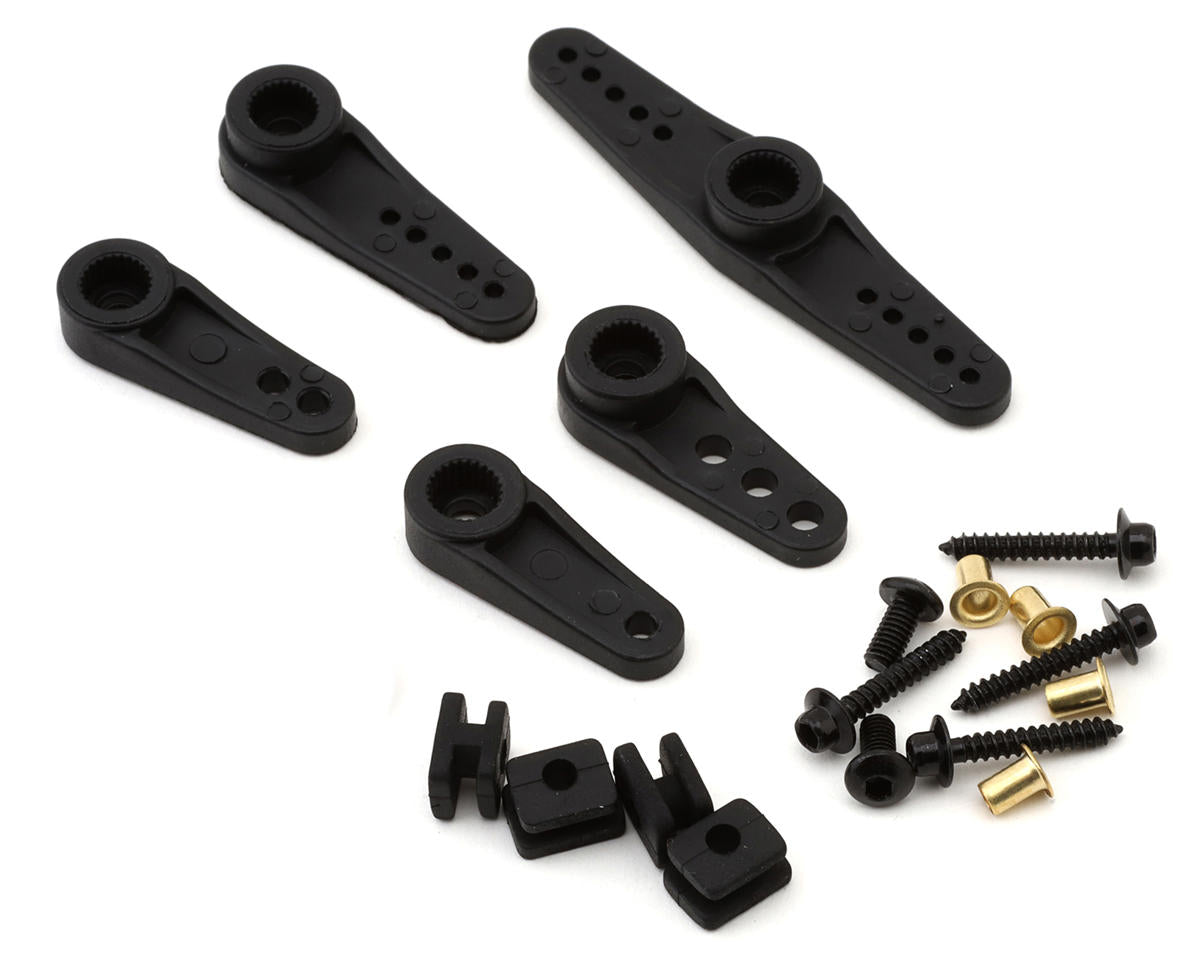

• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Not recommended for rock bouncers. A 10 Amp BEC is recommended to provide sufficient power.
