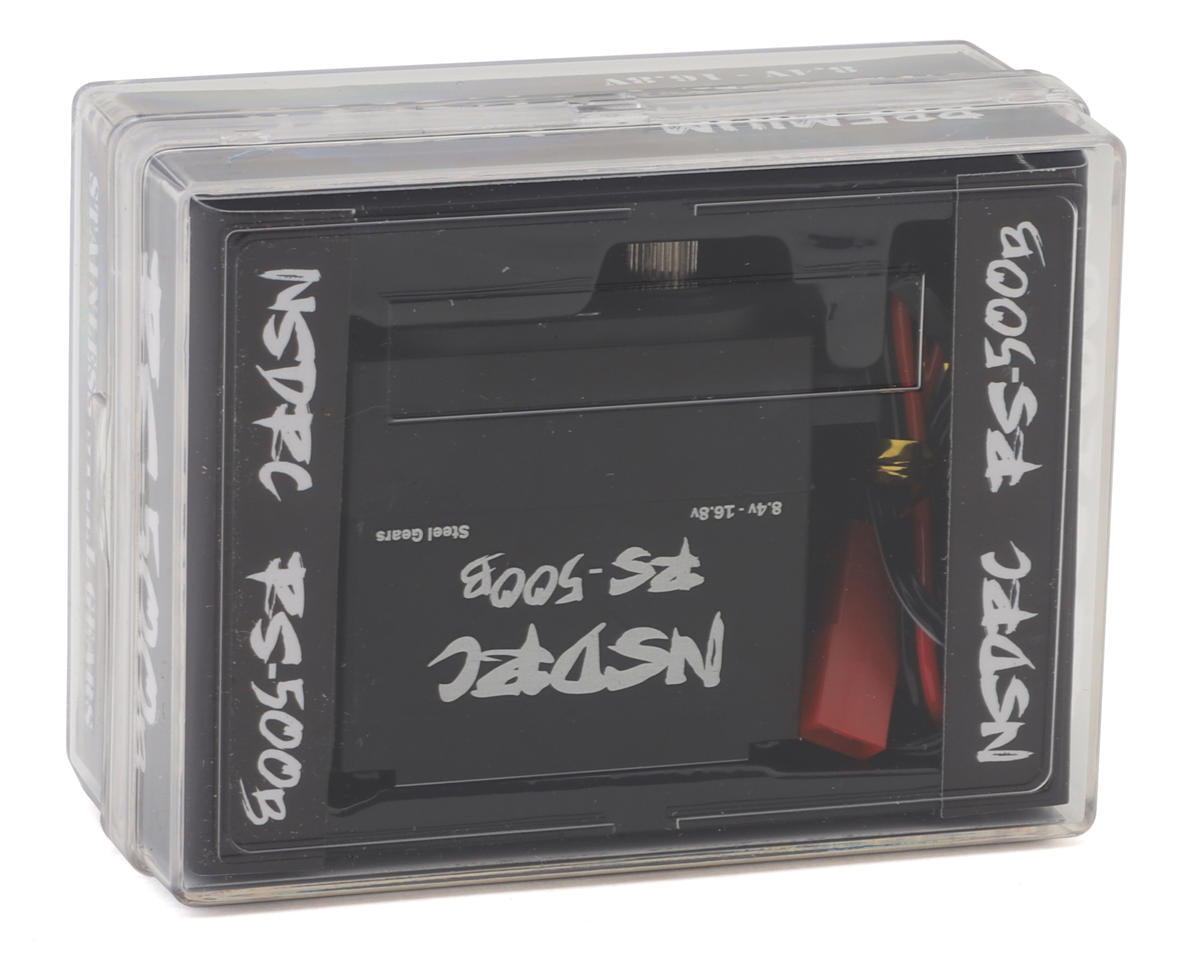

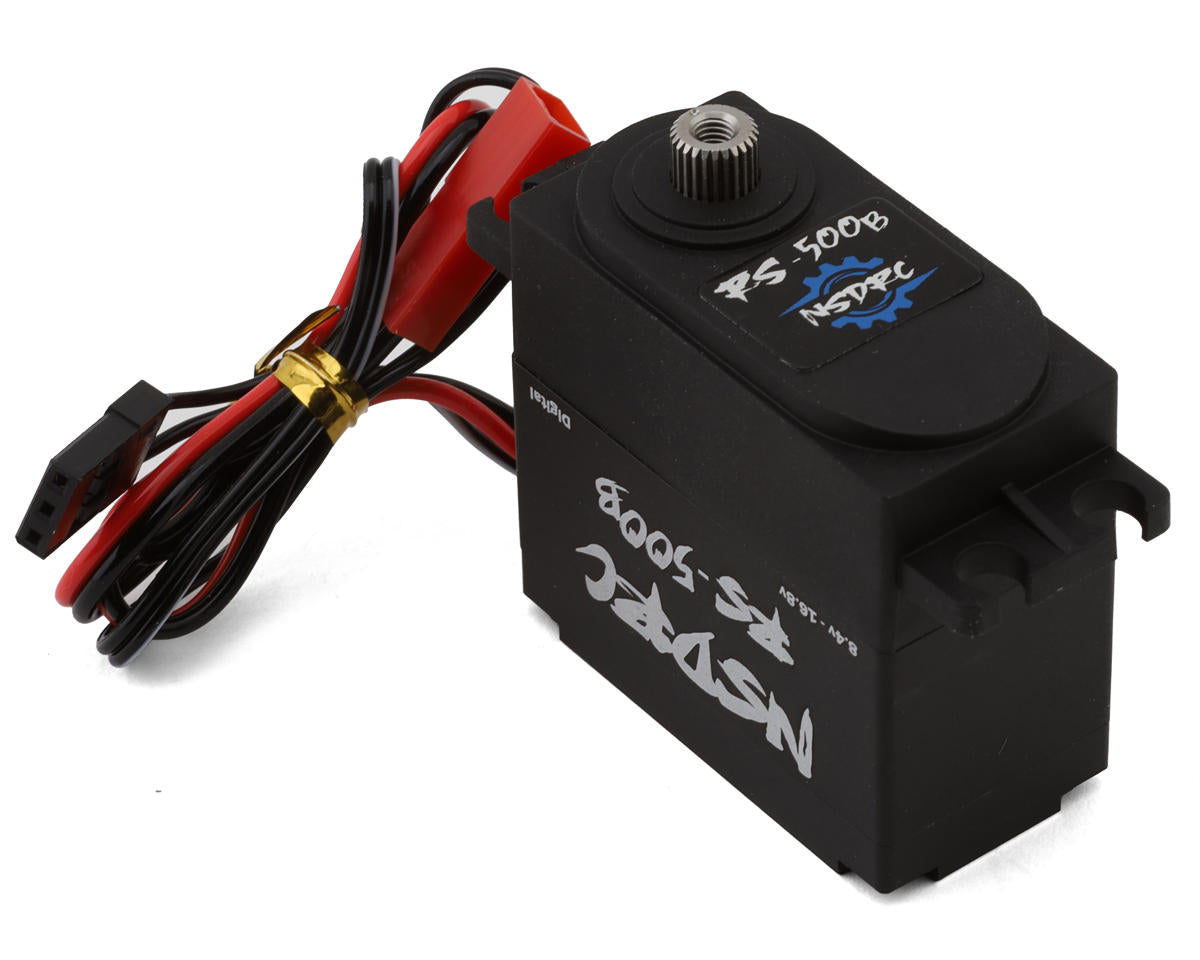

No Superior Designs RC RS500B High Torque Servo (High Voltage)

The No Superior Designs RC RS500B is a high-voltage, standard-size high-torque servo with a coreless motor, hardened stainless steel gears, and a CNC-machined aluminum case. It supports direct operation from 8.4V-16.8V without extra wiring or a BEC.

Features

• Hardened stainless steel gears
• Composite top case with CNC-machined aluminum middle and bottom case
• IP66 water resistant; do not submerge
• 7-point O-ring seals
• Full conformal coated internals
• High voltage (HV) capable
• Direct power 8.4V-16.8V capable with no extra wiring or BEC needed to get full power from the servo

Specifications

• Type: Standard
• Motor Type: Coreless
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimension (LxWxH): 40.5x39x20mm
• Weight: 68g
• Case: CNC-Machined Aluminum
• Torque: 8.4V: 310oz/ 22kg; 12.6V: 430oz/ 31kg; 16.8V: 520oz/ 38kg
• Speed: 8.4V: 0.15 sec/60°; 12.6V: 0.12 sec/60°; 16.8V: 0.09 sec/60°

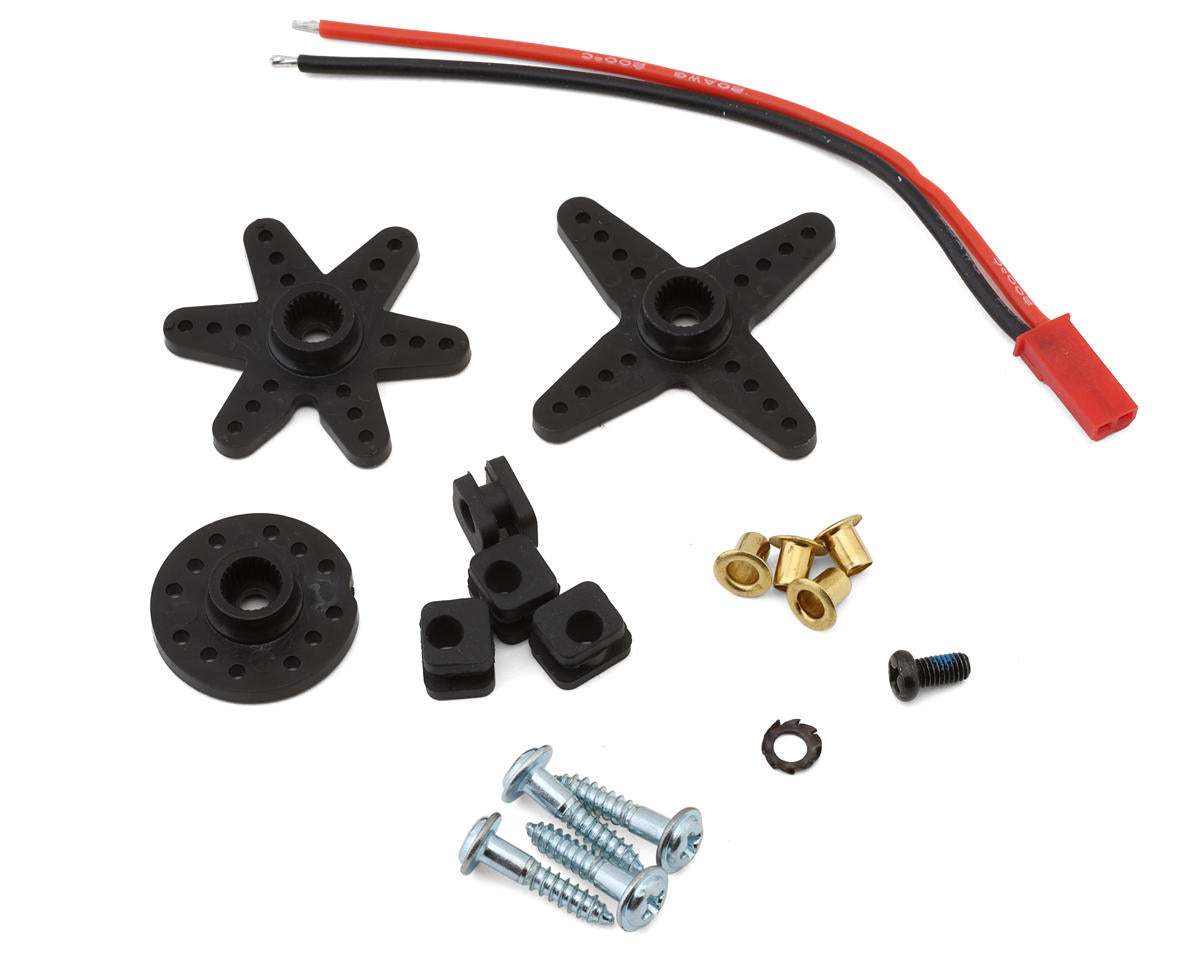

Includes

• (1) RS500B High Torque Servo (High Voltage)
• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Important: Disconnect the power connection plug or turn off the power switch on your ESC when the servo is not in use to prevent damage to the servo and/or battery. Not recommended for rock bouncers and bashers.
