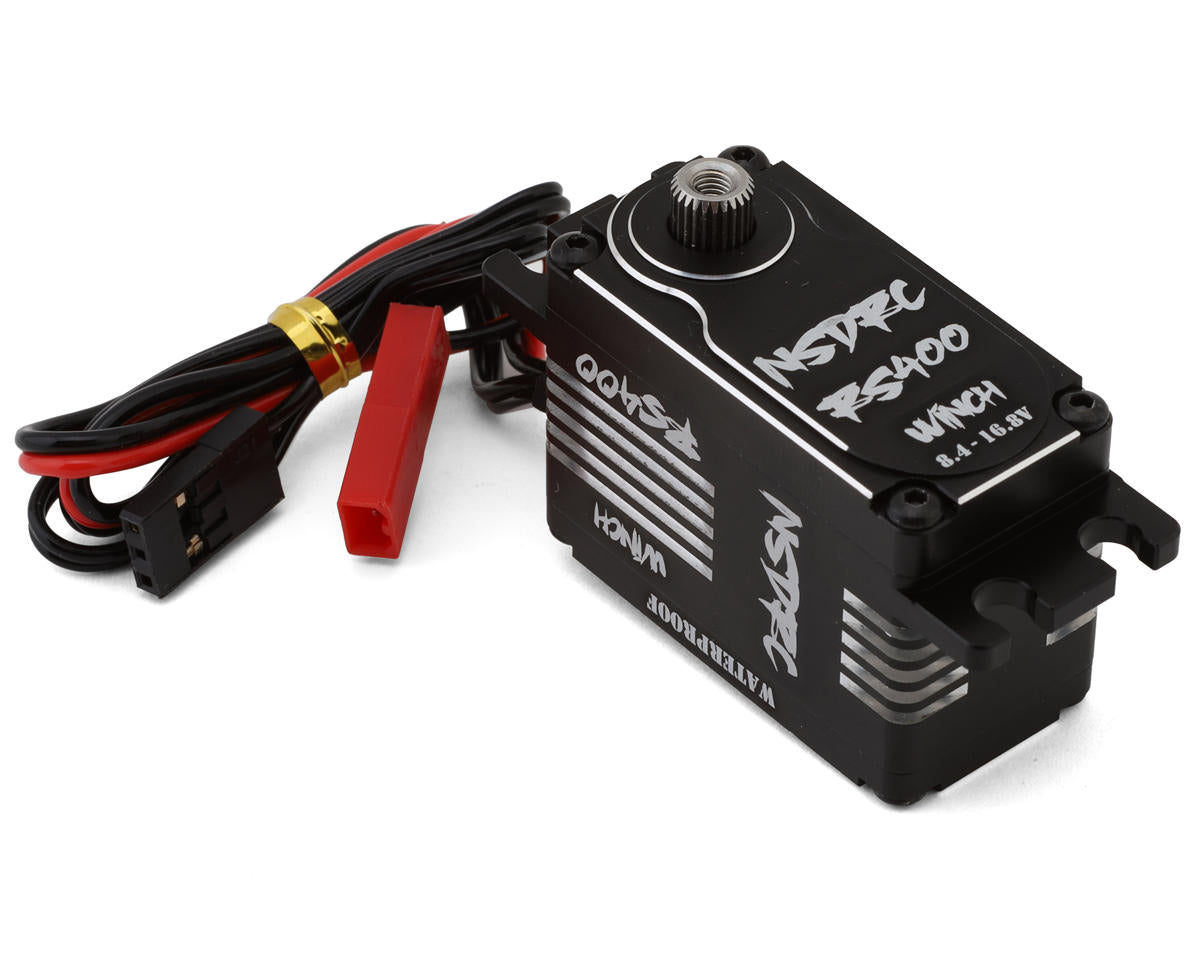

No Superior Designs RC RS400 Low Profile Servo Winch (High Voltage)

The No Superior Designs RC RS400 is a high-voltage, low-profile micro winch with a built-in winch controller, coreless motor, and hardened stainless steel gears. Its CNC-machined aluminum case and Nano spool provide a compact setup, while the magnetic angle sensor delivers precise brake hold.

The RS400 is water resistant, but not submersible. It requires a remote and receiver with a 3rd channel momentary or 3 position switch. This winch does not work as a steering servo. Winch line, hook, and mounts are sold separately.

Features

• Hardened stainless steel gears
• CNC-machined aluminum Nano spool capable of holding 3 ft of line
• Full CNC-machined aluminum case
• Water resistant (not submersible)
• High voltage (HV) capable
• Built-in winch controller

Specifications

• Type: Micro Winch
• Motor Type: Coreless
• Operating Voltage: 8.4V-16.8V
• Gears: Hardened Stainless Steel
• Spline: 15T 3.8mm Nano
• Dimension (LxWxH): 20x17x10mm
• Weight: 10g
• Case: CNC-Machined Aluminum
• Torque: 8.4V: 215oz; 12.6V: 330oz; 16.8V: 450oz
• Speed: 8.4V: 0.09 sec/60°; 12.6V: 0.06 sec/60°; 16.8V: 0.05 sec/60°

Includes

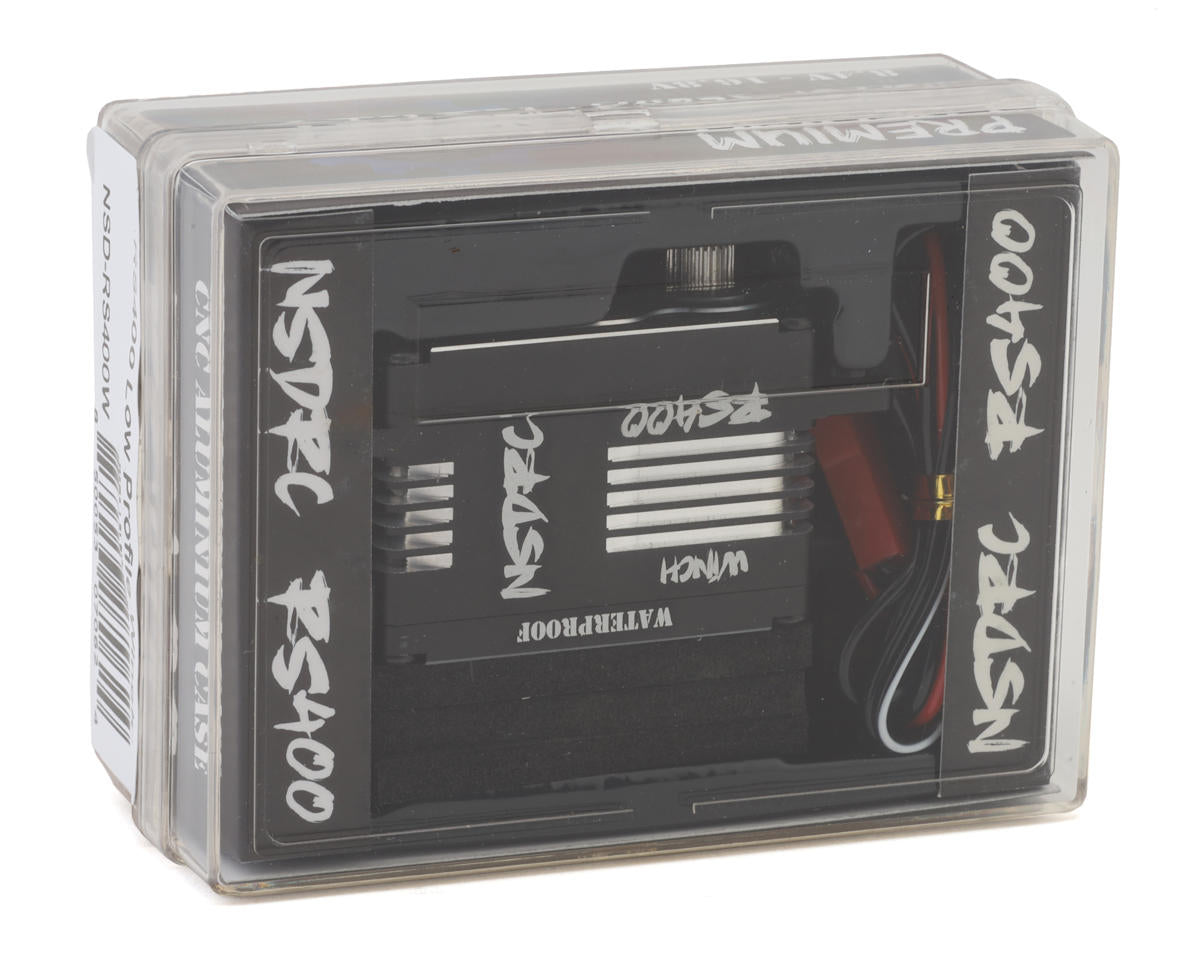

• (1) RS400 Low Profile Servo Winch

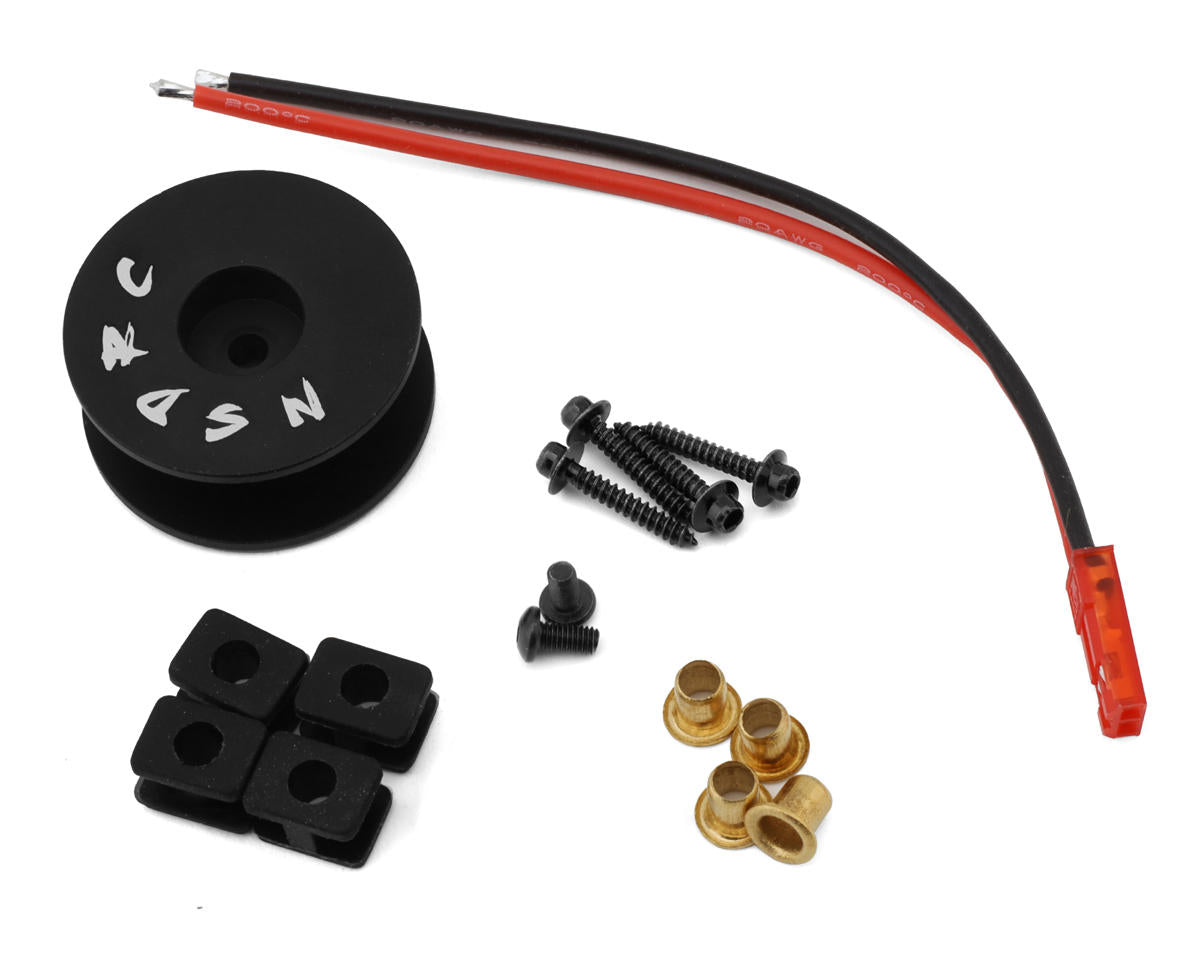

• (1) CNC-machined Aluminum Spool
• Mounting screws
