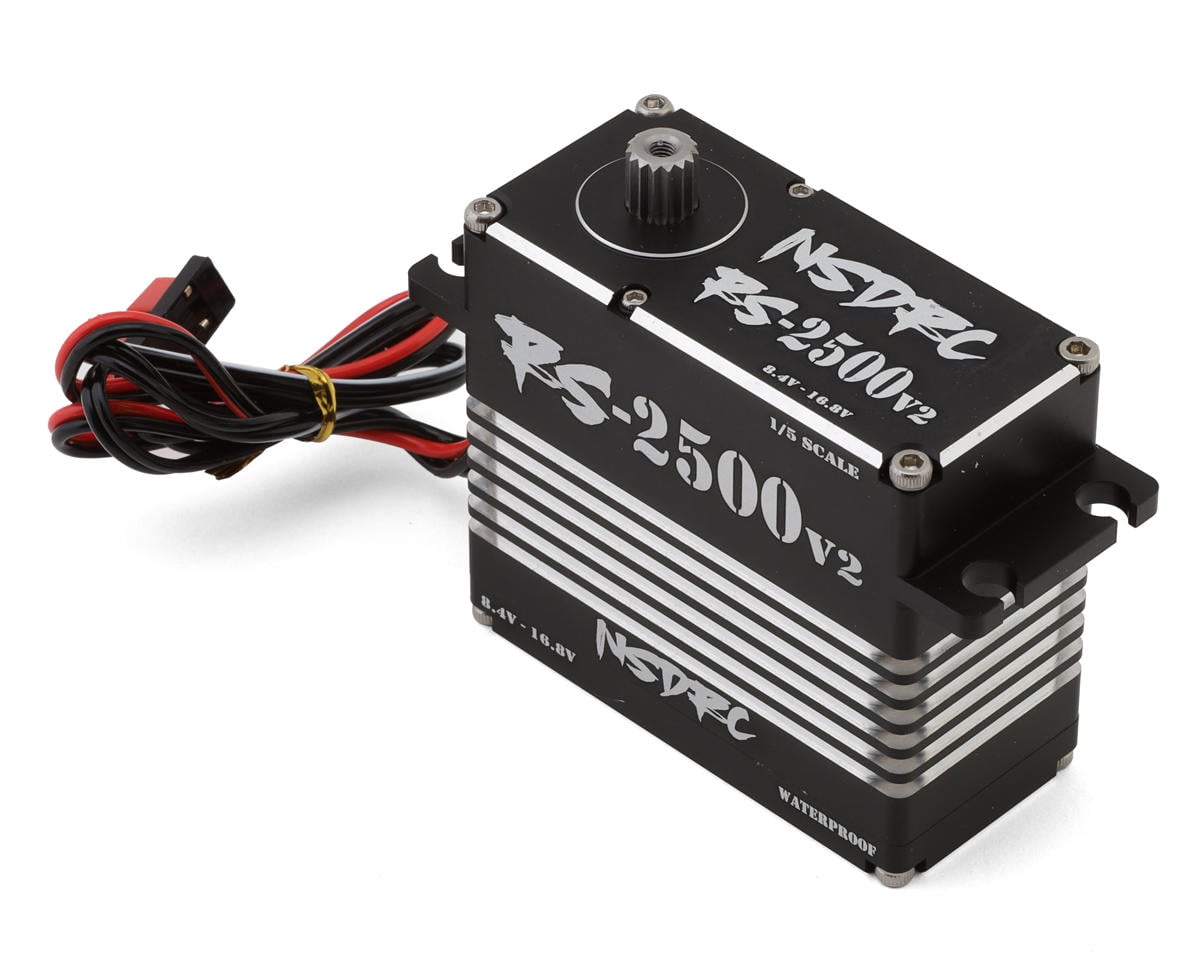

No Superior Designs RC RS2500 V2 1/5 Insane Torque Servo (High Voltage)

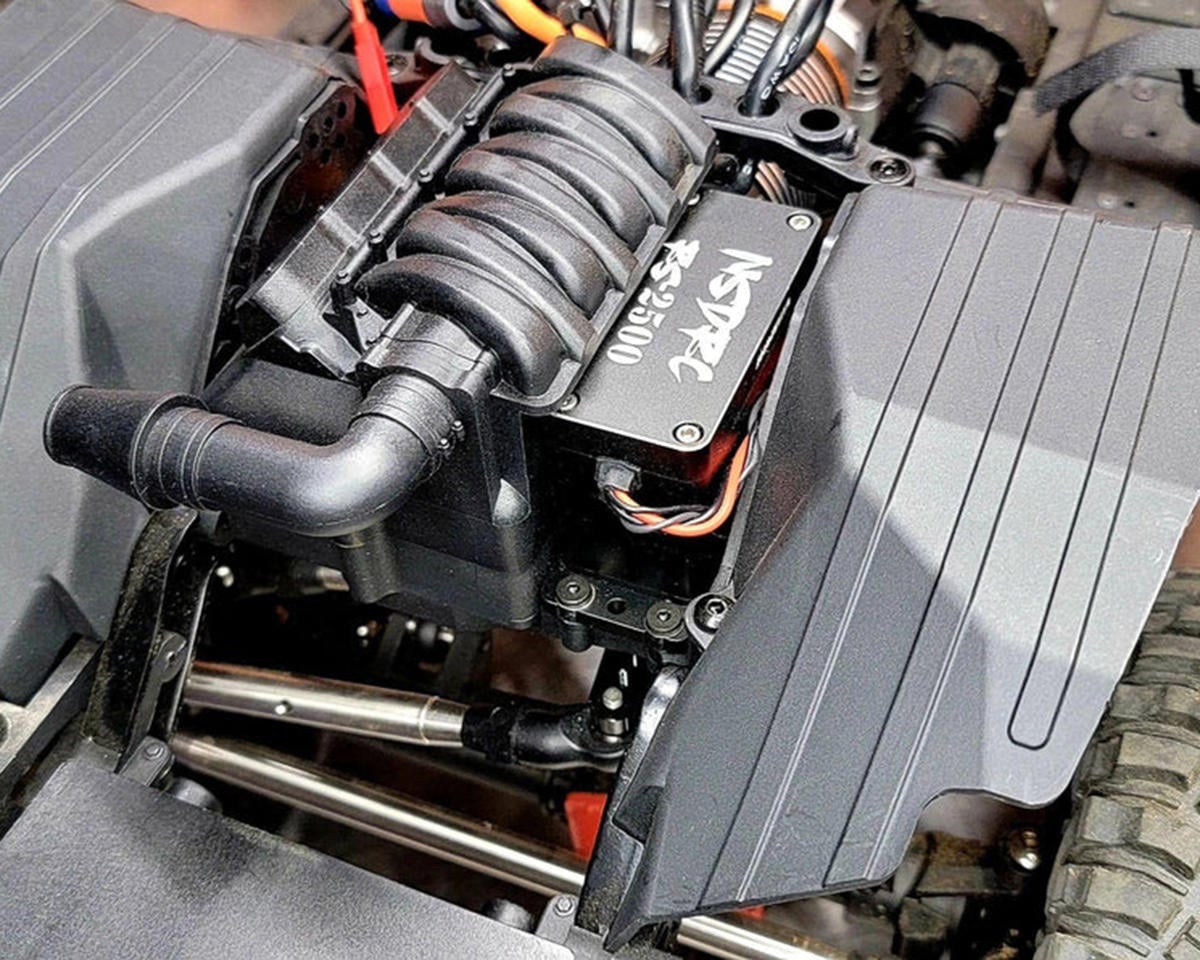

The No Superior Designs RC RS2500 V2 is a high-voltage 1/5 scale servo with a brushless sensored motor, hardened stainless steel gears, and a CNC-machined aluminum case. It is a strong fit and upgrade for SCX6 platforms and other large-scale applications requiring high torque and speed.

Features

• Black anodized all CNC-machined aluminum case
• Water resistant; not recommended to be submerged
• 10-point O-ring seal
• Hardened stainless steel gears
• High quality brushless motor
• Dual ball bearings
• Digital high accuracy encoder
• High voltage (HV) 16.8V capable

Specifications

• Type: 1/5 Scale Insane Torque
• Motor Type: Brushless Sensored
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 15T
• Dimension (LxWxH): 64x57.3x30mm
• Weight: 248g
• Case: CNC-Machined Aluminum

Torque

• 8.4V: 1520oz-in / 110kg-cm
• 12.6V: 2175oz-in / 157kg-cm
• 16.8V: 2650oz-in / 191kg-cm

Speed

• 8.4V: 0.15 sec/60°
• 12.6V: 0.097 sec/60°
• 16.8V: 0.075 sec/60°

Includes

• (1) RS2500 V2 1/5 Insane Torque Servo
• Multiple composite horns

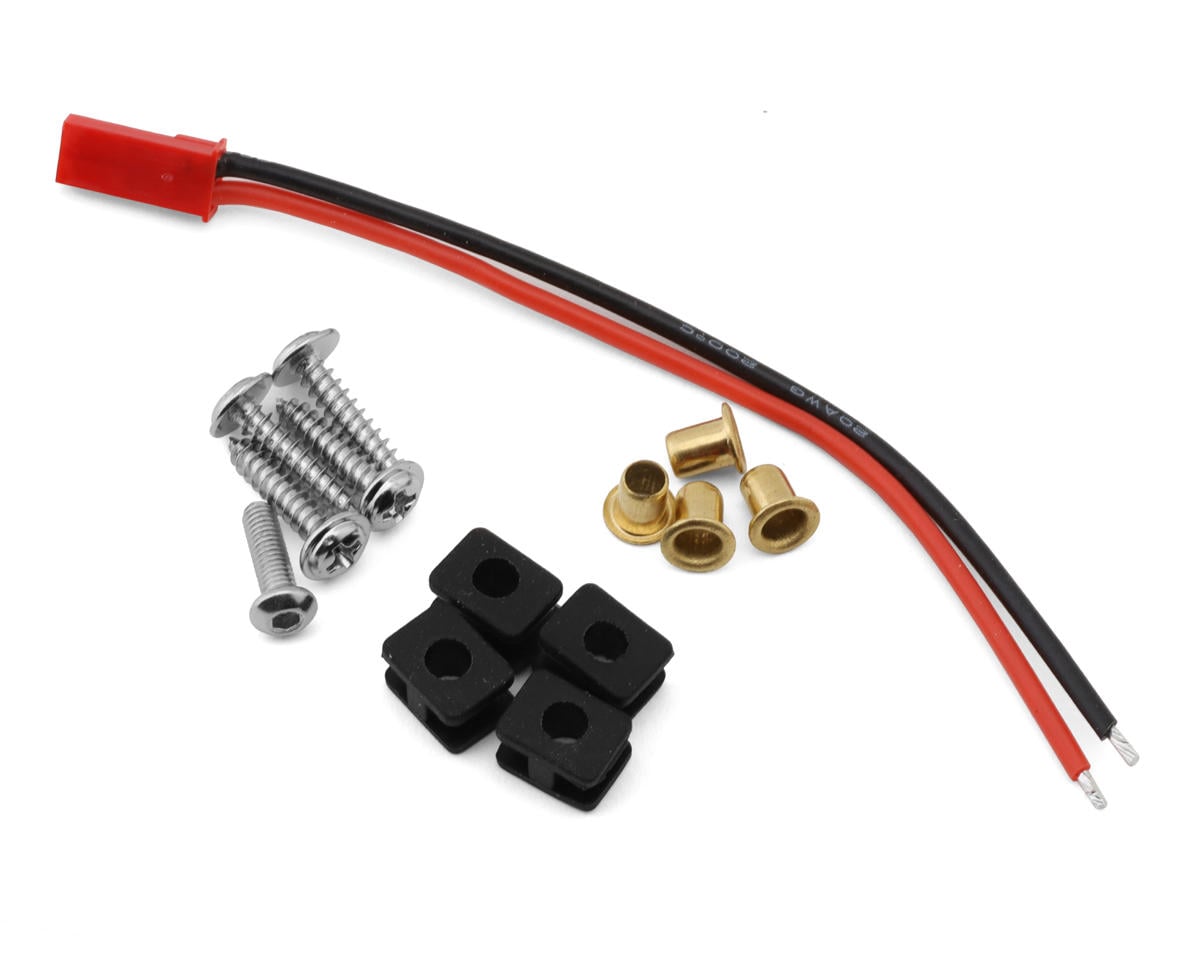

• Mounting screws, bushing and rubber grommets

Important Notes

• Make sure the horn spline is deep enough to fully seat on the RS2500 spline shaft. A horn that does not fully seat can cause the spline shaft to twist under heavy impact.
• Disconnect the power connection plug, or turn off the power switch on your ESC, when not in use to prevent damage to the servo and/or battery.
• Not recommended to power using the balance plug.
