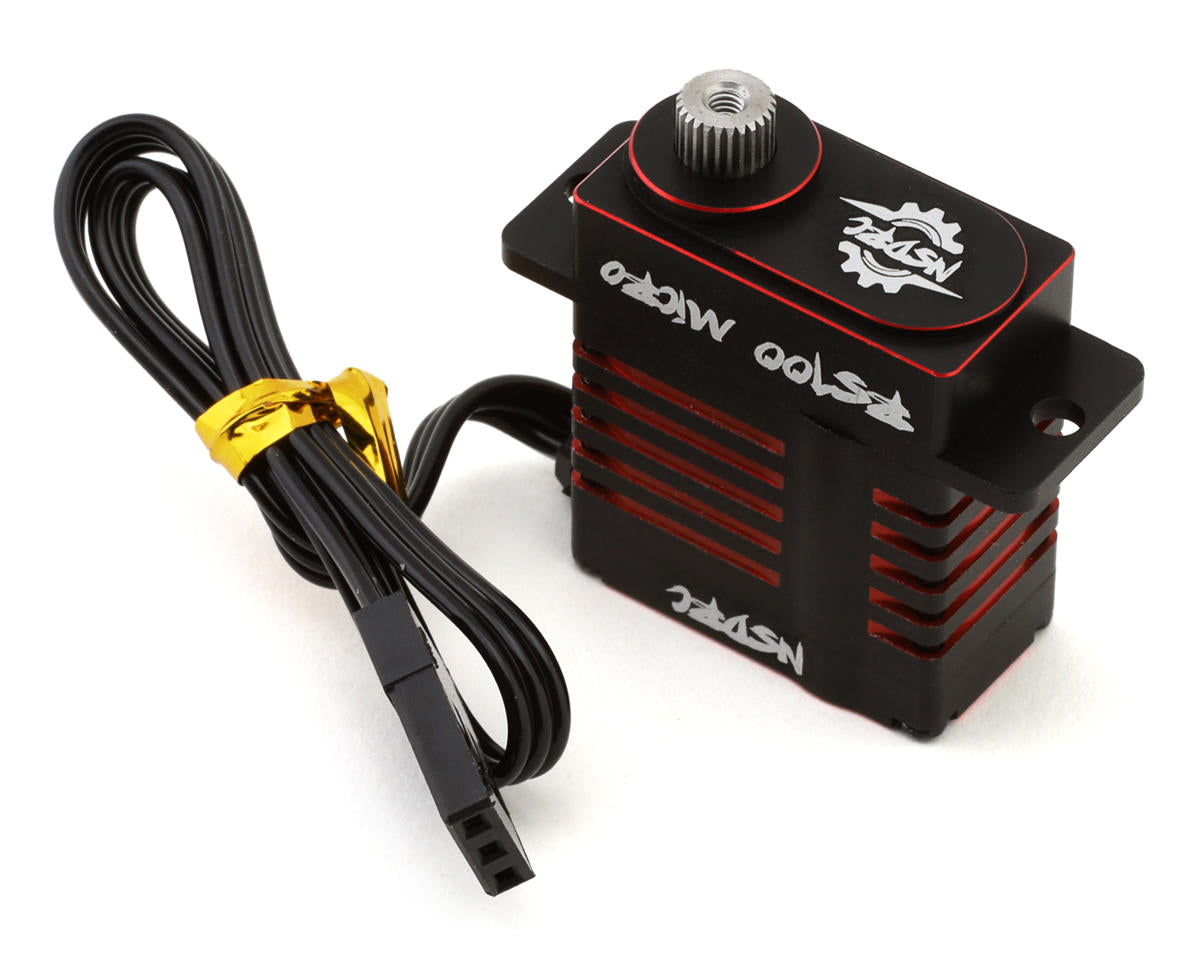

No Superior Designs RC RS100 Limited Edition Waterproof Micro Servo (HV)

The No Superior Designs RC RS100 Limited Edition High Torque Micro Servo features a black and red anodized CNC-machined aluminum case, hardened stainless steel gears, a coreless motor, and high-voltage capability for 5V - 8.4V operation.

Its water-resistant case uses a 7-point O-ring seal. The RS100 is not submarine proof and should not be submerged.

Features

• Black and red anodized all CNC-machined aluminum case
• Water resistant with 7-point O-ring seal
• Hardened stainless steel gears
• High voltage (HV) capable

Specifications

• Type: Standard Micro
• Motor Type: Coreless
• Operating Voltage: 5V - 8.4V
• Gears: Hardened Stainless Steel
• Spline: 25T (4.9mm - Micro)
• Dimension (LxWxH): 26x23x12mm
• Weight: 20g
• Case: CNC-Machined Aluminum
• Torque: 6V: 152oz/ 11kg; 7.4V: 175oz/ 12.7kg; 8.4V: 197oz/ 14.2kg
• Speed: 6V: 0.09 sec/60°; 7.4V: 0.07 sec/60°; 8.4V: 0.06 sec/60°

Includes

• (1) RS100 Limited Edition High Torque Micro Servo

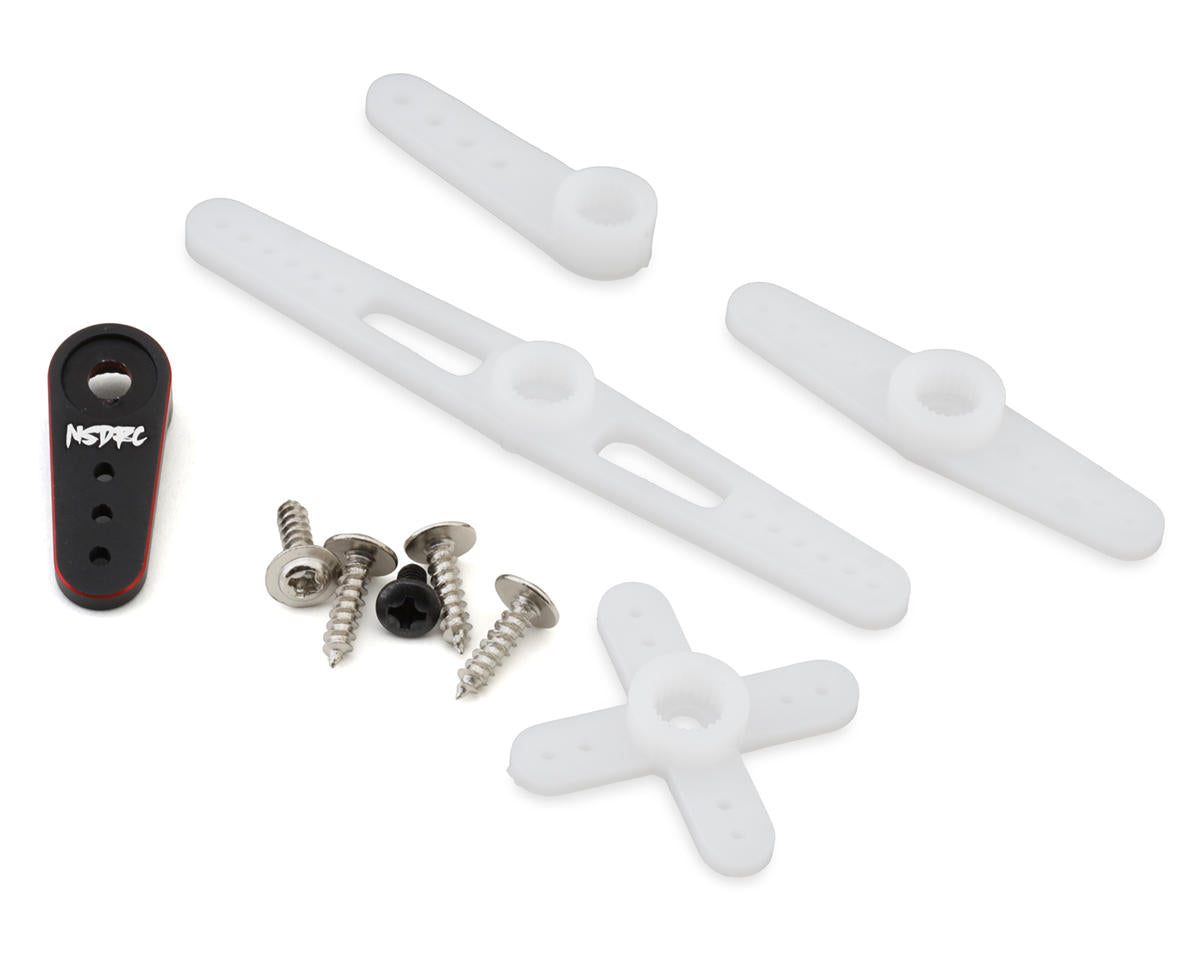

• (1) Anodized CNC-Machined micro horn
• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Micro BEC is recommended for micro servos used in 1/24 and 1/18 Micro applications.
