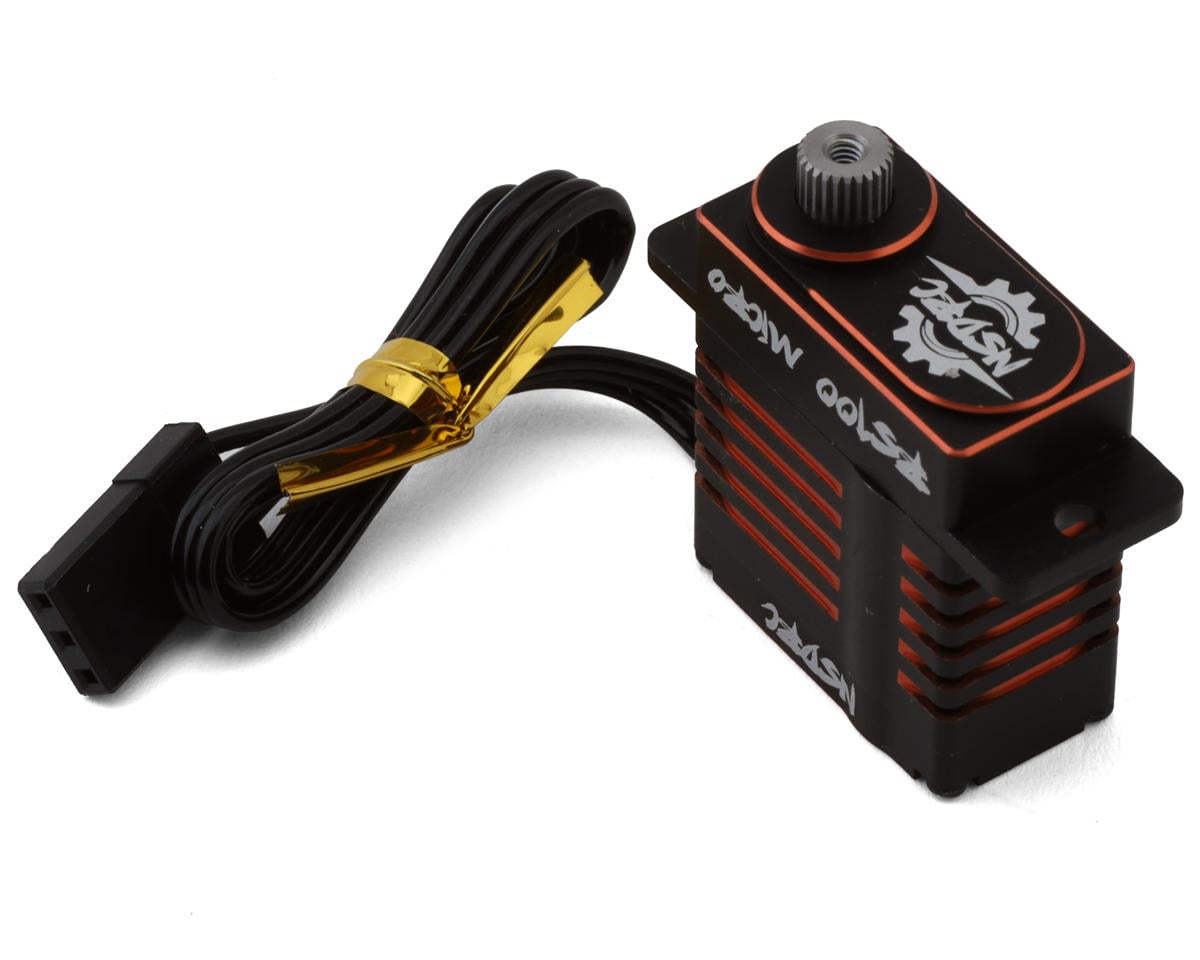

No Superior Designs RC RS100 Limited Edition Waterproof Micro Servo (HV)

The No Superior Designs RC RS100 Limited Edition Micro Servo delivers high torque in a compact, water-resistant package. It features a black and orange anodized CNC-machined aluminum case, hardened stainless steel gears, a 7-point O-ring seal, and high-voltage capability.

Features

• Black and orange anodized all CNC-machined aluminum case
• Water resistant with 7-point O-ring seal
• Hardened stainless steel gears
• High voltage (HV) capable
• 25T (4.9mm - Micro) spline

Specifications

• Type: Standard Micro
• Motor Type: Coreless
• Operating Voltage: 5V - 8.4V
• Gears: Hardened Stainless Steel
• Dimension (LxWxH): 26x23x12mm
• Weight: 20g
• Case: CNC-Machined Aluminum
• Torque: 6V: 152oz/ 11kg; 7.4V: 175oz/ 12.7kg; 8.4V: 197oz/ 14.2kg
• Speed: 6V: 0.09 sec/60°; 7.4V: 0.07 sec/60°; 8.4V: 0.06 sec/60°

Note: This servo is water resistant and not submarine proof. Do not submerge.

Includes

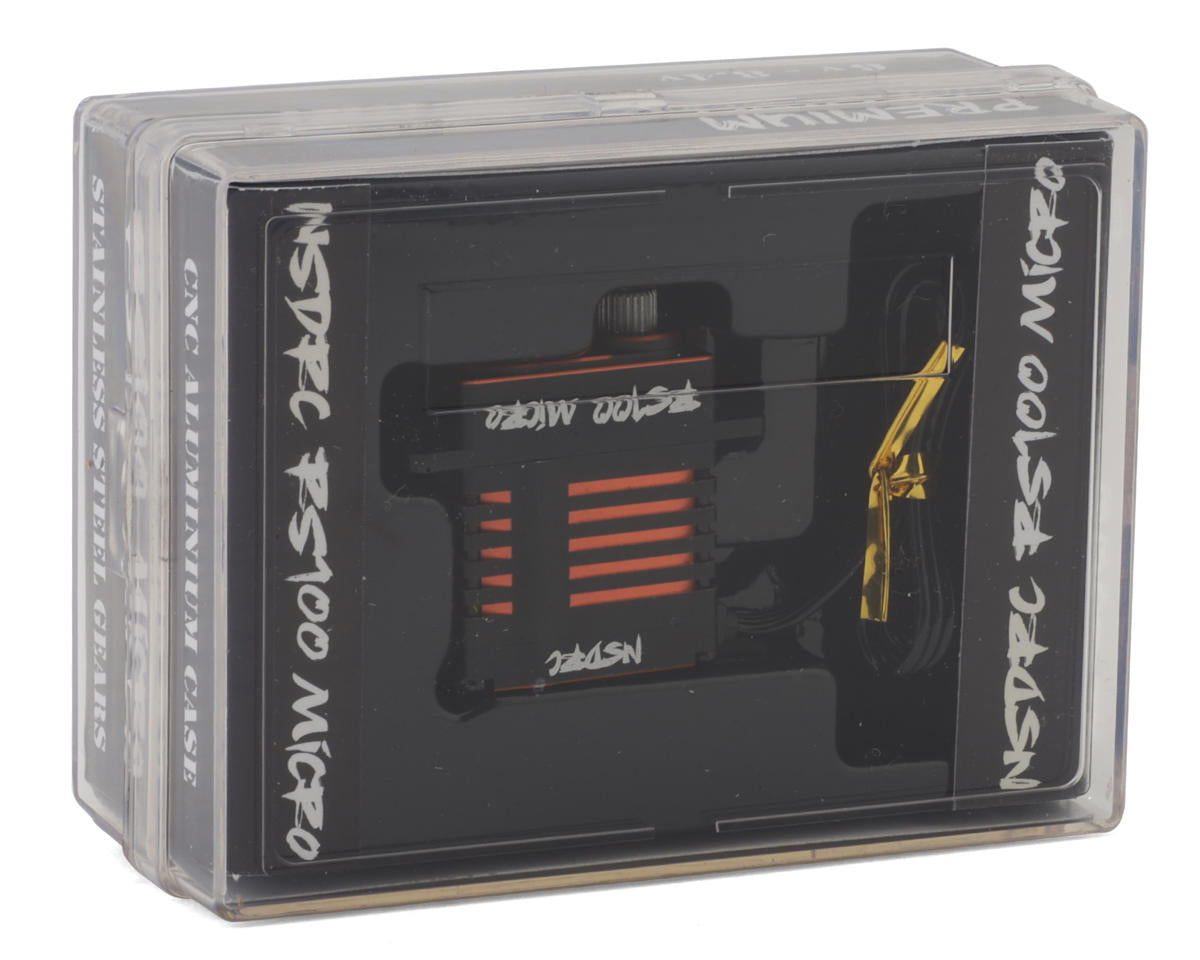

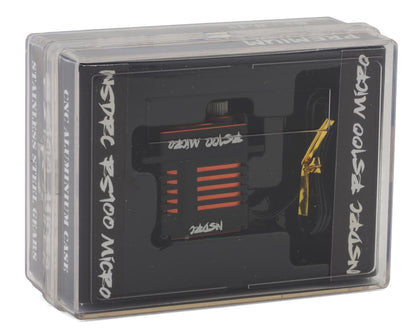

• (1) RS100 Limited Edition High Torque Micro Servo

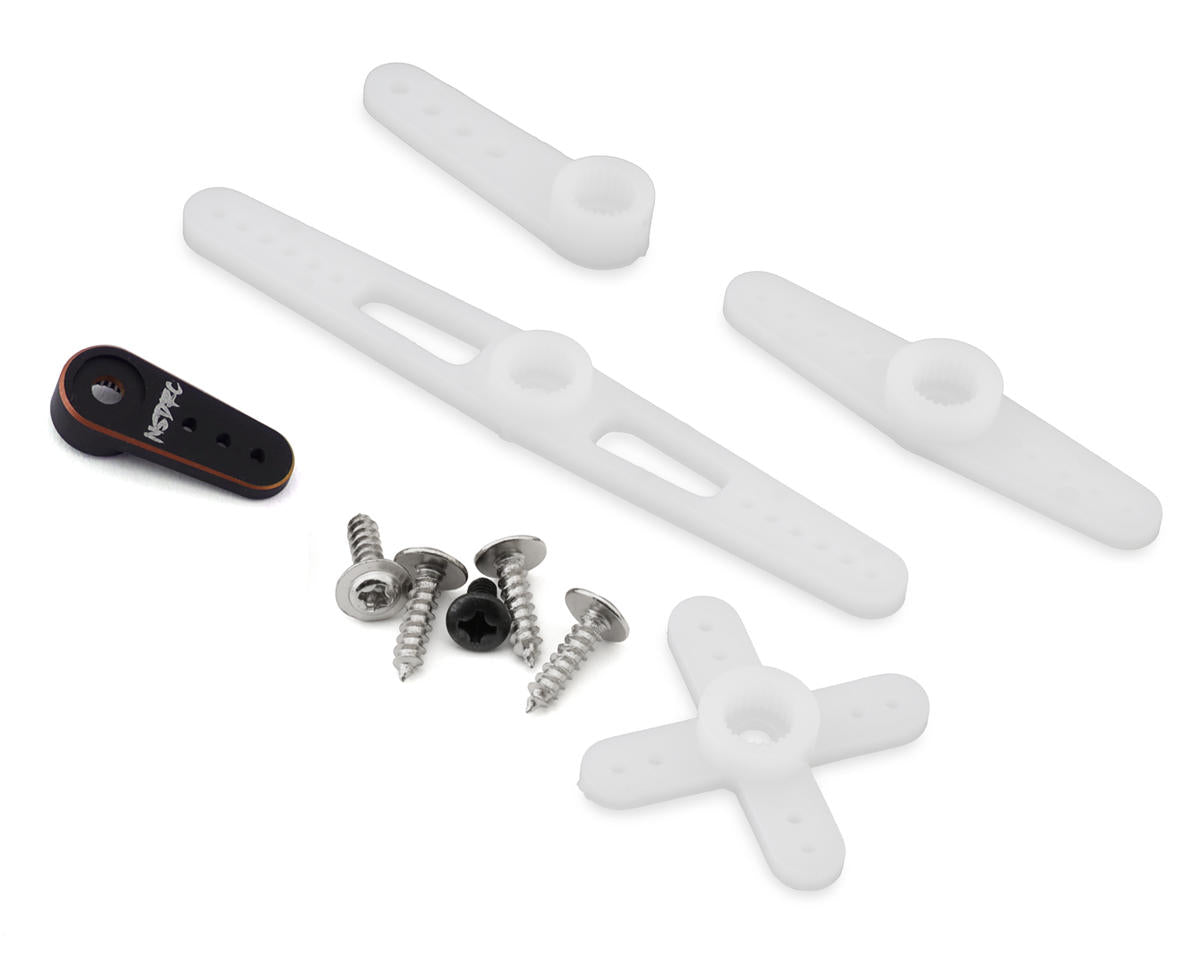

• (1) Anodized CNC-Machined micro horn
• Multiple composite horns
• Mounting screws, bushing and rubber grommets
