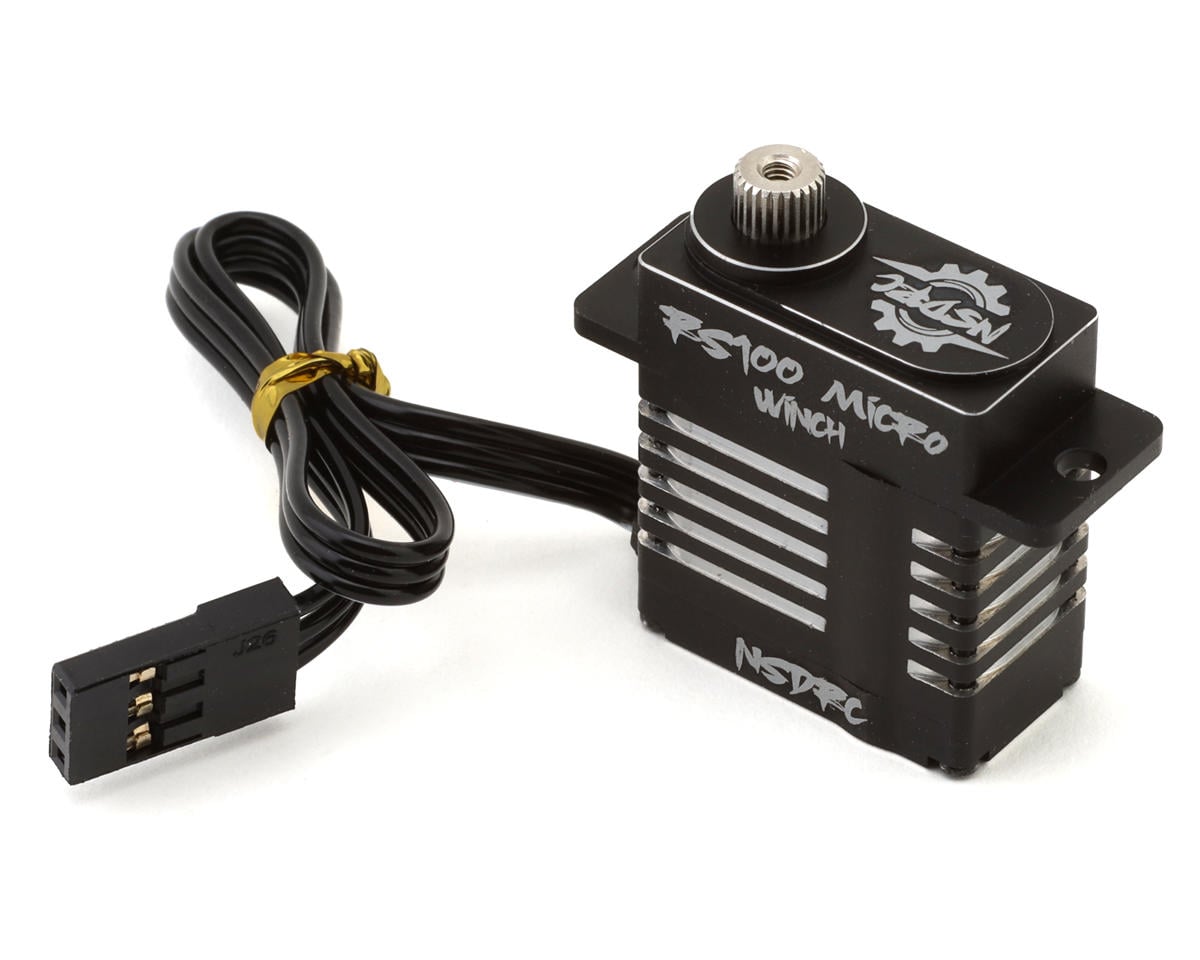

No Superior Designs RC RS100 High Torque-Speed Micro Winch Servo (High Voltage)

The No Superior Designs RC RS100 is a high torque-speed micro winch servo with a built-in controller, CNC-machined aluminum case, and high voltage capability. Its hardened stainless steel gears, CNC-machined micro spool, and magnetic angle sensor support durable operation and brake/hold performance.

Features

• Built-in controller
• Black anodized all CNC-machined aluminum case
• Water resistant with 7-point O-ring seal
• Hardened stainless steel gears
• CNC-machined micro spool
• Magnetic angle sensor for superior brake/hold
• High voltage (HV) capable

Specifications

• Type: Standard Micro
• Motor Type: Coreless
• Operating Voltage: 5V - 8.4V
• Gears: Hardened Stainless Steel
• Spline: 25T (4.9mm - Micro)
• Dimension (LxWxH): 26x23x12mm
• Weight: 20g
• Case: CNC-Machined Aluminum
• Torque: 6V: 152oz/ 11kg; 7.4V: 175oz/ 12.7kg; 8.4V: 197oz/ 14.2kg
• Speed: 6V: 0.09 sec/60°; 7.4V: 0.07 sec/60°; 8.4V: 0.06 sec/60°

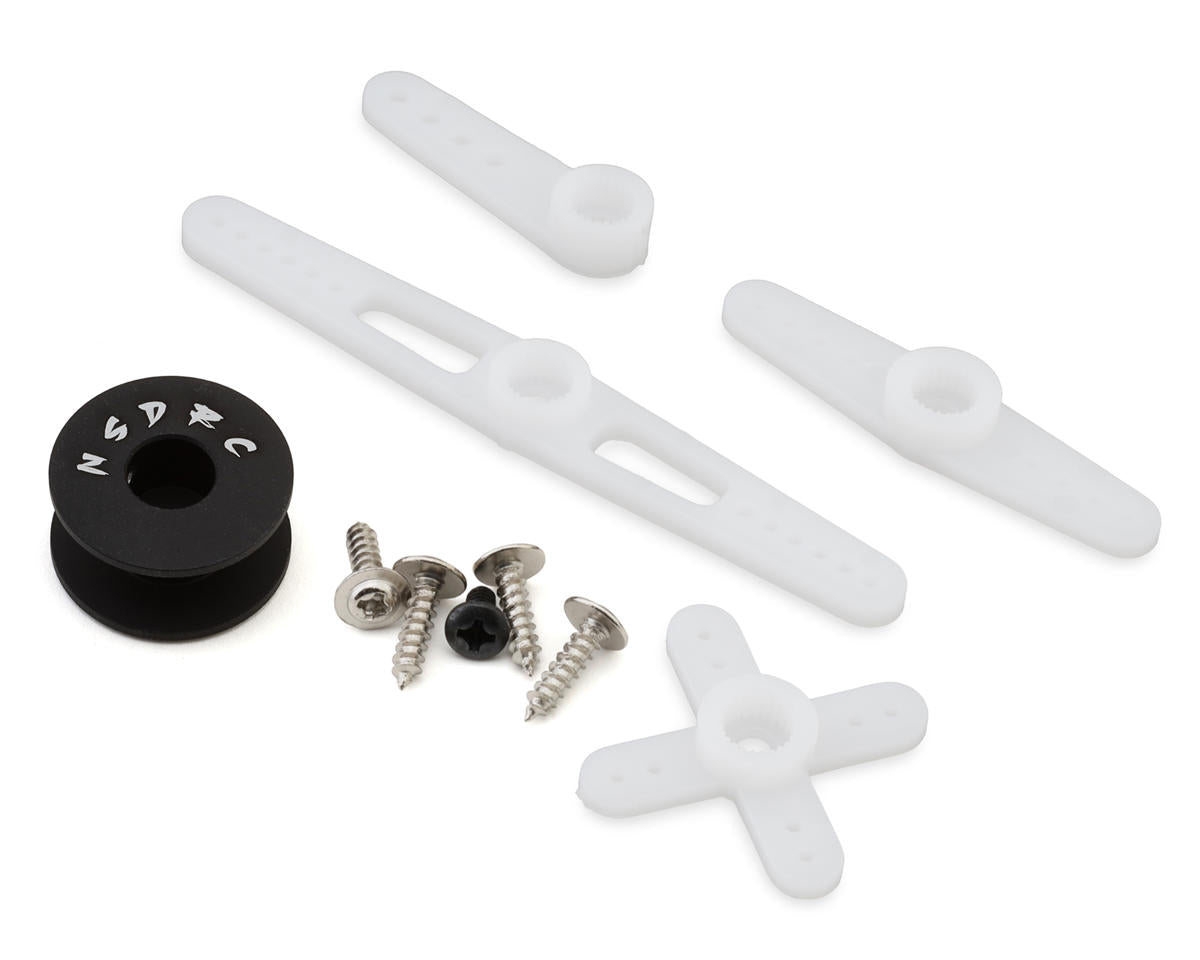

Includes

• (1) RS100 High Torque Micro Winch Servo
• (1) CNC-Machined micro spool
• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Winch line, hook, and adapter plate are sold separately. This winch servo does not work as a steering servo.
