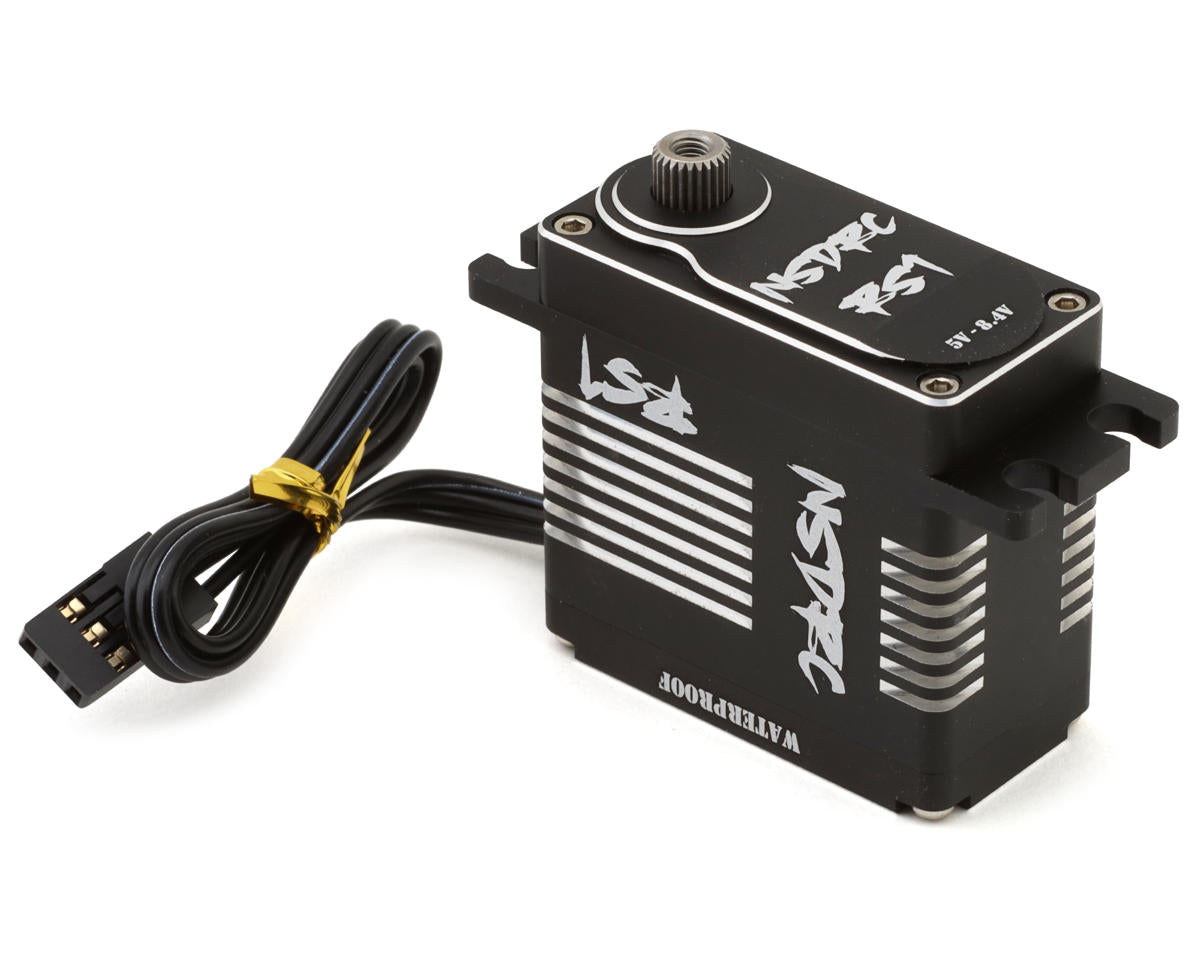

No Superior Designs RC RS1 Monster Torque Brushless Servo (High Voltage)

The No Superior Designs RC RS1 Monster Torque Brushless Servo is a high-voltage, BEC-powered servo with a 5-gear design, 4-pole brushless motor, and CNC-machined aluminum case. It features hardened stainless steel gears, dual ball bearings, an 11-point O-ring seal, and full 180 degree rotation capability.

Features

• Hardened stainless steel gears
• Black anodized CNC-machined aluminum case
• Water resistant
• 11-point O-ring seal
• 4-pole brushless motor
• Dual ball bearings design
• High voltage (HV) capable
• Capable of full 180 degree rotation

Specifications

• Type: Standard
• Motor Type: Brushless
• Operating Voltage: 5V - 8.4V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimension (LxWxH): 40x38.7x20mm
• Weight: 89g
• Case: CNC-Machined Aluminum
• Torque: 6V: 900oz/ 64kg; 7.4V: 1100oz/ 79kg; 8.4V: 1200oz/ 87kg
• Speed: 6V: 0.14 sec/60°; 7.4V: 0.11 sec/60°; 8.4V: 0.09 sec/60°

Includes

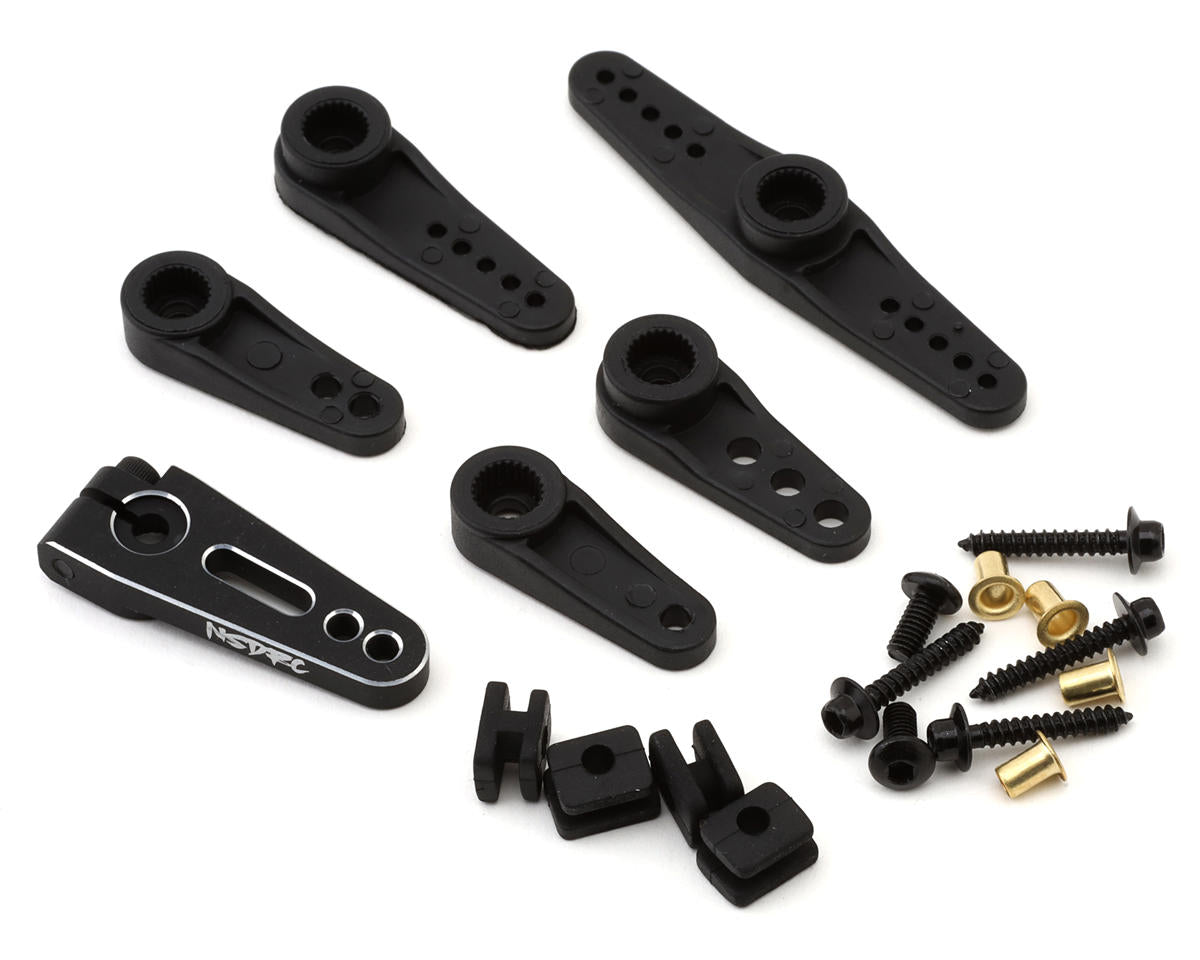

• (1) RS1 Monster Torque Brushless Servo
• (1) 25T CNC-Machined Aluminum horn
• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Power Requirements

Requires a Castle 10 amp BEC or better. A low amp output ESC may not power this servo sufficiently. For use with Spektrum receivers, a receiver bypass harness is recommended because some Spektrum receivers cannot handle higher amp draw and may fail or cause damage to the servo.
