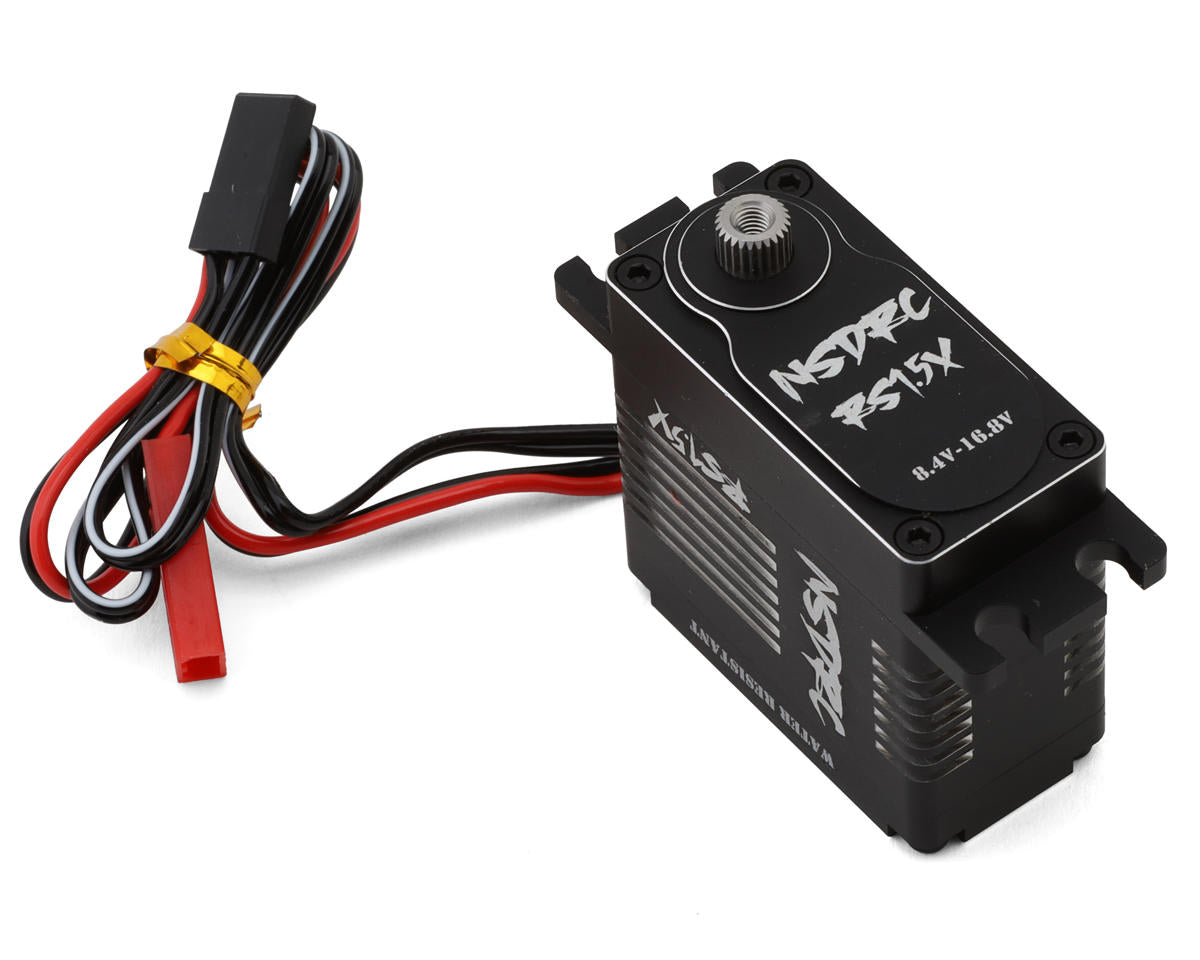

No Superior Designs RC RS1.5X Extreme Torque Brushless Servo (HV) (High-Torque)

The No Superior Designs RC RS1.5X Extreme Torque Brushless Servo is a high-voltage surface servo with a custom 4-pole brushless motor, a 5-gear drivetrain, and up to 1550oz-in of dynamic torque at 16.8V. Its CNC-machined aluminum case, hardened steel gears, and waterproof design support dependable operation in demanding conditions.

Features

• Up to 1550oz-in of extreme torque
• Custom 4-pole brushless motor
• 5-gear drivetrain
• CNC-machined aluminum case
• Hardened steel gears
• Waterproof design
• High-voltage operation up to 16.8V

Specifications

• Application: Surface
• Input Voltage: 8.4-16.8V
• Operating Speed @ 8.4V: .18sec/60°
• Operating Speed @ 16.8V: 0.09sec/60°
• Dynamic Torque @ 8.4V: 965oz-in (69.48kg-cm)
• Dynamic Torque @ 16.8V: 1550oz-in (111.61kg-cm)
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Gear Material: Metal
• Dimensions: 1.96x0.787x1.52in (50x20x38.7mm)
• Weight: 3.228oz (91.5g)

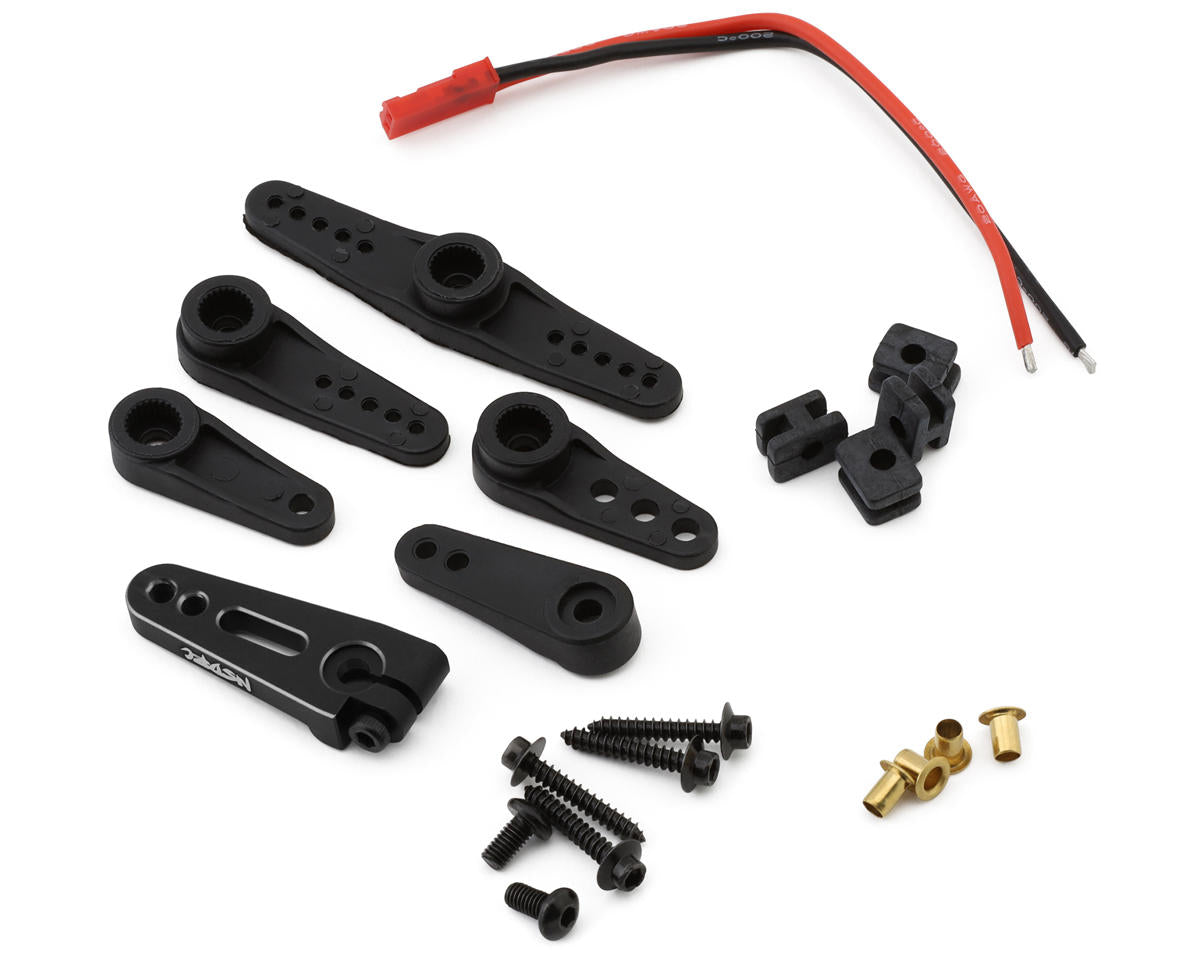

Includes

• (1) RS1.5X Extreme Torque Brushless Servo (HV)
