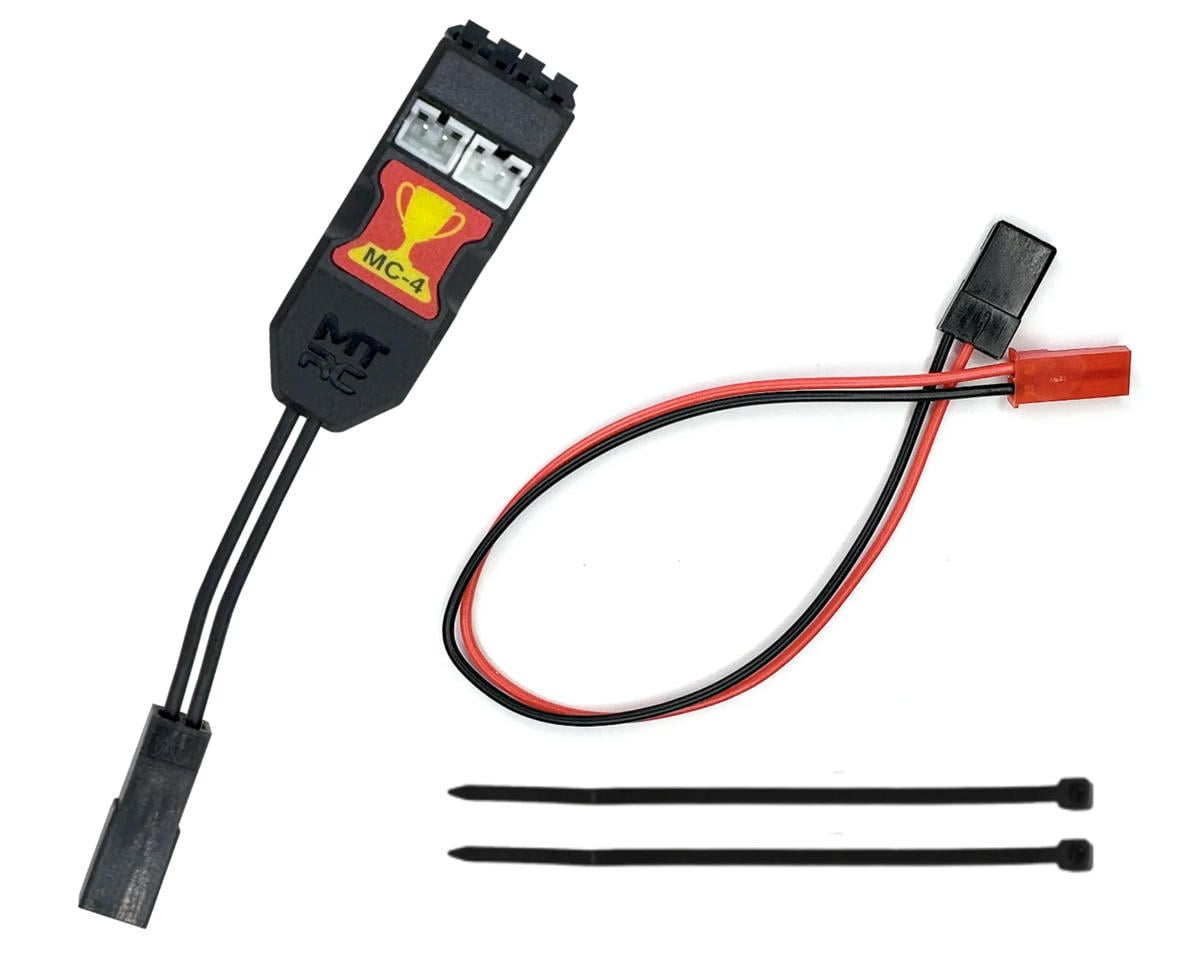

MyTrickRC MC-4 Light Controller

The MyTrickRC MC-4 Light Controller powers Attack Lighting and standard LEDs from your vehicle’s receiver. It includes two black high-power ports and two white low-power ports for different lighting setups.

Features

• Plug-and-play design
• Durable construction
• Rugged case for added protection
• 4.9VDC output from high-power ports
• 2.7VDC output from low-power ports

Specifications

• Input voltage: 4.5-17VDC
• High-power port output: 4.9VDC +/-0.1V, 1.2Amp MAX
• Low-power port output: 2.7VDC +/-0.1V, 0.1Amp MAX

Includes

• (1) MC-4 Lighting Controller
• (1) Receiver Power Cable

Important Notes

• Do not plug 3mm and 5mm LEDs into the black high-power ports; they will burn out immediately.
• Do not connect more lights than your receiver and ESC are rated for.
