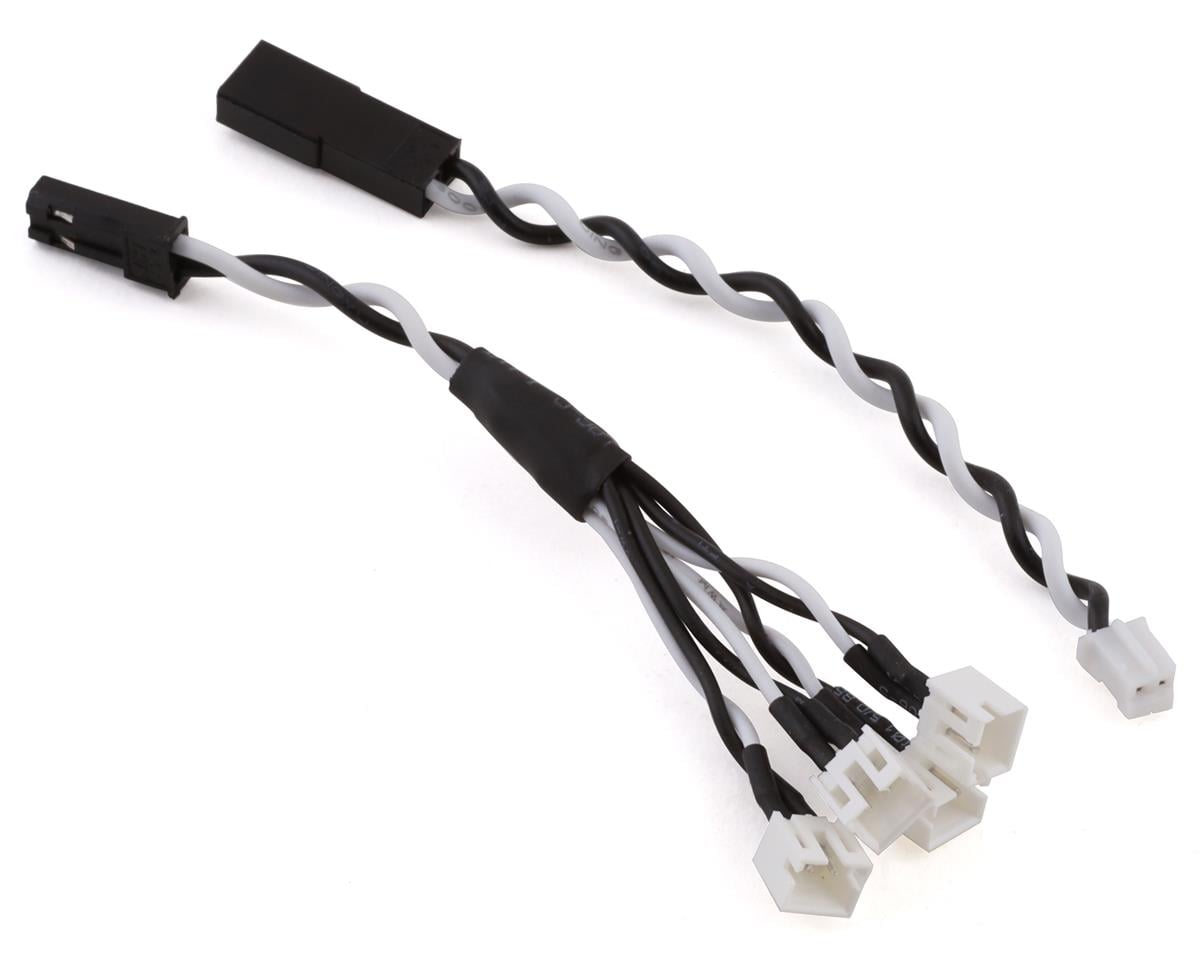

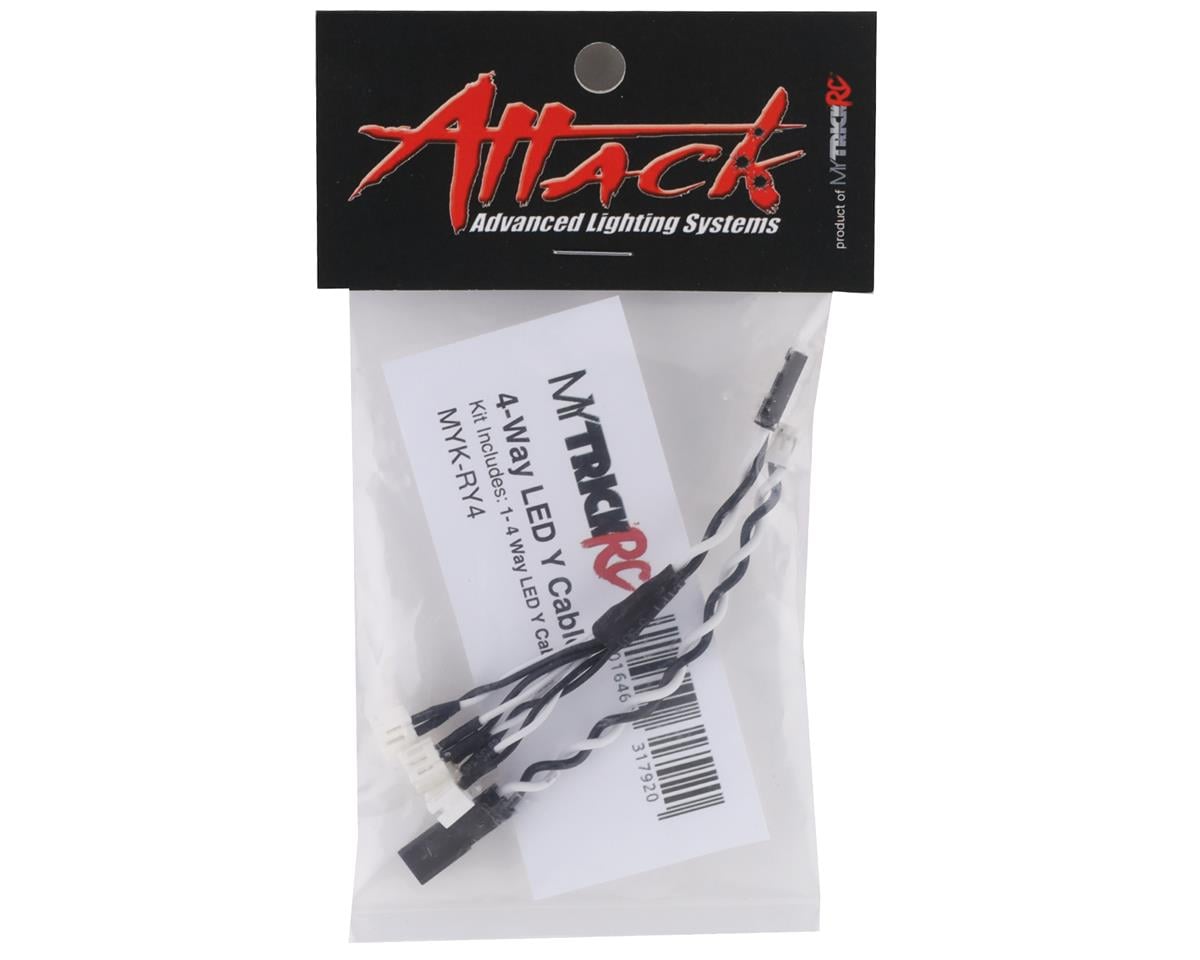

MyTrickRC Four Way LED Splitter Cable

The MyTrickRC Four Way LED Splitter Cable connects four LEDs to one controller port, making it suitable for expanding a lighting system with chassis-mounted rock lights and other compatible lighting accessories.

Features

• Four-way splitter for connecting LEDs to one controller port
• In-line Quick Disconnect for separating the body from the chassis
• Compatible with all MyTrickRC Controllers
• Works with Standard 3mm and 5mm LEDs, Attack Light Bars, Rock Lights, Spot Lights, Wafer Headlights, and Halos
• Can be used with DG-1 or UF-7C controllers

LED Compatibility

• Group A: RED, ORANGE, and AMBER LEDs are compatible with each other.
• Group B: WHITE, BLUE, and GREEN LEDs are compatible with each other.
• Groups A and B are not compatible with each other. If combined, only the Group A LED will turn on.

Usage Notes

• When used with Attack Lighting, do not connect more than Two Light Bars, or 4 pairs of Attack Headlights, Rock Lights, Spot Lights, Halos, or Wafer LEDs to this cable, or you risk overheating it.
• When used with a UF-7C controller, a Standard Light Bar Regulator is also required to help prevent Rock Lights from receiving too high of voltage.
