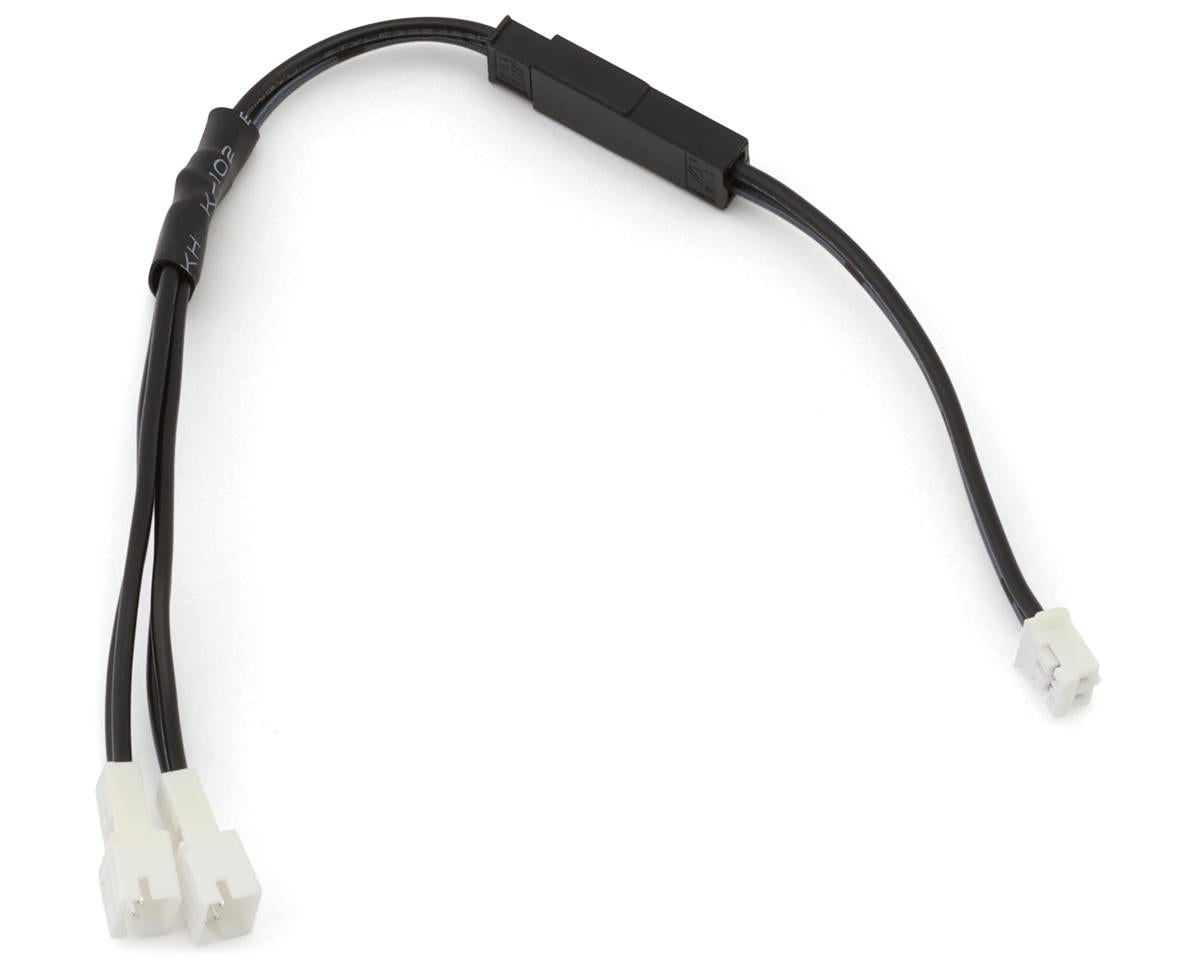

MyTrickRC 2-Way LED Splitter w/Quick Disconnect

The MyTrickRC 2-Way LED Splitter with Quick Disconnect connects two LEDs to a single MyTrickRC Lighting Controller port. Its parallel wire layout supports tidy installations on 1/10th and 1/18th scale RC vehicles.

Features

• Connects two LEDs to a single controller

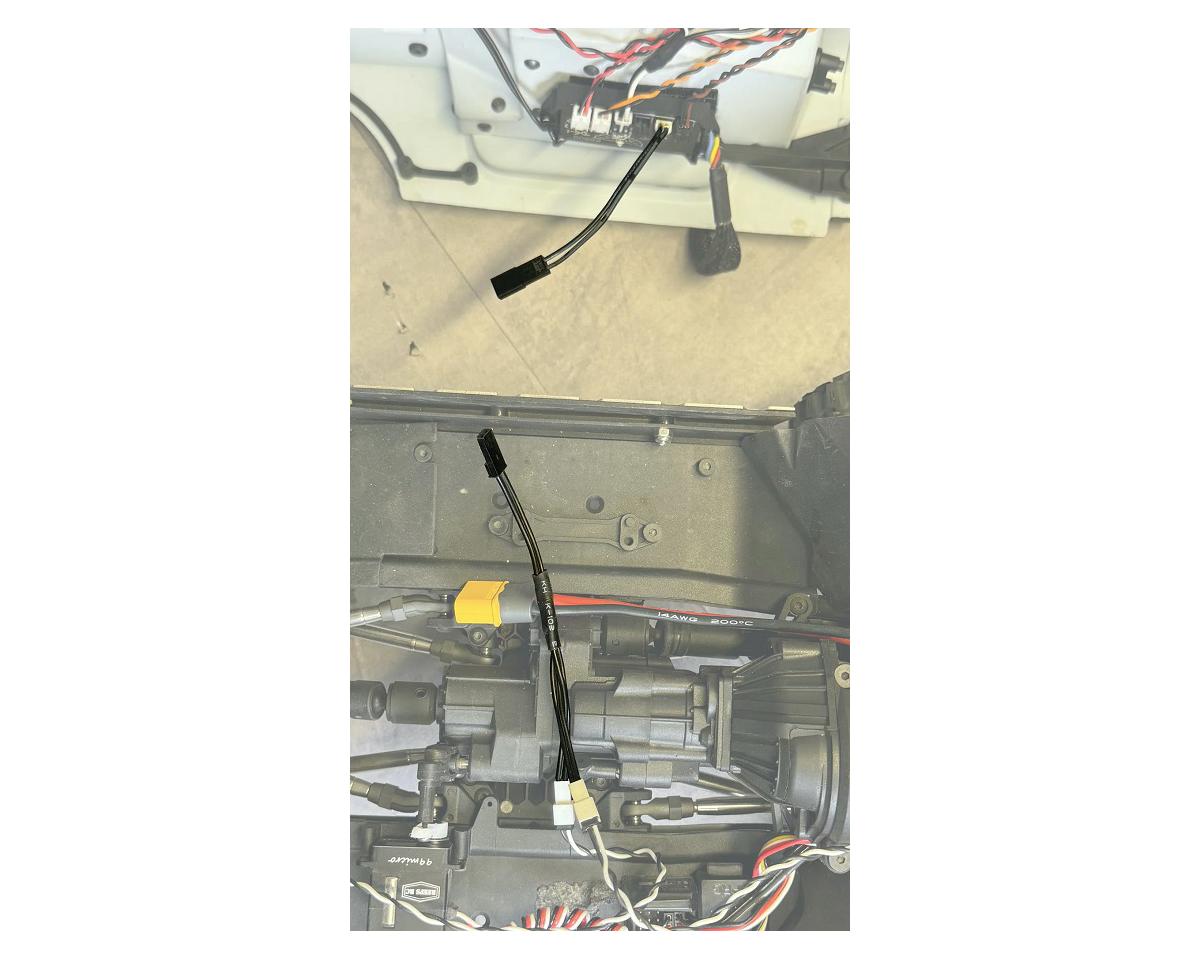

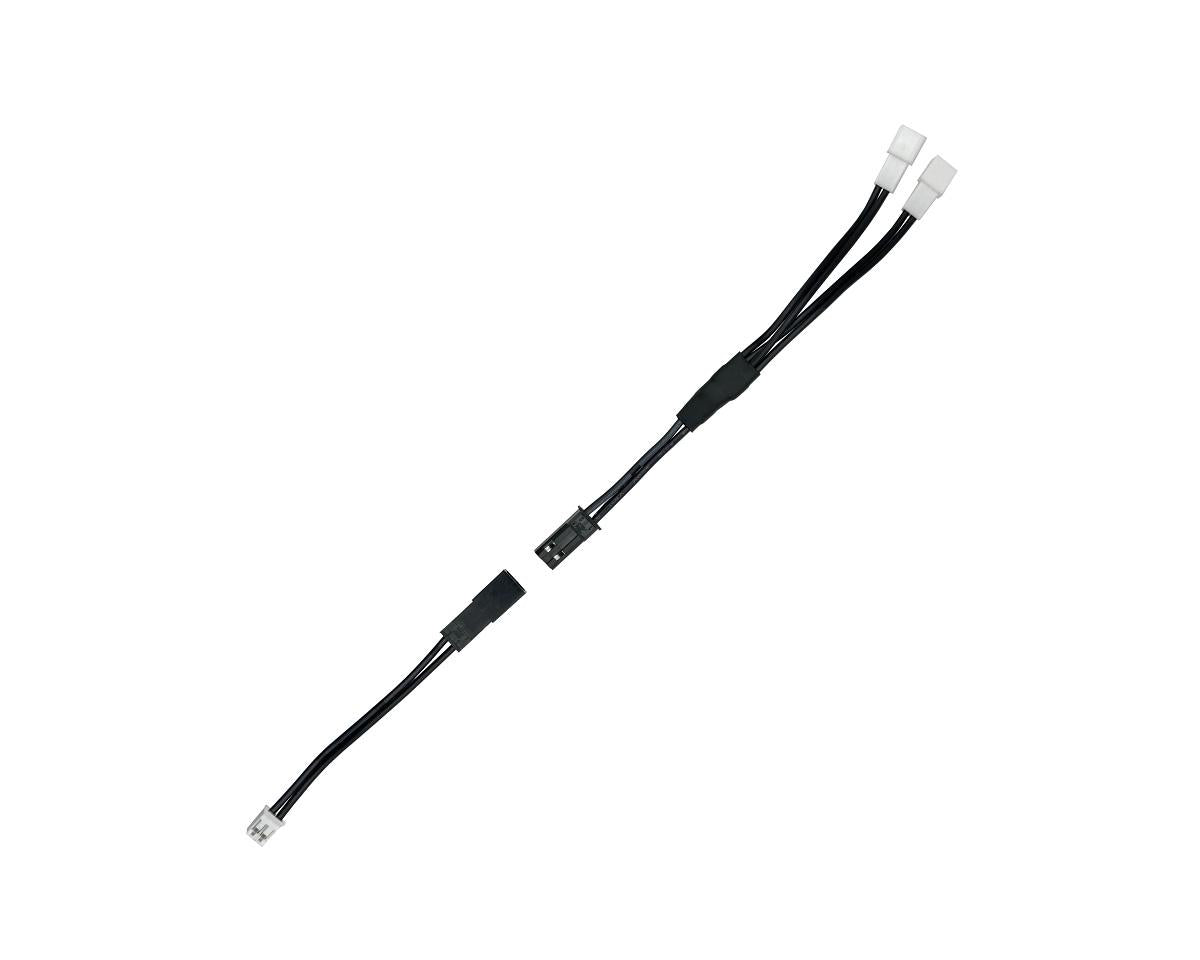

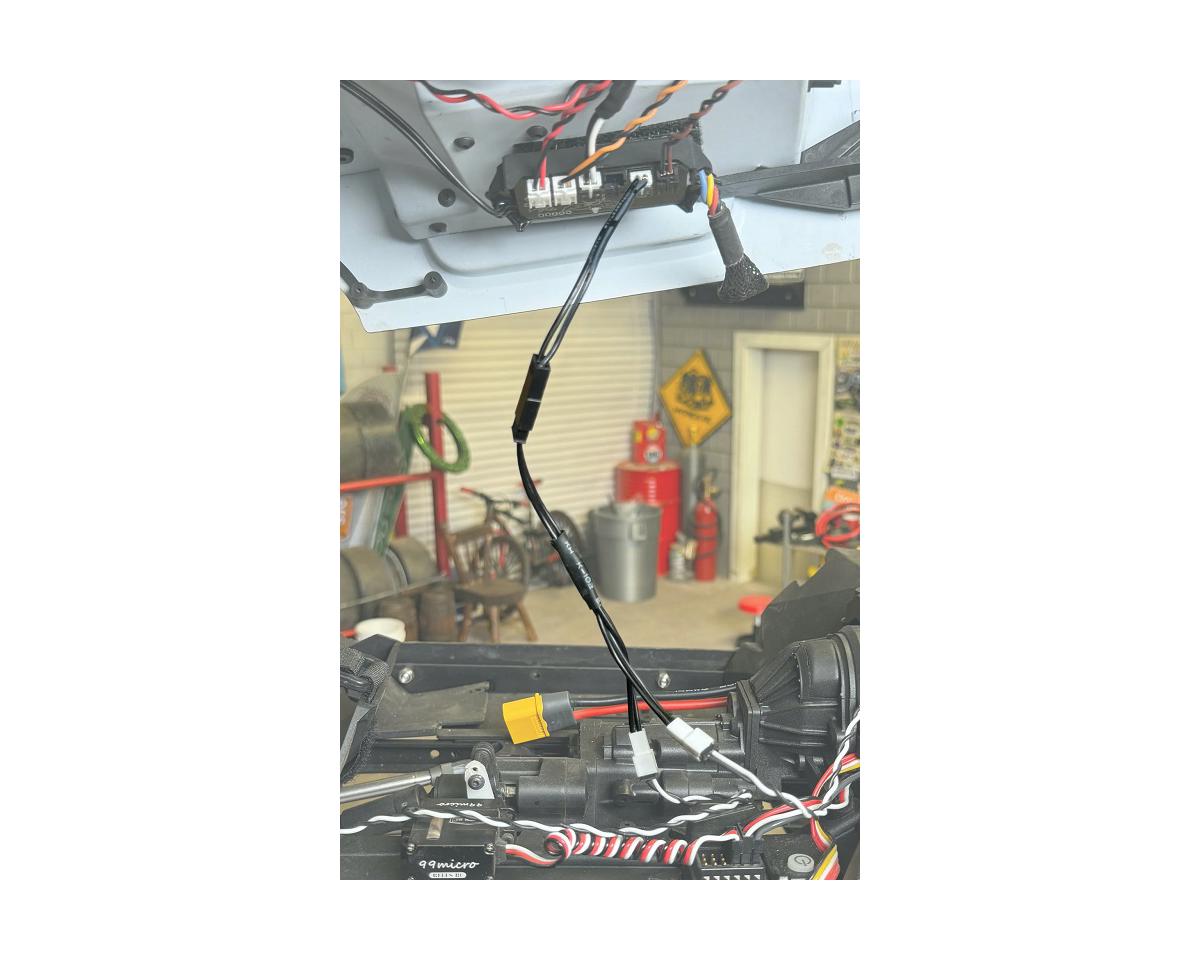

• Quick Disconnect lets you separate the vehicle body from the chassis without unplugging each individual light
• Compatible with standard and high-power LEDs, including light bars, pods, and halos
• Clean parallel wire design

Technical Notes

• Supports two LED groups: Group A (Red, Orange, Amber) and Group B (White, Blue, Green)
• Group A and Group B are not cross-compatible due to differing voltage requirements. Mixing them will result in only Group A lighting up.
• The UF-7C Controller requires a Standard Light Bar Regulator (MYKPAL2, sold separately) to prevent overvoltage damage to Rock Lights.
• For safety, do not connect more than two Light Bars or four pairs of high-power LEDs.

Includes

• (1) 2-Way LED Splitter w/Quick Disconnect
