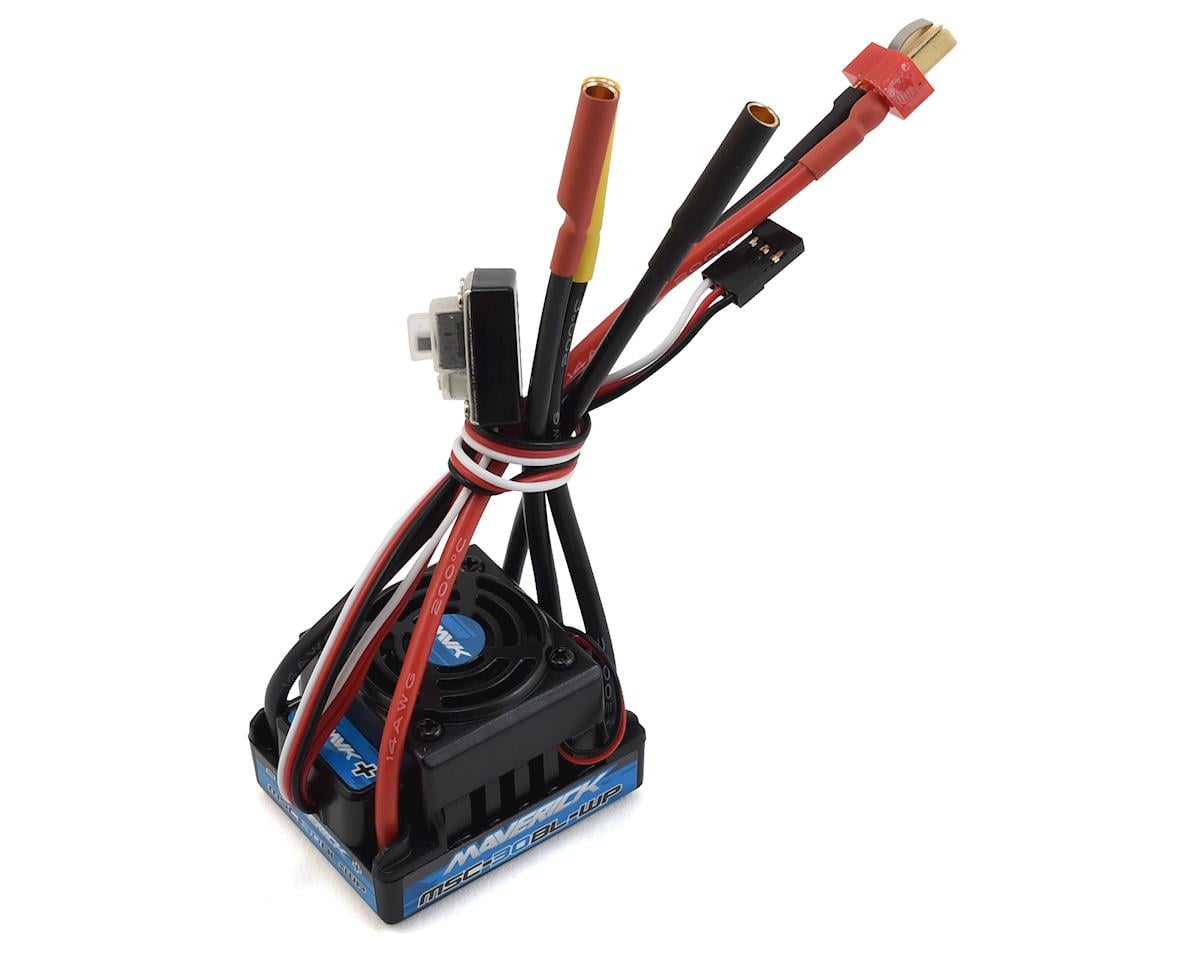

Maverick MSC-30BL-WP 1/10 Brushless ESC

The Maverick MSC-30BL-WP is a programmable 1/10 brushless-sensorless ESC intended as a replacement for Maverick 1/10 Strada Brushless platforms. It can also upgrade a standard 1/10 Strada Brushed series when used with a brushless motor.

It supports 2-3S LiPo or 5-9 cell NiMH/NiCd batteries and includes protection for low voltage, overheating, throttle-signal loss, and a blocked motor. The ESC is water-resistant and dustproof for use in wet conditions.

Features

• Two running modes: forward with brake, or forward and reverse with brake
• Proportional ABS brake function with four steps of maximum brake force adjustment
• Four punch modes from “soft” to “very aggressive”
• Eight steps of drag-brake force adjustment
• Easily programmed with the “Set” button
• 2-3S LiPo capable
• Designed to work in wet conditions

Specifications

• Suggested application: 1/10
• Motor type: Brushless-Sensorless
• Input voltage: 2-3S LiPo, 5-9 Cell NiMH/NiCd
• Continuous current: 45A
• Burst current: 220A
• Dimensions: 1.91x1.5x1.26in (48.5x38x32mm)
• Weight: 3.17oz (90g)
• BEC voltage: 6V-7.4V
• BEC continuous current: 2A
• BEC peak current: -
• Motor connector: 4.0mm Bullet
• Battery connector: T-Plug
• Motor wire: 14AWG
• Battery wire: 14AWG
• Throttle wire: -
• Programmable: Yes

Motor Limits

• 2S LiPo (6-Cell NiMH), on-road: >9T - 3650 size motor
• 2S LiPo (6-Cell NiMH), off-road: >12T - 3650 size motor
• 3S LiPo (9-Cell NiMH), on-road: >12T - 3650 size motor
• 3S LiPo (9-Cell NiMH), off-road: >18T - 3650 size motor

Important Notes

• When using a 3S LiPo or 7-9 cell NiMH battery, change the standard 5V cooling fan to a 12V cooling fan, or supply the 5V cooling fan from the receiver (5-6V).
• Remove the cooling fan before operating the ESC in very wet conditions.
• After running in wet conditions, clean and dry the ESC to help avoid oxidation to copper connectors.

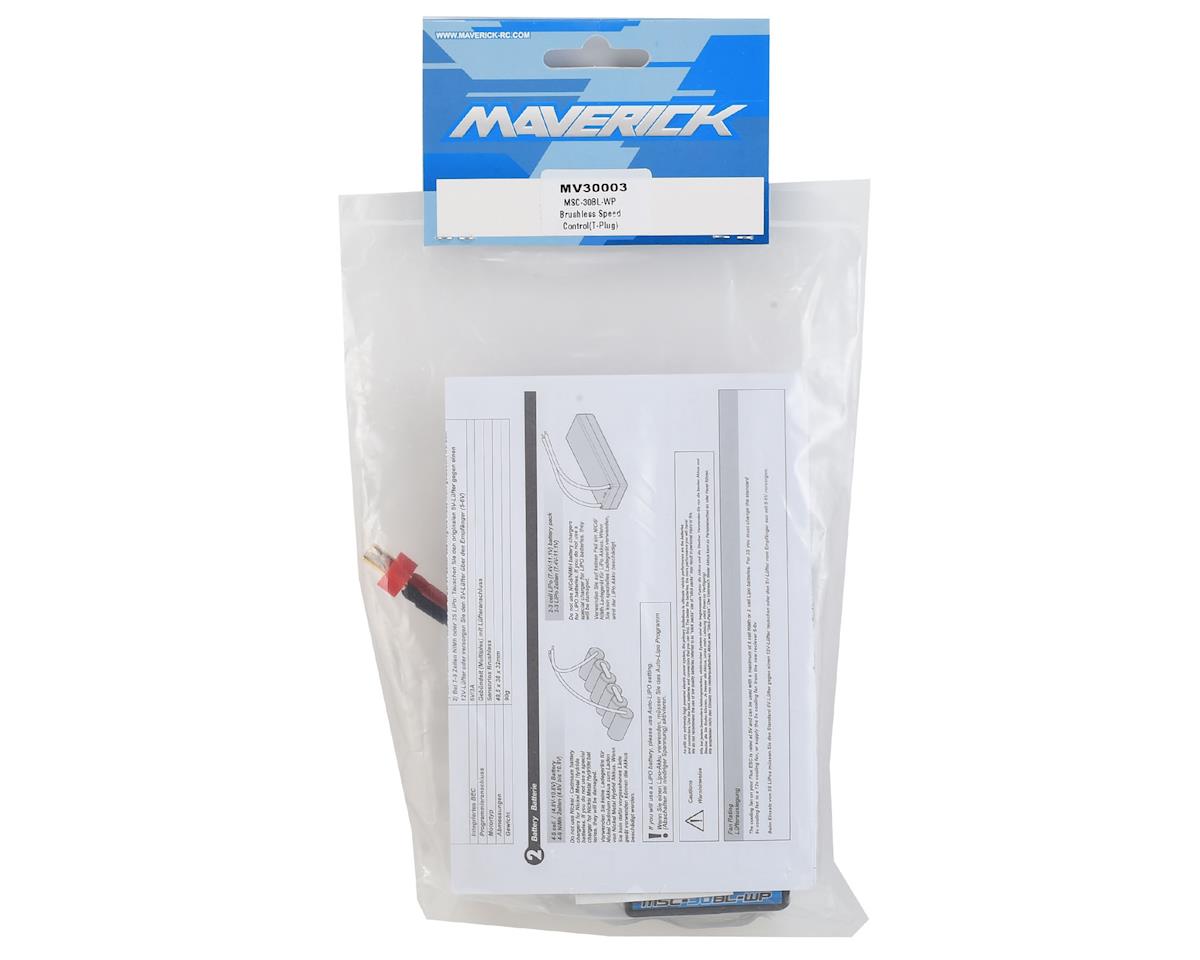

Includes

• (1) Maverick MSC-30BL-WP 1/10 Brushless ESC
• Product Manual
