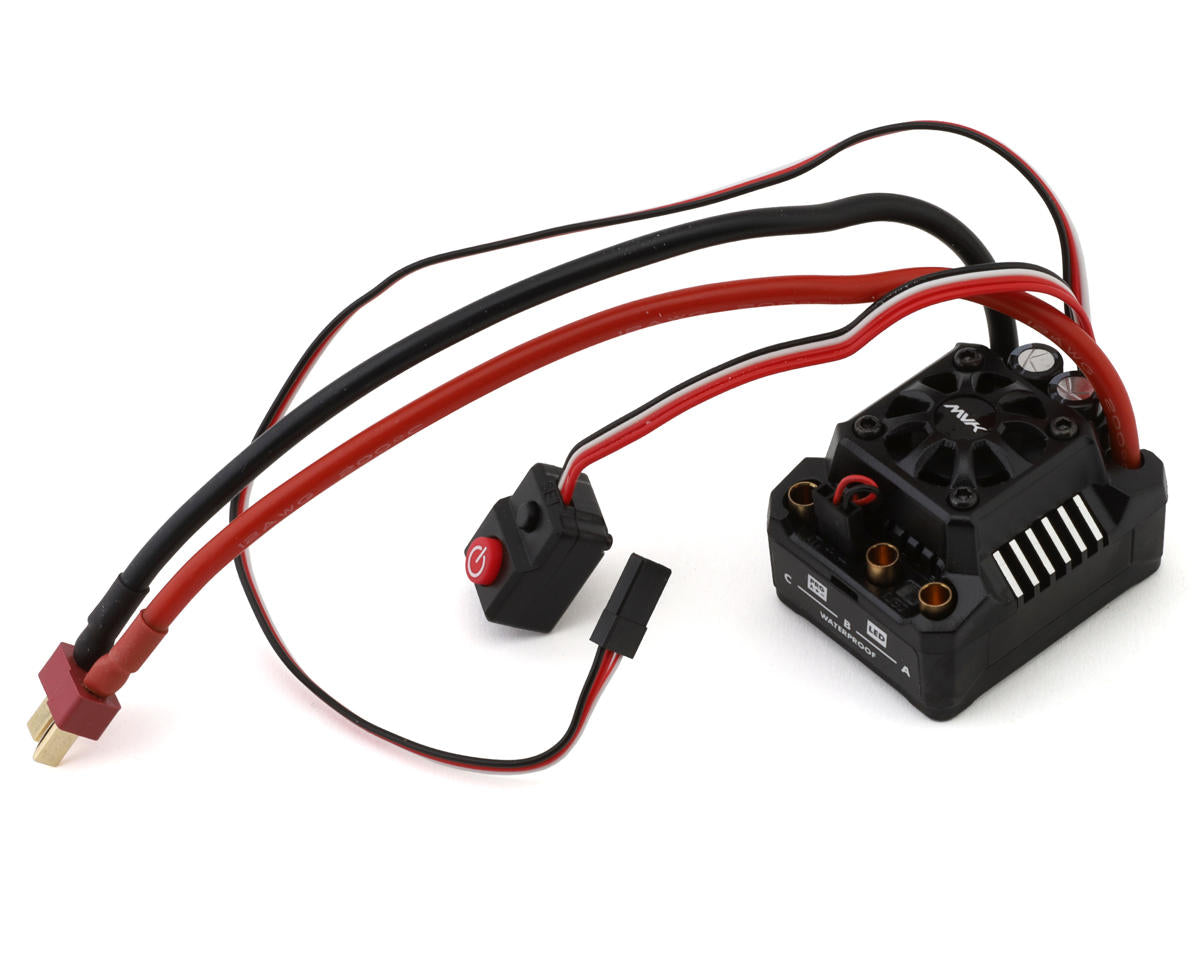

Maverick FLX10-4S120 Flux Brushless ESC

The Maverick FLX10-4S120 Flux Brushless ESC is a replacement ESC for the Maverick QuantumR Flux 1/8 4S 4WD Brushless RTR Electric Race Truck. It is also suited to other 1/8-1/10 scale applications requiring 120A of continuous current.

Features

• Brushless-sensorless motor type
• Supports 2-4S LiPo batteries with a 7.4V-14.8V input range
• 120A continuous current and 830A burst current
• Heatsink and cooling fan
• Water resistant and dustproof design
• Programmable throttle response, braking power, and motor timing
• Compatible with the HPI Flux Reload Program Box V3 (HPI160014), sold separately
• Pre-soldered connectors
• Designed for the Flux series and compatible with various on-road and off-road vehicles

Specifications

• Suggested Application: 1/8-1/10
• Motor Type: Brushless-Sensorless
• Input Voltage: 2-4S LiPo
• Continuous Current: 120A
• Burst Current: 830A
• Dimensions: 1.93x1.56x1.37in (49x39.5x34.7mm)
• Weight: 3.7oz (105g)
• Motor Limits: 2S LiPo: 6000kV; 3S LiPo: 4000kV; 4S LiPo: 3000kV
• BEC Voltage: 6V-7.4V
• BEC Continuous Current: 4A
• BEC Peak Current: -
• Motor Connector: 4.0mm Bullet
• Battery Connector: T-Plug
• Motor Wire: 12AWG
• Battery Wire: 12AWG
• Throttle Wire: -
• Programmable: Yes

Includes

• (1) Maverick FLX10-4S120 Flux Brushless ESC
• Product Manual
