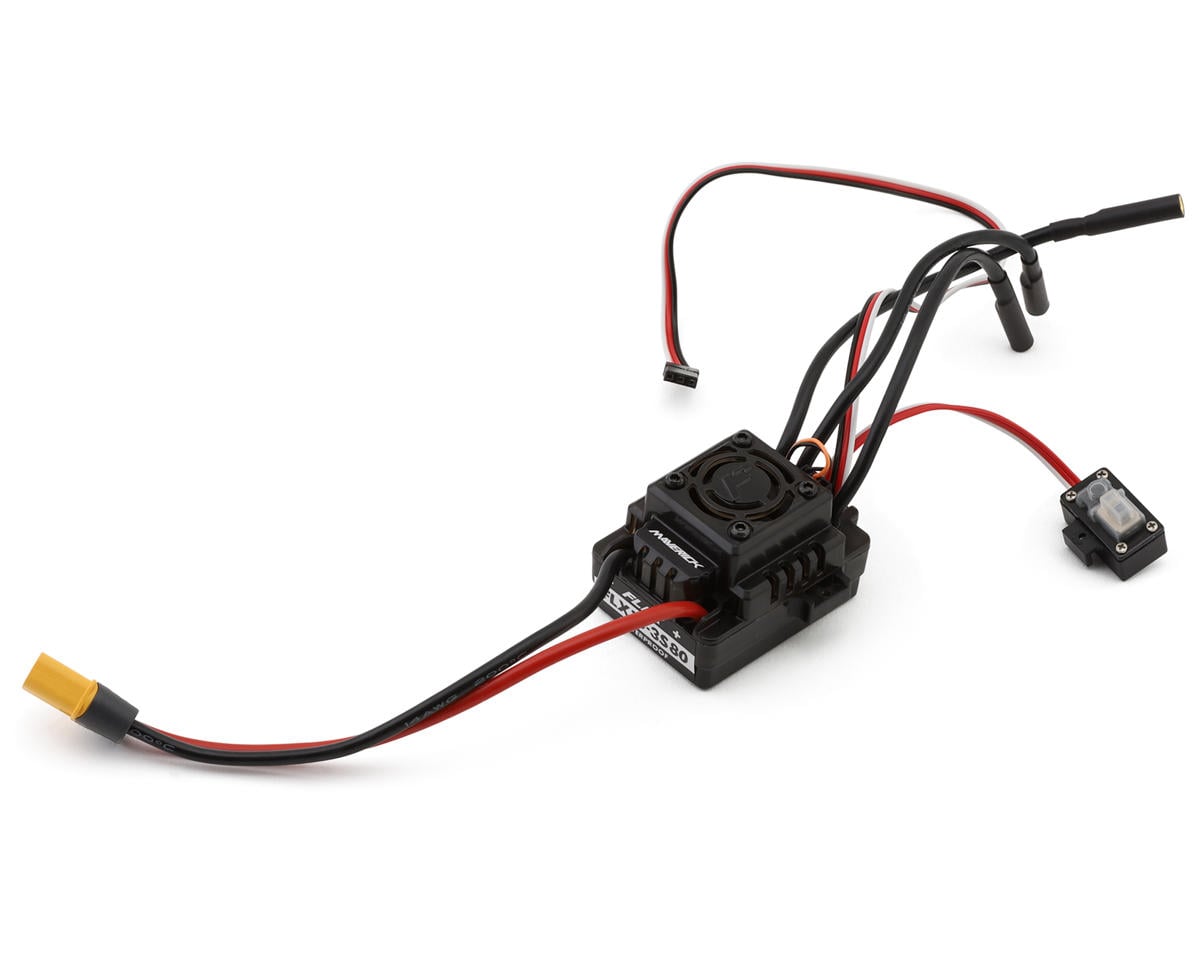

Maverick FLX10-3S80 Flux 1/10 Brushless ESC w/XT60 Connector

The Maverick FLX10-3S80 Flux 1/10 Brushless ESC with XT60 Connector is a replacement ESC for Maverick 1/10 Quantum Flux 80A MT and XT vehicles, as well as Quantum2 Flux Brushless 1/10 4WD platforms. It is designed for brushless-sensorless motors and is a match for the Maverick MM-3660-BL 3300KV 1/10th scale brushless motor, available separately.

Features

• Supports 2S or 3S LiPo batteries
• 80A continuous current and 540A burst current
• Programmable settings
• Built-in switch BEC with 2A continuous current at 6V
• Heatsink and cooling fan with protective cover
• Water-resistant and dustproof design

Specifications

• Suggested Application: 1/10
• Motor Type: Brushless-Sensorless
• Input Voltage: 2-3S LiPo
• Continuous Current: 80A
• Burst Current: 540A
• Dimensions: 1.99x2.21x1.39in (50.5x56.2x35.4mm)
• Motor Limits: 2S LiPo: <600kV; 3S LiPo: <400kV
• BEC Voltage: 6V-7.4V
• BEC Continuous Current: 2A
• Motor Connector: 4.0mm Bullet
• Battery Connector: T-Plug
• Motor Wire: 14AWG
• Battery Wire: 14AWG
• Programmable: Yes

Includes

• (1) Maverick FLX10-3S80 Flux 1/10 Brushless ESC with XT60 Connector
• Product Manual
