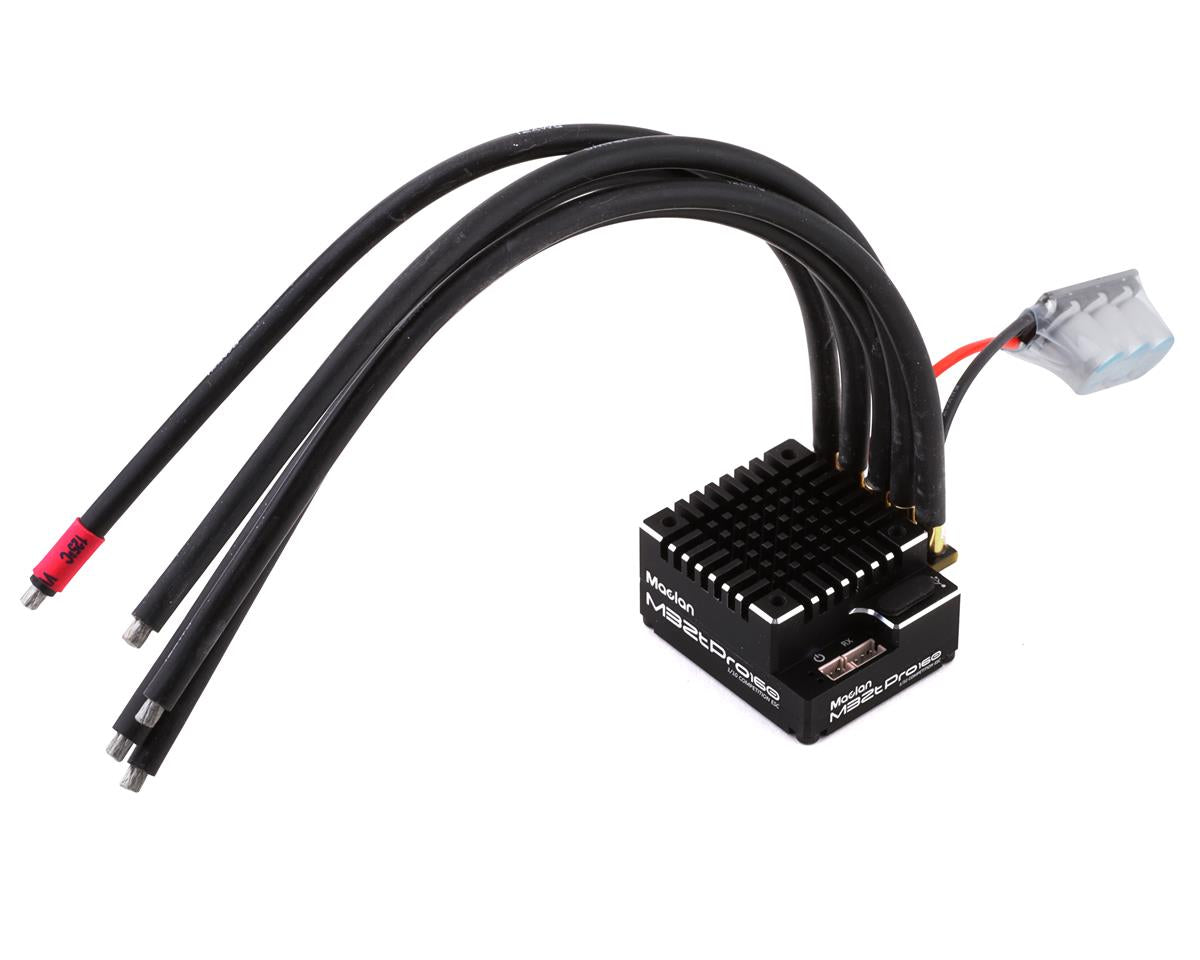

Maclan M32T Pro160 2S Brushless Competition ESC

The Maclan M32T Pro160 2S Brushless Competition ESC is designed for 1/10 on-road and off-road applications. It is not recommended for no-prep drag racing; use in drag racing applications will affect the limited factory warranty.

Built on Maclan Racing's 32-bit platform, the M32T Pro160 features an all-aluminum case, upgraded memory for HD data logging, a USB Type-C connector, and refined throttle and brake algorithms. Dynamic Brake PWM provides two brake PWM stages that can be configured for track conditions. The ESC is also Wireless Link Ready for use with the separately sold Maclan Racing Wireless Link and Smart Link App.

Features

• Super speed 32-bit CPU with 5-stage pipeline
• All-aluminum case for thermal performance and durability
• 2X memory capacity for HD data logging
• USB Type-C connector
• Dynamic Brake PWM with two adjustable brake PWM stages
• Sensored and Smart Sensorless operation
• Wireless Link Ready
• Includes a 30x30x10mm HV turbo fan with direct battery voltage power

Specifications

• Scale: 1/10th
• Continuous Current: 160A
• MOSFET Rated Current: 400A/phase
• Power Input: 2S Li-Po
• Motor Limit: 2-Pole 3.5T (4-Pole motors are not supported)
• BEC Output: Linear Mode 6V to7.4V, 4A
• Input Wires: Black-12AWG-200mm*2
• Output Wires: Black-12AWG-200mm*3
• Net Weight: 45g (w/o wires and capacitor module)
• Dimension: 38x30x19mm (w/o cooling fan)

Includes

• Maclan M32t Pro160 ESC with factory pre-soldered wires and capacitor module
• Maclan ESC receiver cable 20cm (MCL4243)

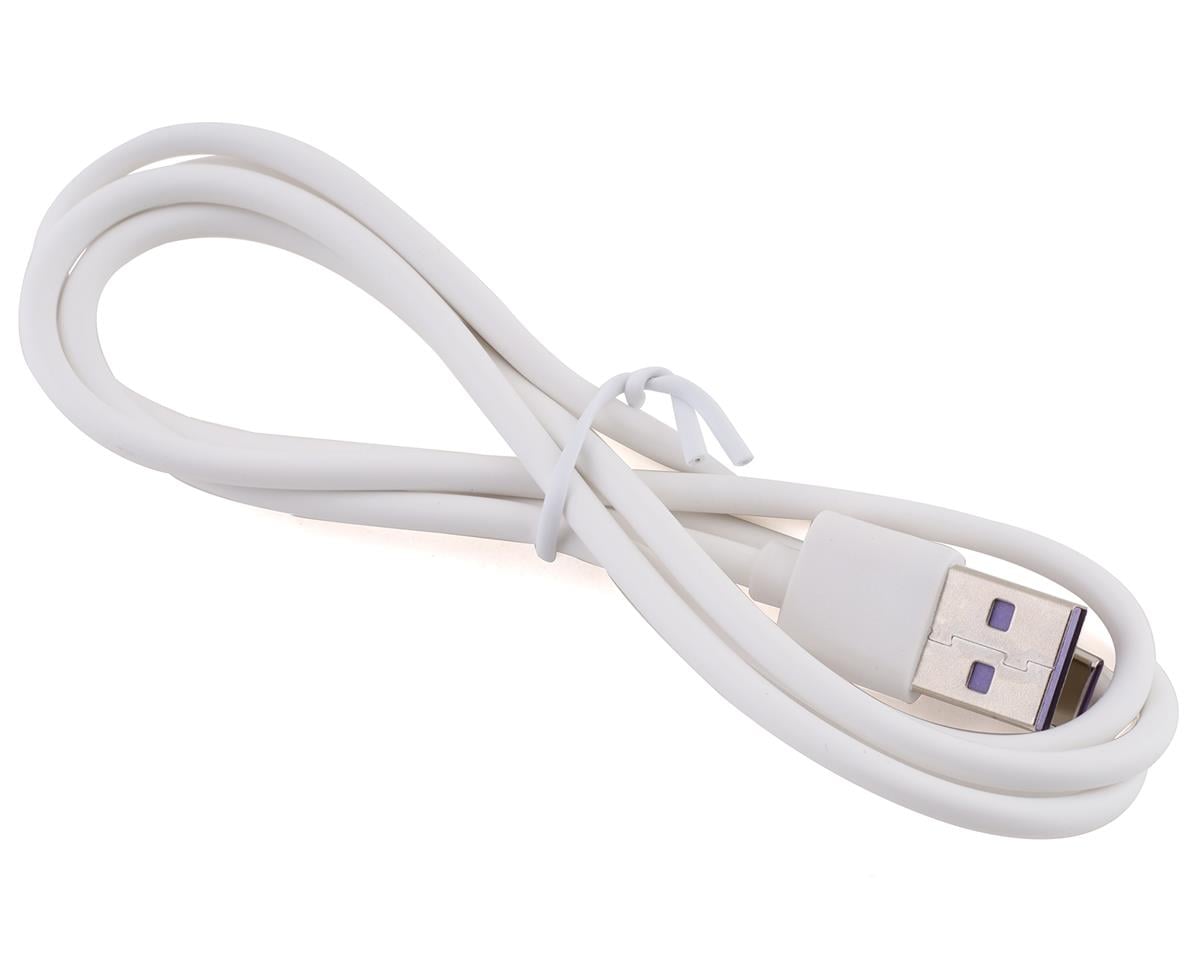

• Maclan USB 2.0 to Type-C cable, PC to ESC data cable (MCL4240)

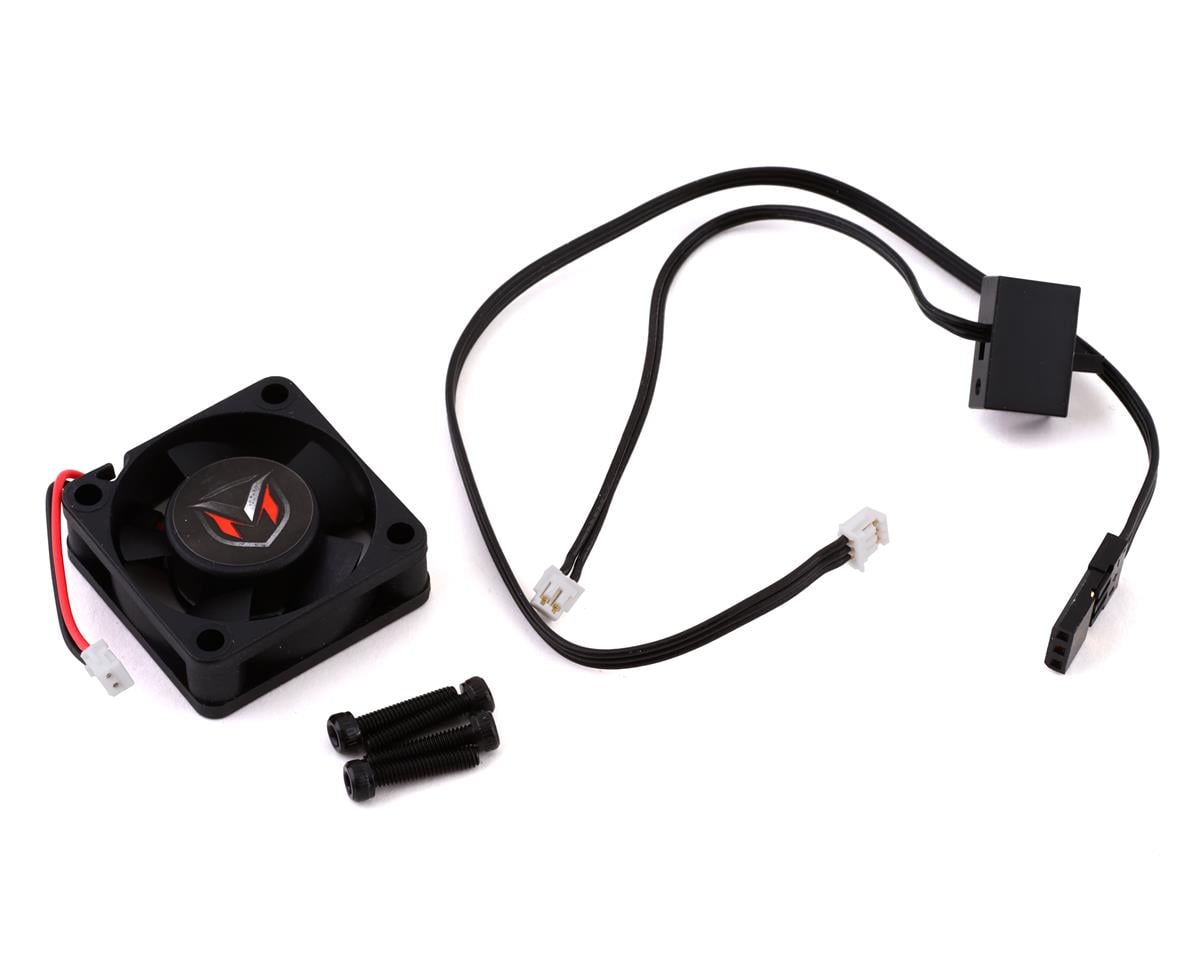

• Maclan ESC turbo fan (MCL4246)
• Maclan ESC power switch (MCL4242)
• User manual and decal
