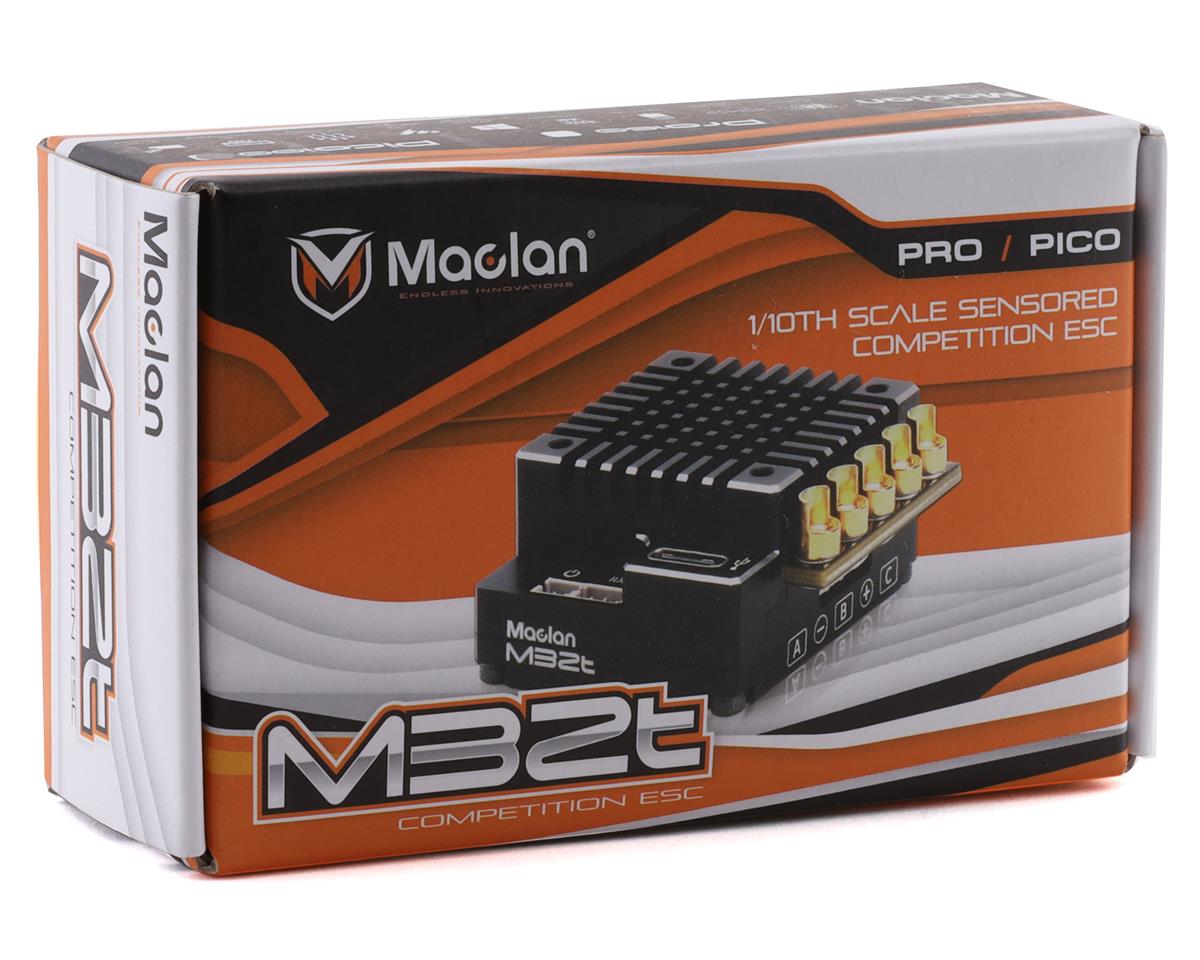

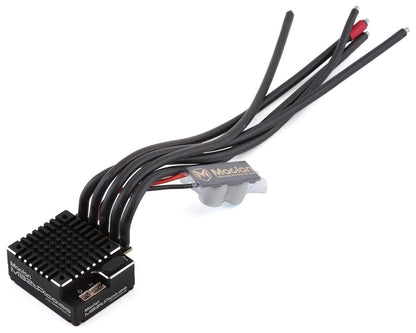

Maclan M32T Pico100 Stock Competition ESC

The Maclan M32T Pico100 Stock Competition ESC is built on Maclan Racing's 32-bit platform and features upgraded processing, expanded memory, refined throttle and brake algorithms, and a USB Type-C connector.

Features

• Smaller footprint and lighter weight than its predecessor: 2mm shorter in length and 3g lighter in net weight
• All aluminum case for thermal performance and durability
• Super speed 32-bit CPU with 5-stage pipeline and twice the memory capacity of the previous platform
• Dynamic Brake PWM with two brake PWM stages adjustable for track conditions
• USB Type-C connector for ESC data communication
• Wireless Link ready; the Maclan Racing Wireless Link is sold separately

Specifications

• Scale: 1/10th
• Mode: Sensored/ Smart Sensorless
• Continuous Current: 100A
• Power Input: 2S Li-Po
• Motor Limit: 2-Pole 10.5T (4-pole motors are not supported)
• BEC Output: Linear Mode 6V to7.4V, 4A
• Input Wires: Black-13AWG-200mm*2
• Output Wires: Black-13AWG-200mm*3
• Cooling Fan: 30x30x10mm HV turbo fan (Optional)
• Fan Power: Direct battery voltage
• Net Weight: 30g (w/o cables and capacitor module)
• Dimension: 38x30x16mm (w/o cooling fan)
• Factory Limited Warranty: 90 days after the date of purchase

Includes

• Maclan M32t Pico100 ESC with factory pre-soldered wires and capacitor module
• Maclan ESC receiver cable 20cm (MCL4243)
• Maclan USB 2.0 to Type-C cable (PC to ESC data cable) (MCL4240)
• Maclan ESC power switch (MCL4242)
• User manual and decal
