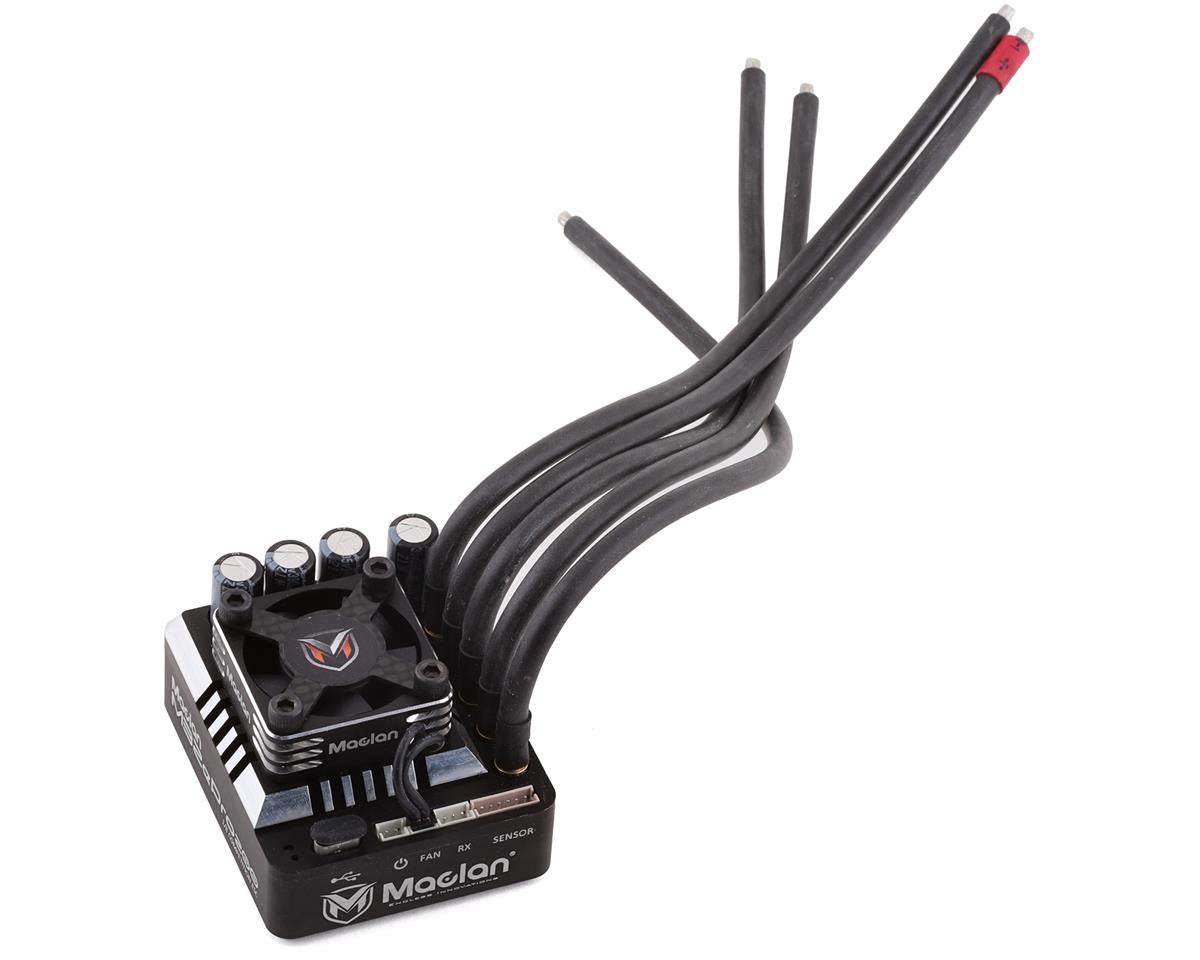

Maclan M32e Pro 200 Competition 1/8 Brushless ESC

The Maclan M32e Pro 200 Competition 1/8 Brushless ESC is designed for 1/8 e-Buggy, 1/8 e-Truggy and 1/10 SCT applications using 2S-4S Li-Po power. Its aluminum case and omnidirectional heatsink support airflow and cooling, while the 32-bit PIC32 CPU and next-generation firmware algorithms provide fast processing and a nitro-like throttle feel.

This ESC supports sensored and Smart Sensorless operation, with adjustable throttle and brake PWM frequency for fine-tuning. It also features motor/ESC temperature protection, low voltage protection, dual-mode USB connectivity, and support for Windows 7/10 and mobile app software for data logging, programming and firmware updates.

Features

• Purpose-built for 1/8 e-Buggy and e-Truggy applications
• Suitable for 1/8 e-Buggy, 1/8 e-Truggy and 1/10 SCT applications
• 2S-4S Li-Po power input
• 200A continuous current and 1000A peak current
• Full aluminum structure with omnidirectional heatsink
• Hurricane aluminum turbo fan with carbon fiber fan guard
• Silicon-coated circuit board
• Super speed PIC32 32-bit CPU
• Adjustable throttle and brake PWM frequency
• Motor/ESC temperature protection and low voltage protection
• On-board USB host + slave dual-mode connectivity
• Dual power-on options for switch or direct-to-battery operation

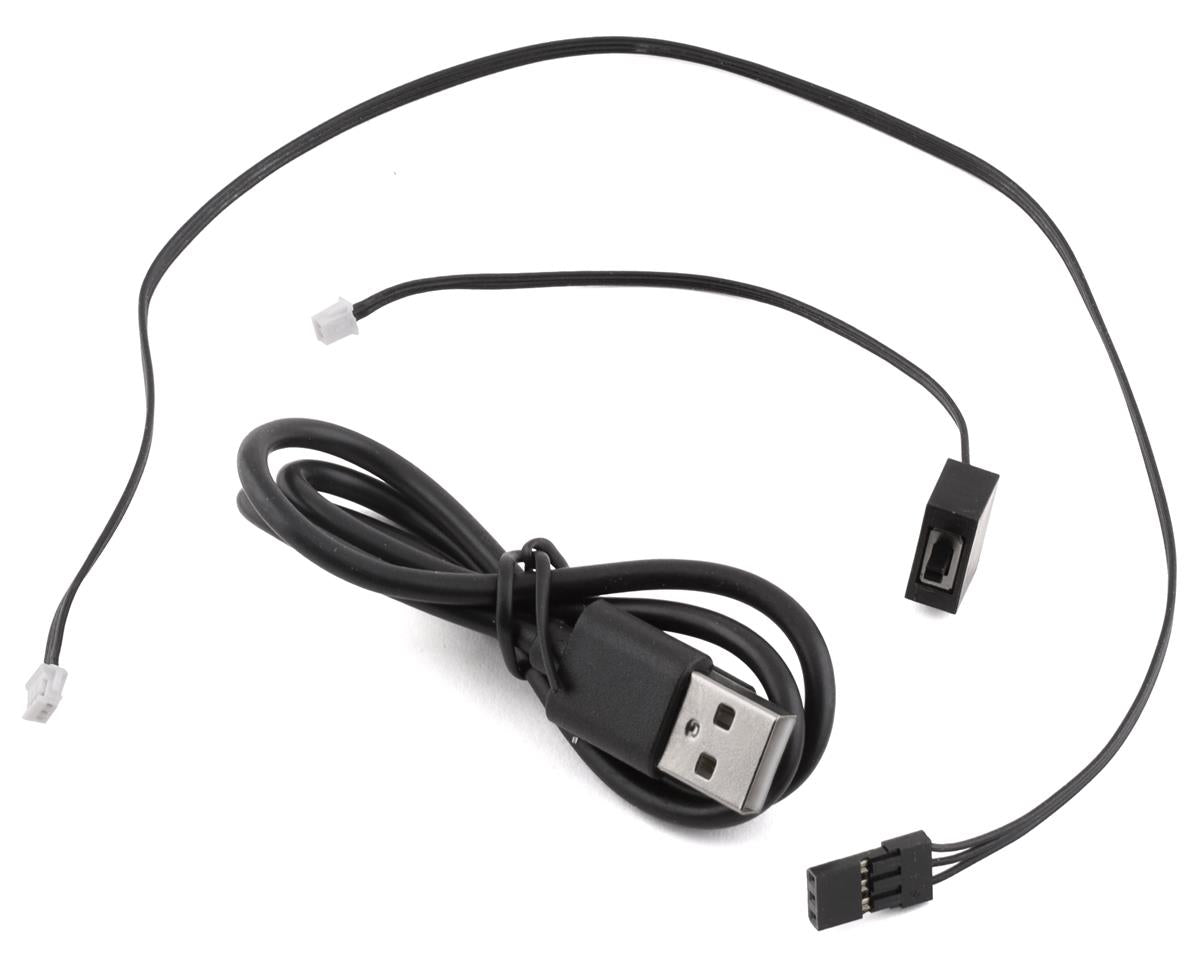

• All detachable connectors with several optional length cables
• Drag racing applications are not supported
• Best performance and durability with Maclan MR8.4 series motor

Specifications

• Scale: 1/8th
• Power Input: 2S-4S Li-Po
• Continuous Current: 200A
• Peak Current: 1000A
• Mode: Sensored/Smart Sensorless
• CPU: Super speed PIC32 32-bit CPU
• Wire input: Black 12AWG 200mm x2
• Wire output: Black 12AWG 200mm x3
• Cooling fan: 30x30x10mm Hurricane Aluminum turbo fan
• Dimension: 58x48x34mm
• Net weight: 110g (w/o wires and cooling fan)
• Support voltage/ Motor KV: 2S: up to 5000KV; 3S: up to 4000KV; 4S: up to 3000KV

Includes

• 1 Maclan M32ePro 200 Competition ESC
