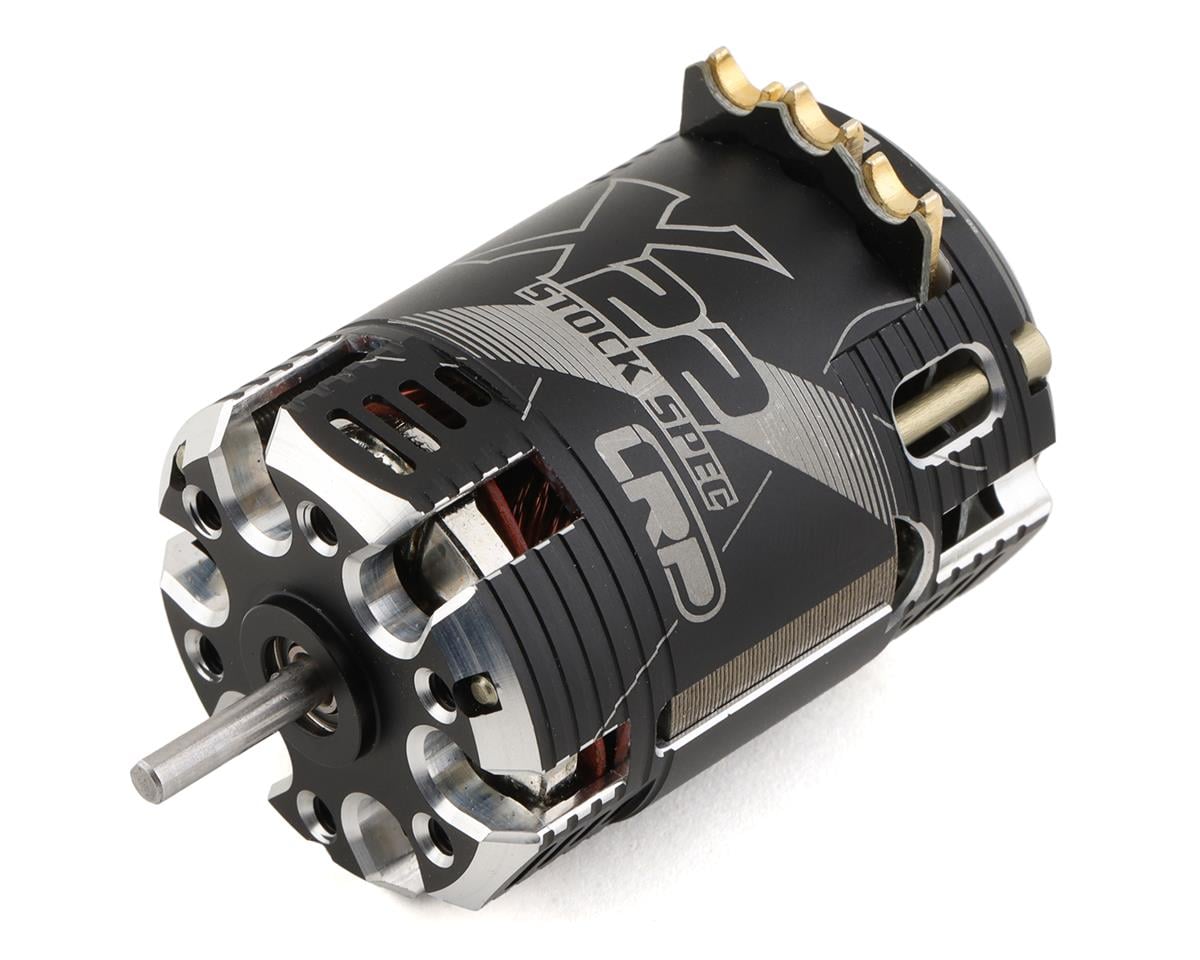

LRP X22 Stock Spec 540 Sensored Brushless Motor (13.5T)

The LRP X22 Stock Spec 540 Sensored Brushless Motor delivers a competition-focused design for on- and off-road applications. It features a machined 7075-T6 housing with large cooling openings, military quality black anodizing, an aluminum end plate, and light aluminum screws.

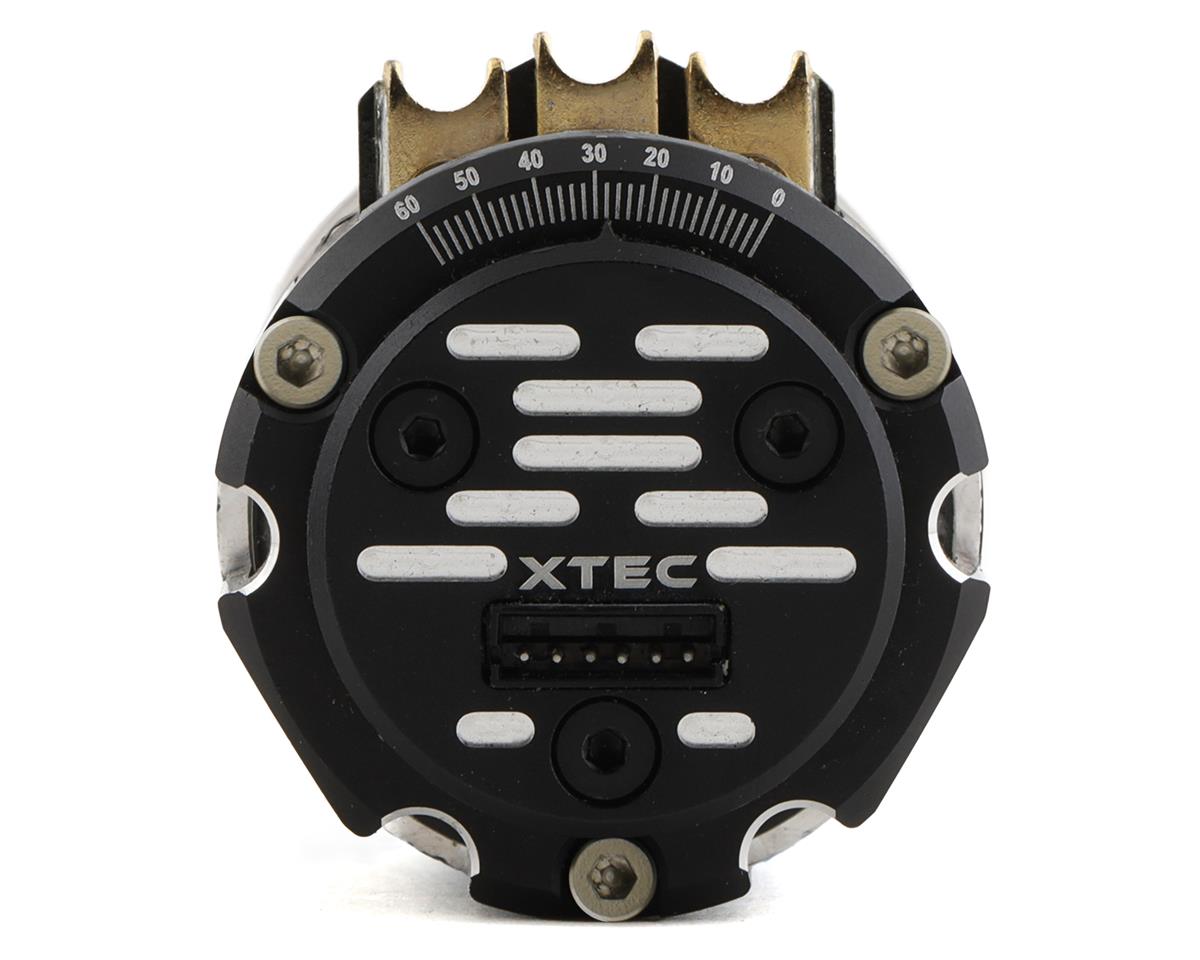

The motor uses a biaxial balanced rotor, highest grade magnet material, and a 2018-specification rotor shaft with a longer mounting surface. Its sensor can be adjusted using the scale on the housing, while timing is adjustable from 0° to 60°.

Features

• 13.5T sensored brushless motor
• Air Vent design with increased cooling surface and openings
• Competition grade materials for efficient current flux
• Highest grade magnet material with updated shaft preparation
• Military quality black anodizing
• Dual axis balanced rotor
• Machined 7075-T6 housing
• Designed to meet IFMAR, EFRA, ROAR, FEMCA, JMRCA, BRCA and DMC requirements

Specifications

• Turn: 13.5T
• Type: Sensored Brushless
• Voltage: 1-2S LiPo
• Winding: Star (Multi-strand Copper Winding)
• Diameter: 35.9mm
• Length: 52.2mm
• Weight: 149-155g
• Rotor Diameter: 12.5mm

Note: When using this motor with a LRP Flow X ESC, a LRP Flow X Level Converter Sensor Wire is required: LRP500902/LRP500903.
