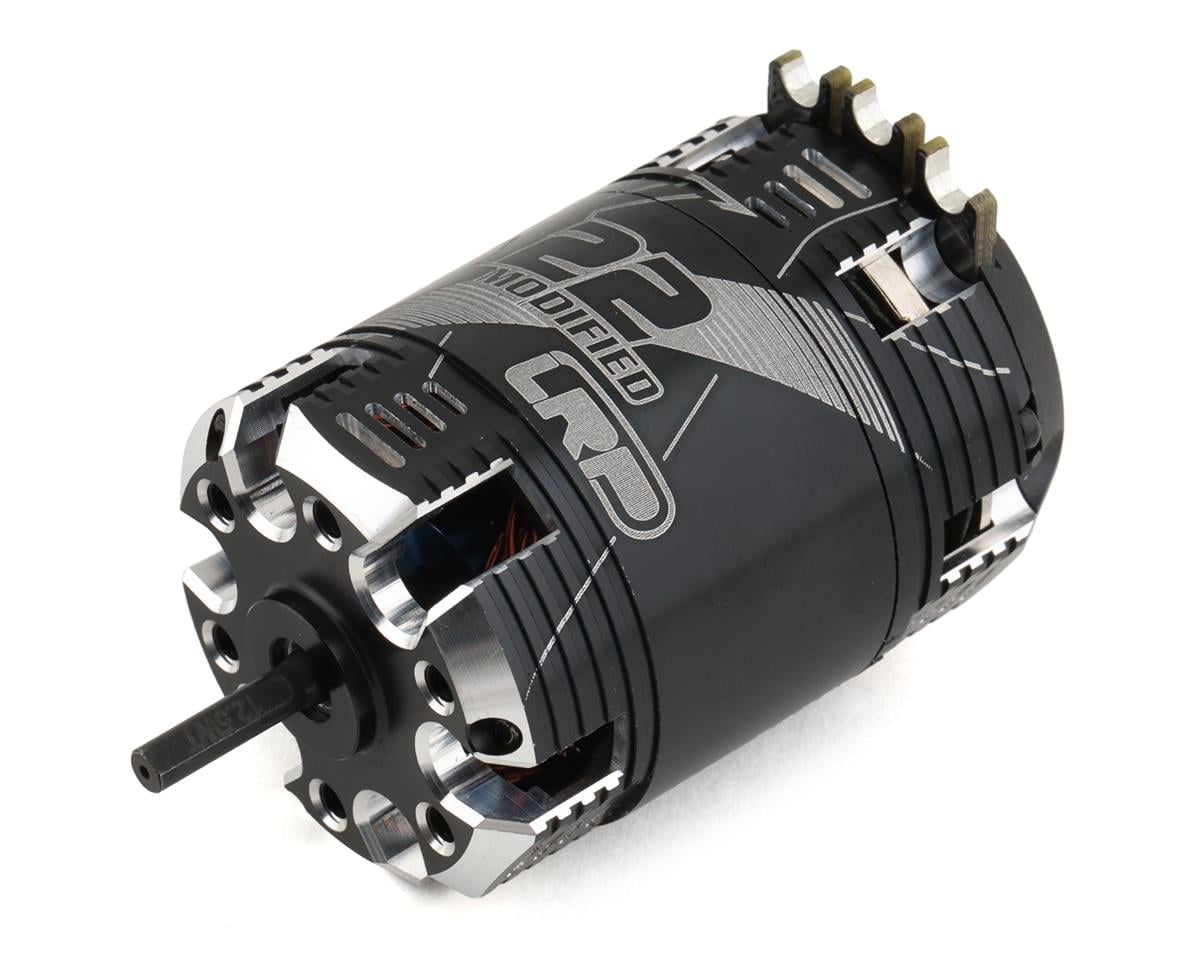

LRP X22 Competition Sensored Modified Brushless Motor (9.0T)

The LRP X22 Competition Sensored Modified Brushless Motor delivers competition-focused power and efficiency in a 9.0T design. It features an optimized timing range, low-resistance electronics, a waterproof preciSensor™ system, and a lightweight machined aluminum housing.

Features

• 2017 Spec dual-axis balanced sintered rotor shaft with longer mounting surface
• Precisely adjusted timing range from 14.5° to 34.5°
• Dual precision 4x10x4 ABEC-5 bearings
• Precision machined 7075-T6 aluminum housing with maximized cut-outs and additional openings
• Updated multi-layer PCB specification for lower resistance

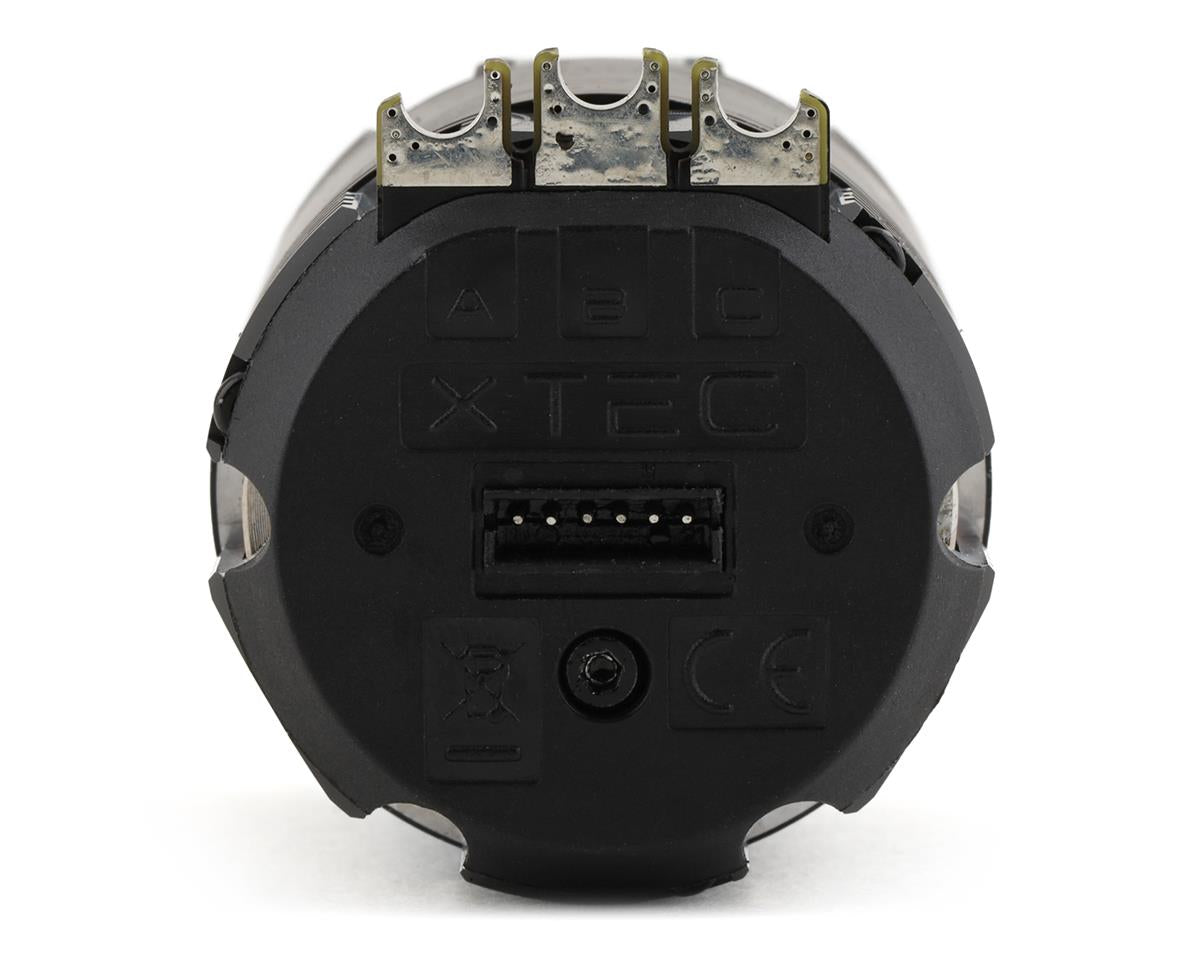

• Waterproof preciSensor™ system with precise sensor positioning
• Fully adjustable and replaceable sensor system
• Dark shine black anodizing with X22 engraving
• Improved power delivery and efficiency

Specifications

• Type: Brushless sensored
• Pole count: 2
• Shaft diameter: 3.17mm
• Motor diameter: 35.9mm
• Motor length: 50.8mm
• Weight: 159-164g
• Rotor diameter: 12.5mm
• Voltage input: 1S-2S Lipo
• Winding: Star (Multistrand Copper Winding)
