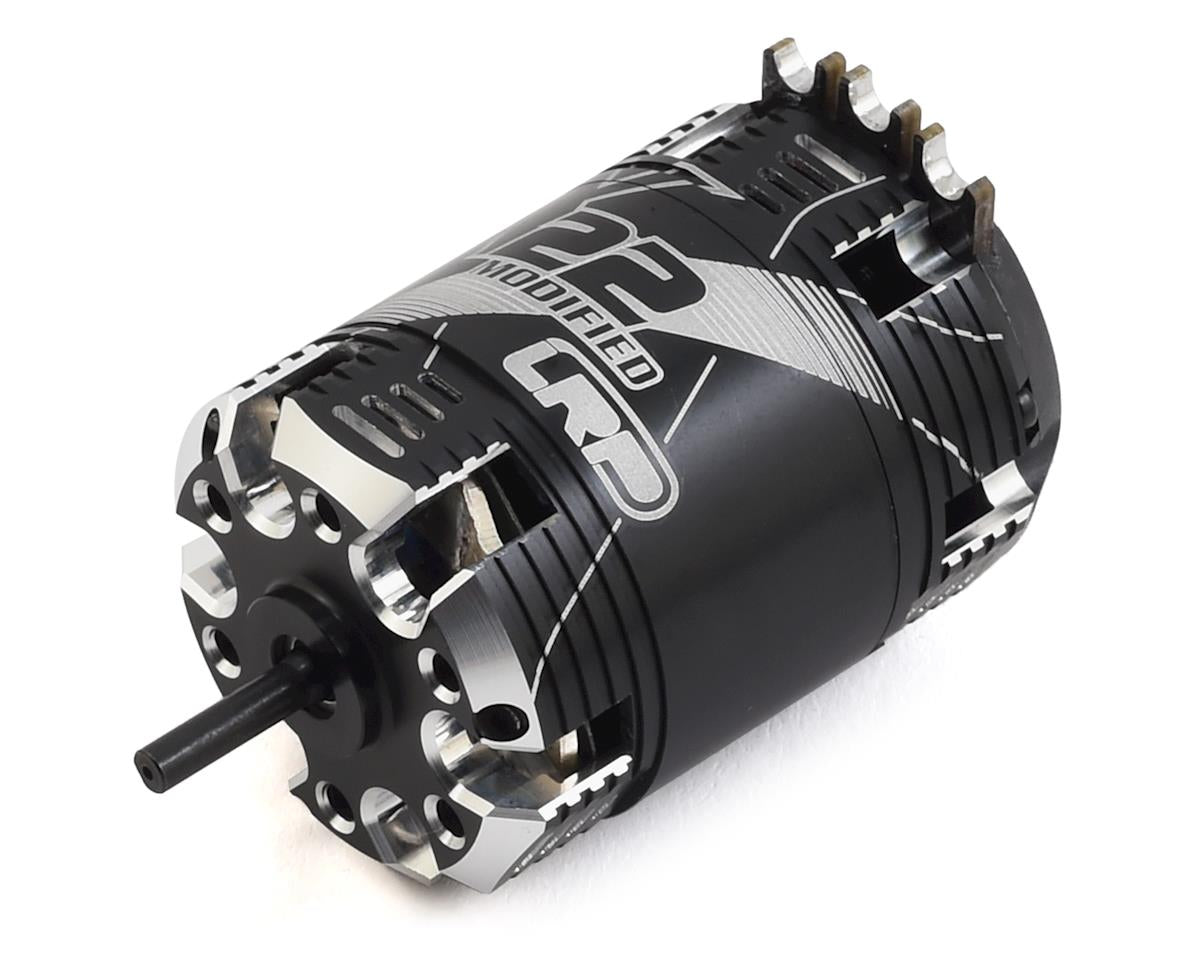

LRP X22 Competition Sensored Modified Brushless Motor (7.0T)

The LRP X22 Competition Sensored Modified Brushless Motor delivers competition-focused power and efficiency in a 7.0T design. Based on the Vector X20 motor platform, it features a longer rotor shaft mounting surface, an optimized timing range, low-profile bearings, an updated air vent design, and reduced resistance.

Features

• 2017 Spec dual-axis balanced sintered rotor shaft with longer mounting surface
• Precisely adjusted timing range from 14.5° to 34.5°
• Dual precision 4x10x4 ABEC-5 bearings
• Ultra lightweight, precision-machined 7075-T6 aluminum housing with maximized cut-outs and additional openings
• Updated multi-layer PCB specification for lower resistance
• Waterproof preciSensor™ system with precise sensor positioning
• Fully adjustable and replaceable
• “Dark shine black” anodizing with X22 engraving
• Improved power delivery and efficiency

Specifications

• Type: Brushless sensored
• Pole count: 2
• Shaft diameter: 3.17mm
• Motor diameter: 35.9mm
• Motor length: 50.8mm
• Weight: 159-164g
• Rotor diameter: 12.5mm
• Voltage input: 1S-2S Lipo
• Winding: Star (Multistrand Copper Winding)
