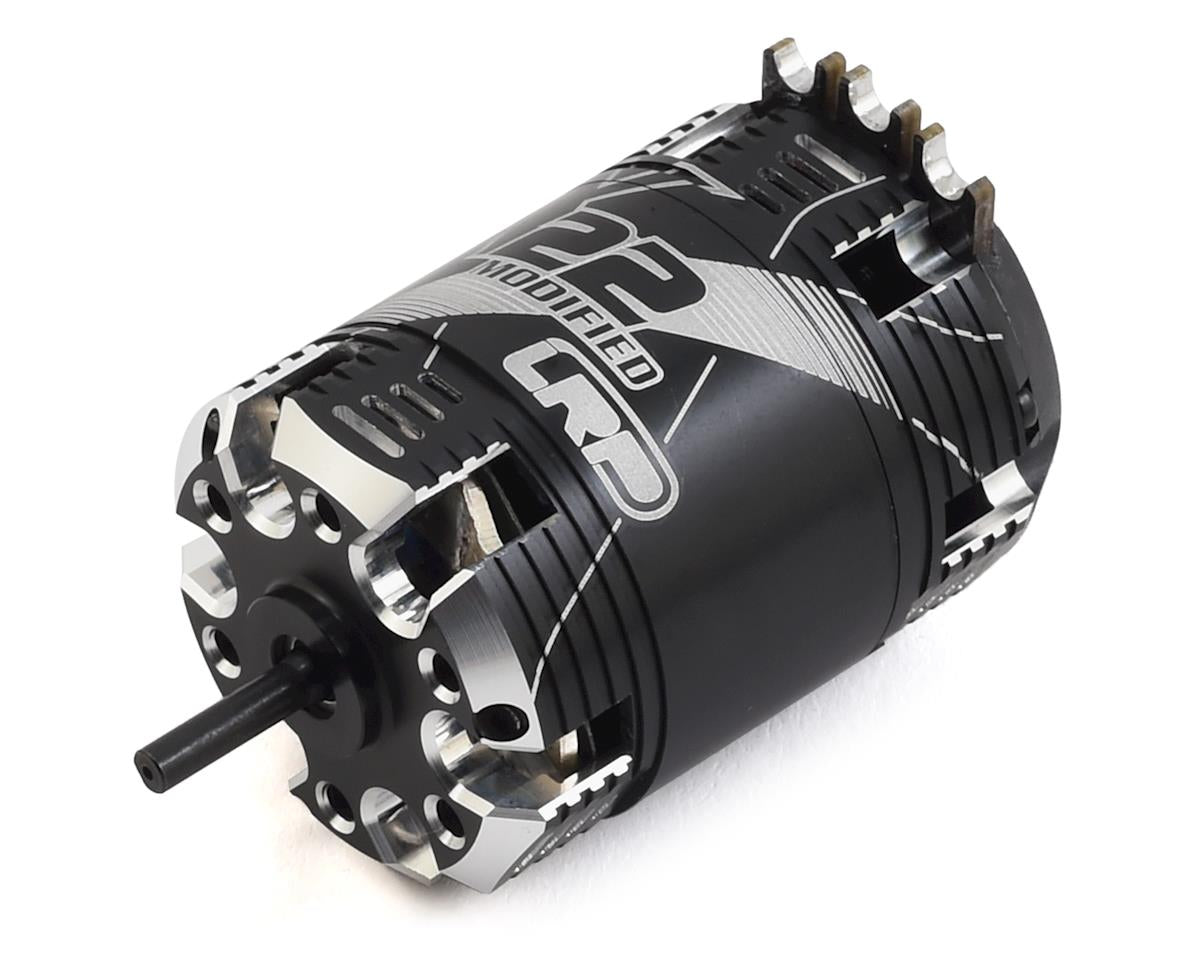

LRP X22 Competition Sensored Modified Brushless Motor (10.5T)

The LRP X22 Competition Sensored Modified Brushless Motor combines a machined 7075-T6 aluminum housing with an updated vent design for increased cooling surface, improved airflow and reduced weight. Its optimized 14.5°-34.5° timing range provides precise adjustment for modified racing applications.

The motor features a 2017 specification powerboard, dual-axis balanced sintered rotor with a longer mounting surface, optimized racing stack and dual precision 4x10x4 ABEC-5 bearings. A waterproof PreciSensor system supports precise operation with compatible speed controllers.

Features

• Brushless, sensored modified motor
• Machined 7075-T6 aluminum housing with dark shine black anodizing and X22 engraving
• Updated air vent design for increased cooling surface and airflow
• 14.5°-34.5° timing range
• Competition racing stack
• 2017 specification powerboard
• Dual-axis balanced rotor
• Updated shaft with longer mounting surface
• Optimized power delivery and efficiency
• Waterproof PreciSensor system
• Built to comply with IFMAR, EFRA, ROAR, FEMCA, JMRCA, BRCA and DMC specifications

Specifications

• Type: Brushless, sensored
• Voltage Input: 1S-2S LiPo
• Winding: Star (Multistrand Copper Winding)
• Motor Diameter: 35.9mm
• Motor Length: 50.8mm
• Weight: 159-164g
• Rotor Diameter: 12.5mm
