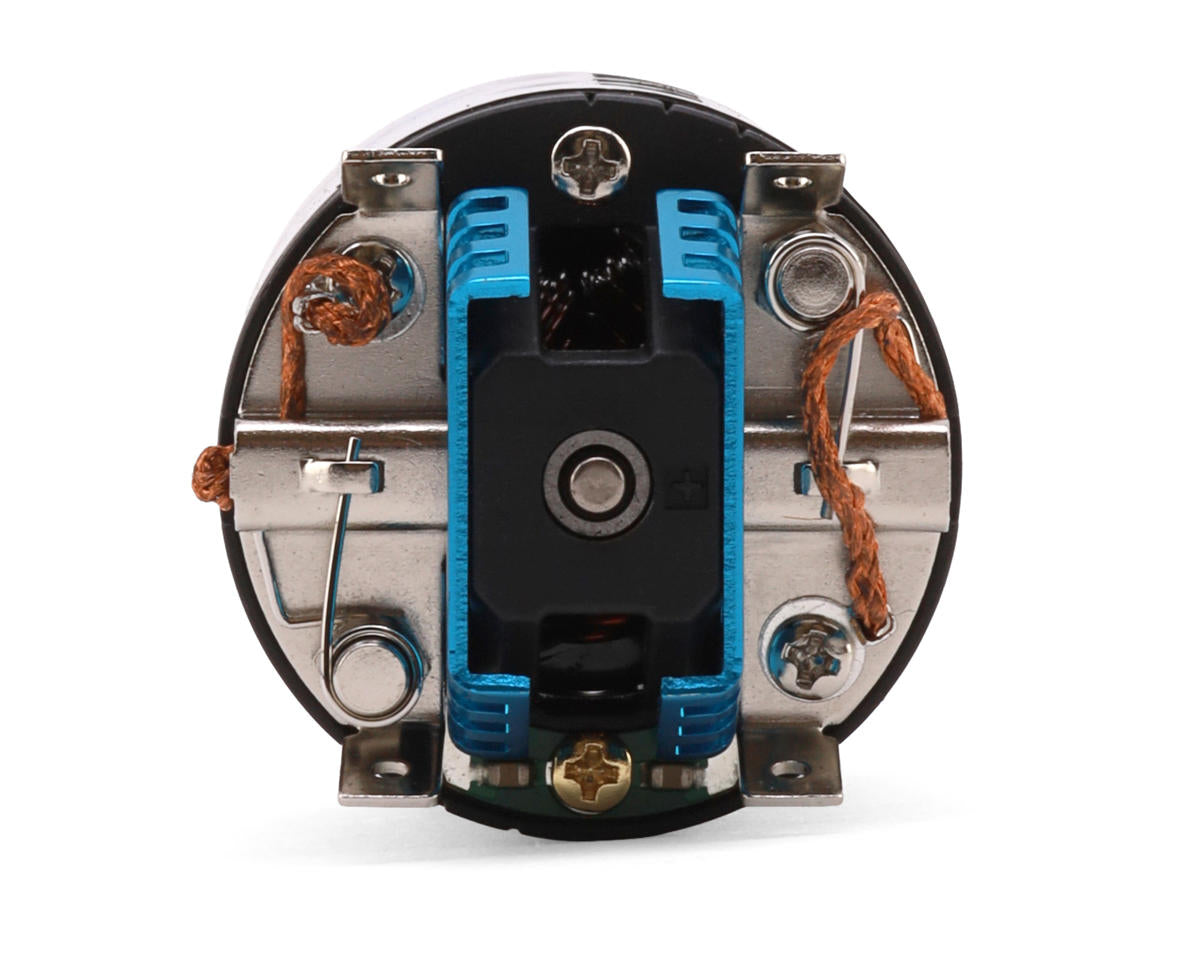

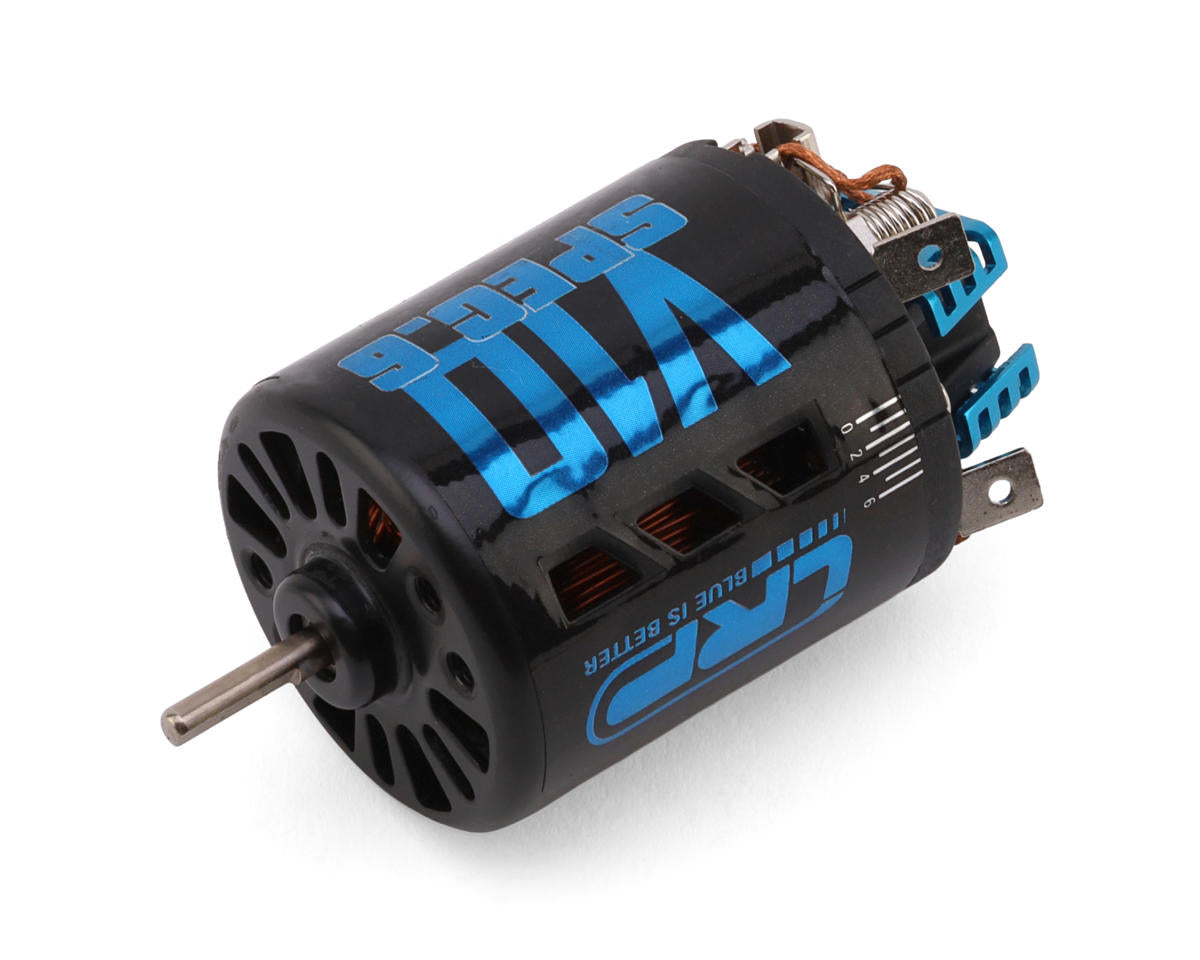

LRP V10 Spec-6 540 Brushed Motor (14T) (Adjustable Timing)

The LRP V10 Spec-6 540 brushed motor combines vintage-inspired LRP styling with adjustable timing and high-power performance. Its 14T, 2-pole, 3-slot design delivers 33,500 RPM at 7.2V, while dual ball bearings, strong magnets, precision windings, and an SMD capacitor support smooth throttle response.

Features

• High-power precision windings for maximum performance
• Strong magnets provide excellent holding power
• Dual ball bearings ensure smooth rotation
• Fully rebuildable construction
• Adjustable timing for tunable performance
• SMD capacitor enhances throttle response and reliability

Specifications

• Motor Type: 540 Brushed, Timeable 2 Pole - 3 Slot
• Turns: 14T
• RPM (at 7.2V): 33,500
• Voltage Input: 3.7 - 7.6V
• Shaft Diameter: 1/8in (3.17mm)
• Motor Diameter: 1.41in (35.9mm)
• Weight: 5.5oz (156g) (+/-5%)

Includes

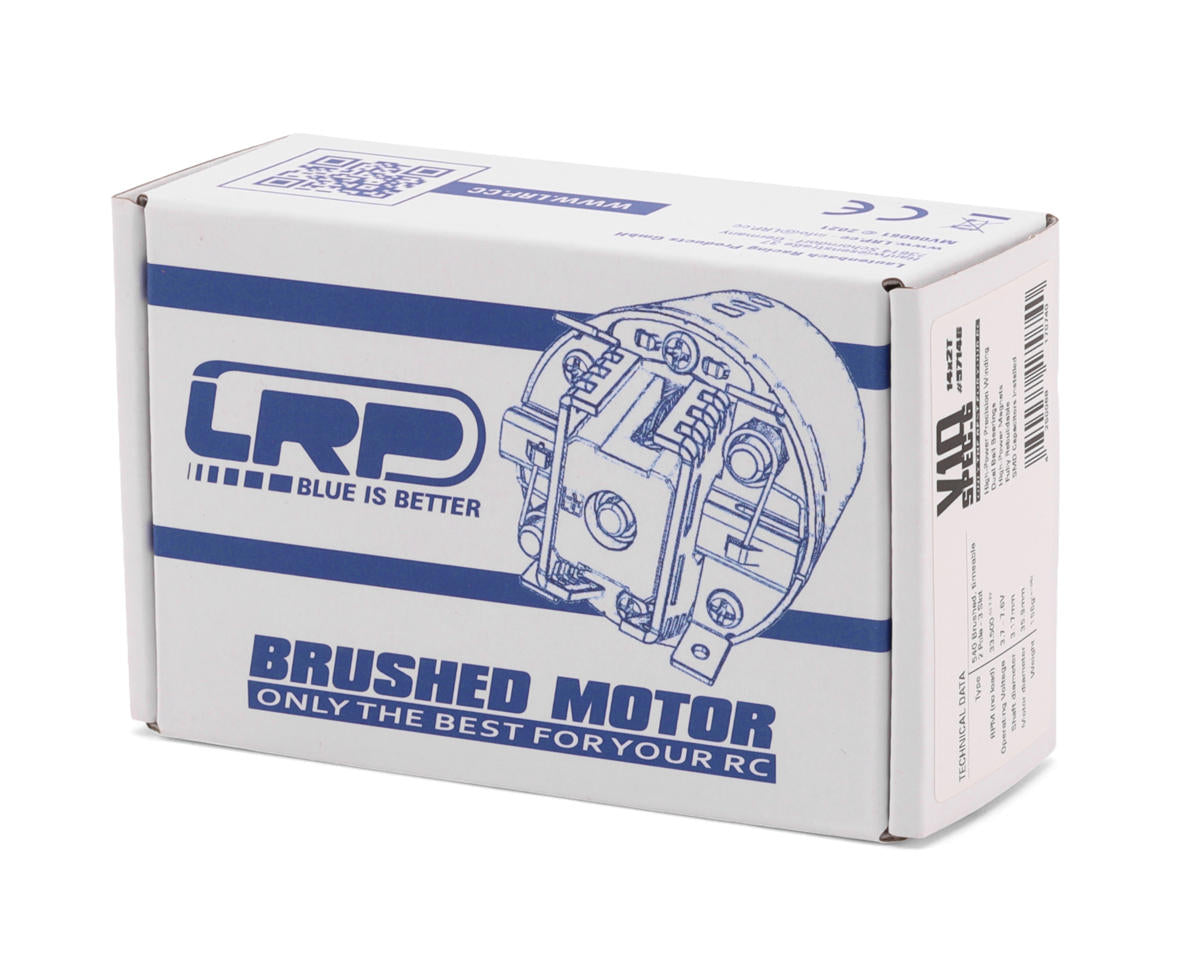

• (1) LRP V10 Spec-6 Motor
• (2) Connectors
