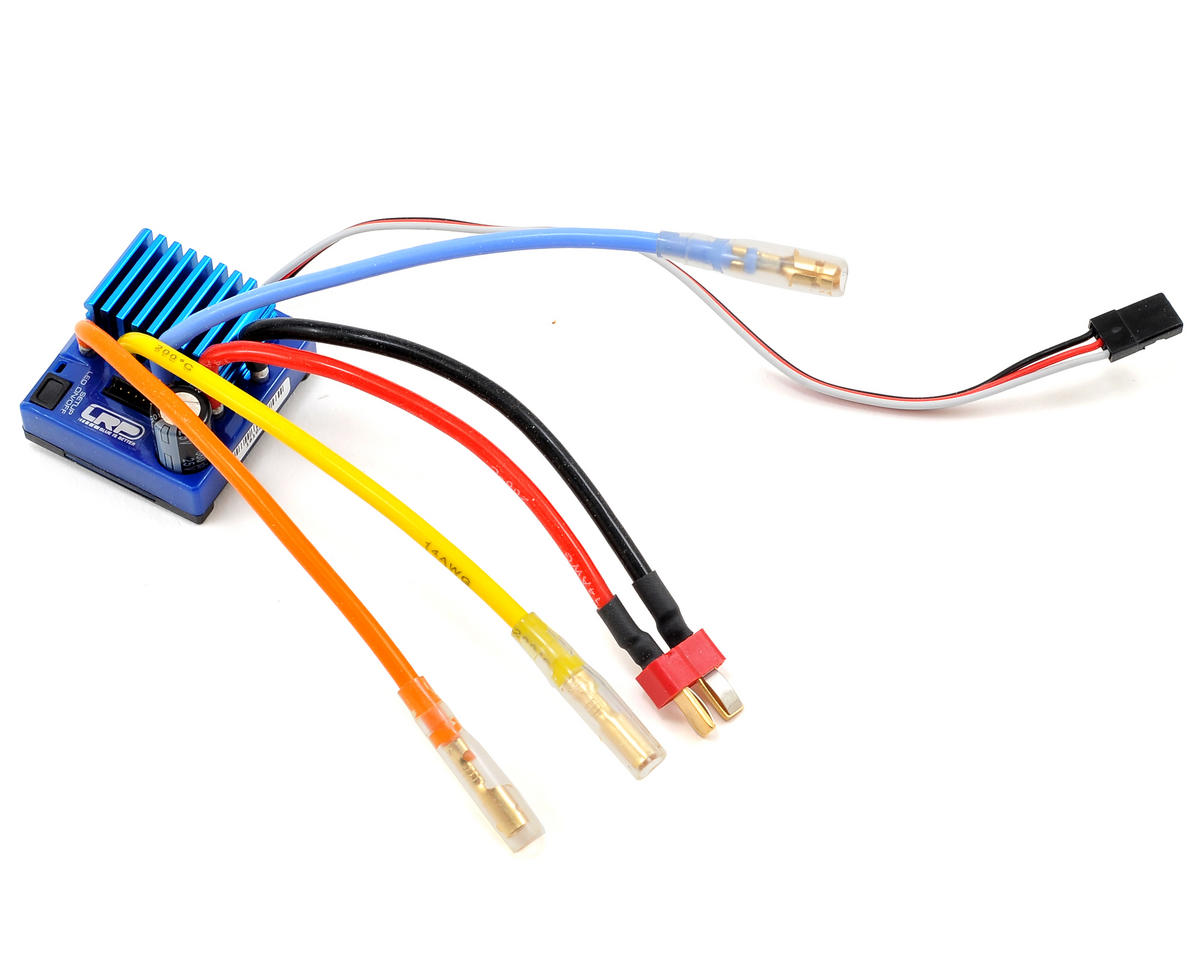

LRP Spin Pro Sensored Brushless ESC

The LRP Spin Pro Sensored Brushless ESC combines sensored brushless operation with adjustable power profiles, LiPo cut-off, automatic braking, and a compact integrated design. It supports 2S-4S LiPo batteries and includes a switching BEC, integrated power capacitor, splashproof construction, and software update support with the LRP USB Bridge 2.

Features

• Worlds winning sensored brushless technology
• 2S-4S LiPo support (7.2 - 14.8V) with adjustable LiPo cut-off
• Five Power Profiles for adjustment to different conditions and motors
• “True stock racing” “Boost 0” mode
• US-Style high-power battery connector
• Single-touch operation
• Forward/brake/reverse and racing mode with forward/brake only
• Adjustable automatic brake
• Heavy-duty, fully integrated construction
• 3 LED user interface
• Multi protection system
• Strong switching BEC: 6V / 2A

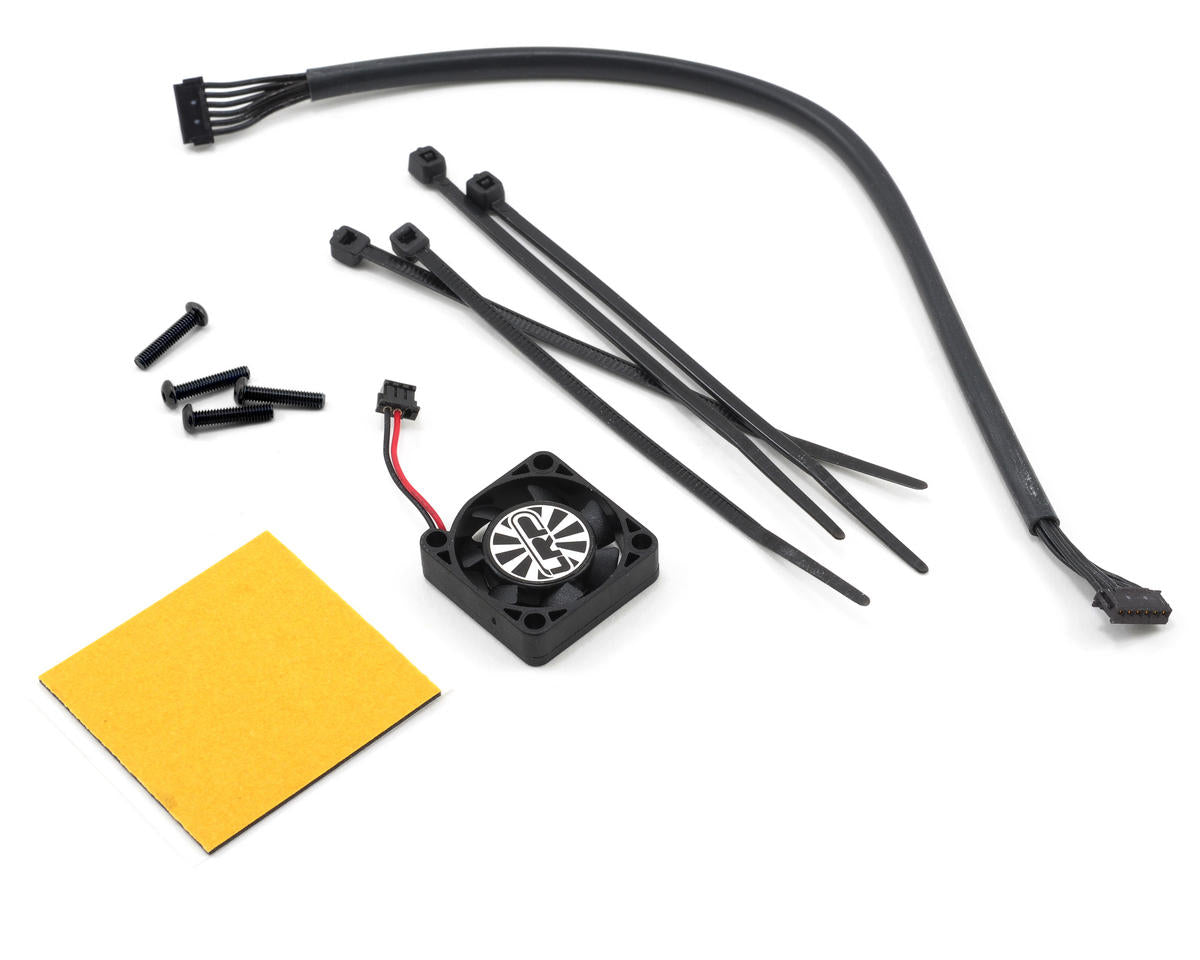

• Pluggable high performance fan for efficient cooling
• Software updates with the LRP USB Bridge 2

Specifications

• Voltage Input: 7.2 - 14.8V (2S-4S LiPo)
• Rated Current: 200A/phase
• Typical Voltage Drop @20A: 0.022V/phase
• Dimensions: 36x38.5x22mm
• Weight (without wires): 32g
• Recommended Motor Limit (2S 7.4V): over 5.5T
• Recommended Motor Limit (3S 11.1V): over 9.5T
• Recommended Motor Limit (4S 14.8V): over 12.5T
