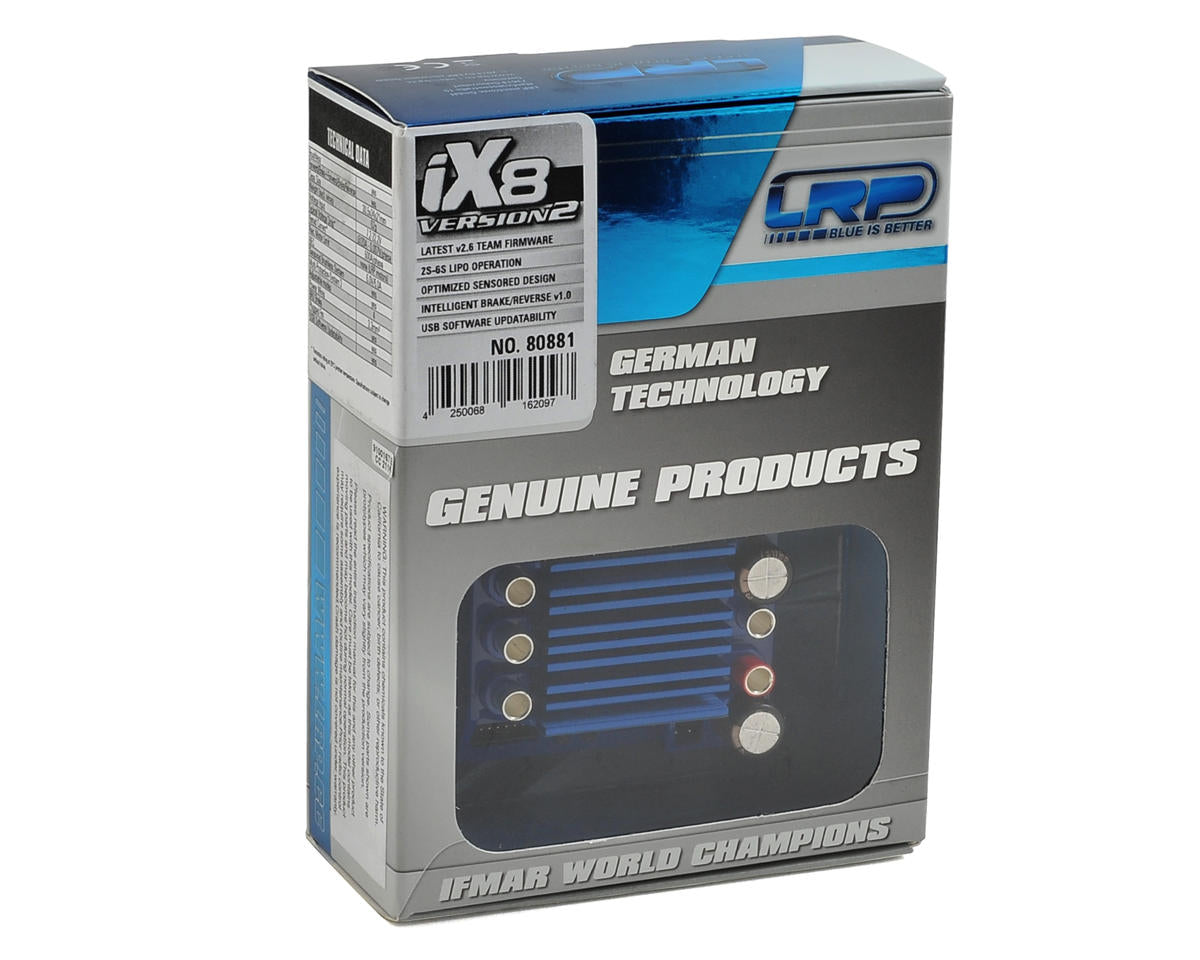

LRP iX8 V2 Brushless Speed Control

The LRP iX8 V2 Brushless Speed Control is a sensored brushless competition ESC designed for 2-6S LiPo batteries. It features AutoCell System 2, a 6V/6.0A switching BEC, Intelligent Brake/Reverse v1.0, USB software updateability, and a brake developed especially for 1/8 scale use.

Features

• AutoCell System 2 with 6A switching BEC
• Compatible with 2-6S (7.4V-22.2V) LiPo batteries
• Intelligent Brake/Reverse v1.0
• Internal Temp Check System 3 for the ESC and motor
• Latest v2.6 team firmware with new modes and optimized values
• No-solder connections with 12AWG motor and battery wires
• 4mm bullet connectors
• Sensored design

Specifications

• Adjustable Modes: AutoCell 2, Drive Selection, Power Profiles, Auto-
• BR-2 Brake: Yes
• Case Size: 2.2 x 1.6 x 0.98 (55 x 40 x 25mm)
• High Frequency: Yes
• Multi Protection System: Yes
• Rated Current: 600A/phase
• Rec. Motor Limit: None (measured @ 6V)
• Reverse Motor Rotation Mode: Yes
• Sensored Brushless System: Yes
• Switching BEC: 6V/6.0A
• Typical Voltage Drop @ 20A: 0.007V/phase
• Voltage Input: 7.4-22.2V (2S-6S LiPo)
• Weight: 2.2oz (62g) not including wires

Includes

• LRP IX8 V2 Brushless Competition ESC with motor and battery wires
• Cooling fan
• Mounting pad
• On/Off switch
• Receiver connector
• Instructions
