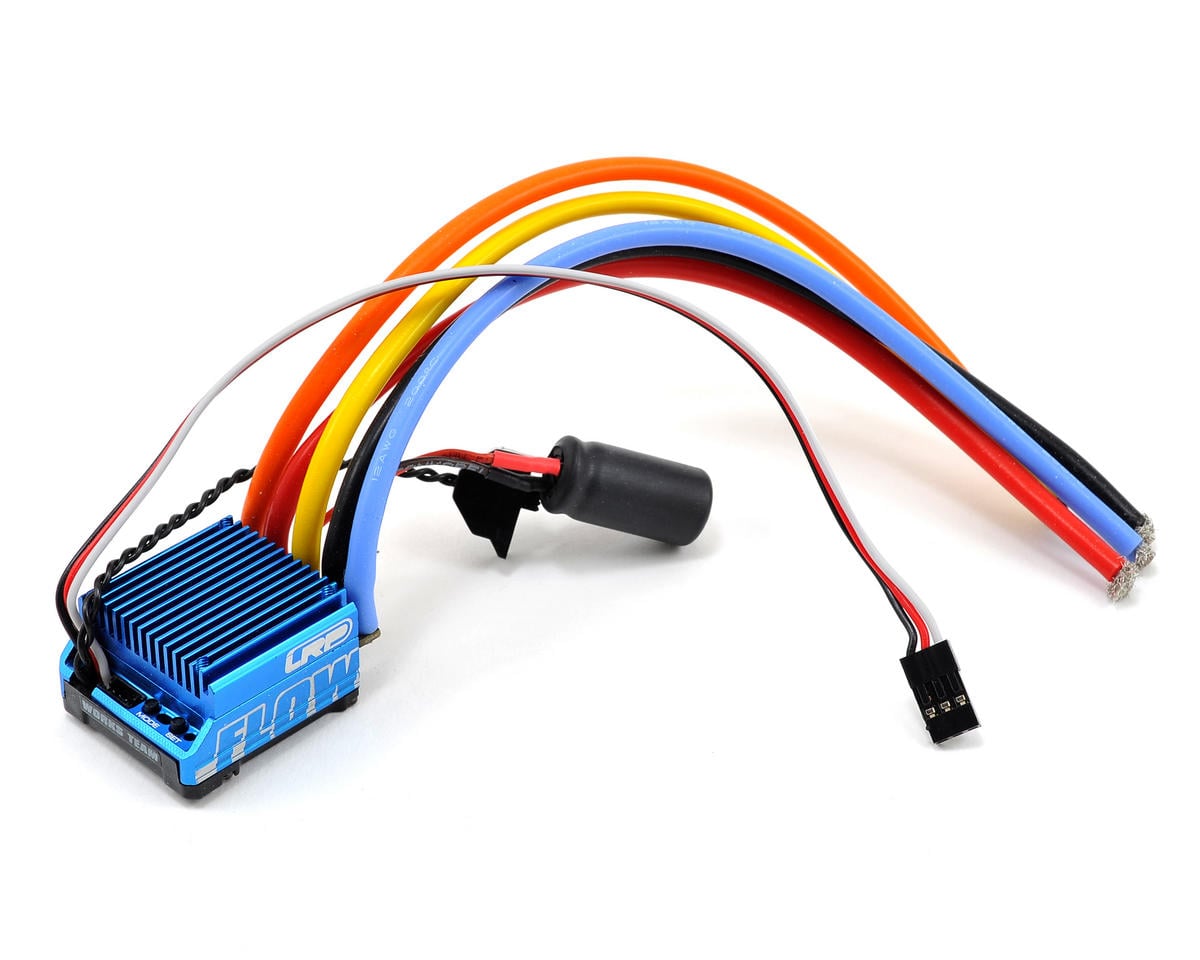

LRP "Flow" WorksTeam Brushless ESC

The LRP "Flow" WorksTeam Brushless ESC is designed for both modified and stock class racing, with adjustable software profiles for on-road and off-road use. Its machined aluminum 2-piece case helps transfer heat to the outside, while the compact 32x34x21mm format supports easy installation.

Features

• All-purpose software for modified and stock racing, including boost 0
• 7 adjustable parameters: auto brake, feel, torque timing, boost timing, boost angle, boost turbo, and cutoff voltage
• HD full aluminum case for low core temperature and a durable race design
• 6V/3A linear BEC
• Easy solder U-Tab design with heavy copper, multilayer PCB
• X-Brake Pro brake software
• USB software updateability
• Internal Temp Check System 3 for reading maximum internal temperature of the ESC and motor
• Plug-in high-performance fan included

Specifications

• Case Size: 32x34x21mm
• Voltage Input: 3.7 - 7.4V
• BEC: 6.0V / 3.0A
• Sensored Brushless System: Yes
• Forward/Brake: Yes
• Multi Mode Profile Adjustment: Yes
• Multi Protection System 2: Yes
• Internal Temp Check System 3: Yes
• Power Wires: 3.3mm
• Recommended Motor Limit: 3.5 Turn
• Rated current: 400A/phase
• Typical voltage drop: At 20A - 0.011V/Phase
• Weight (w/no wires): 40g
• Plugged fan: Yes
