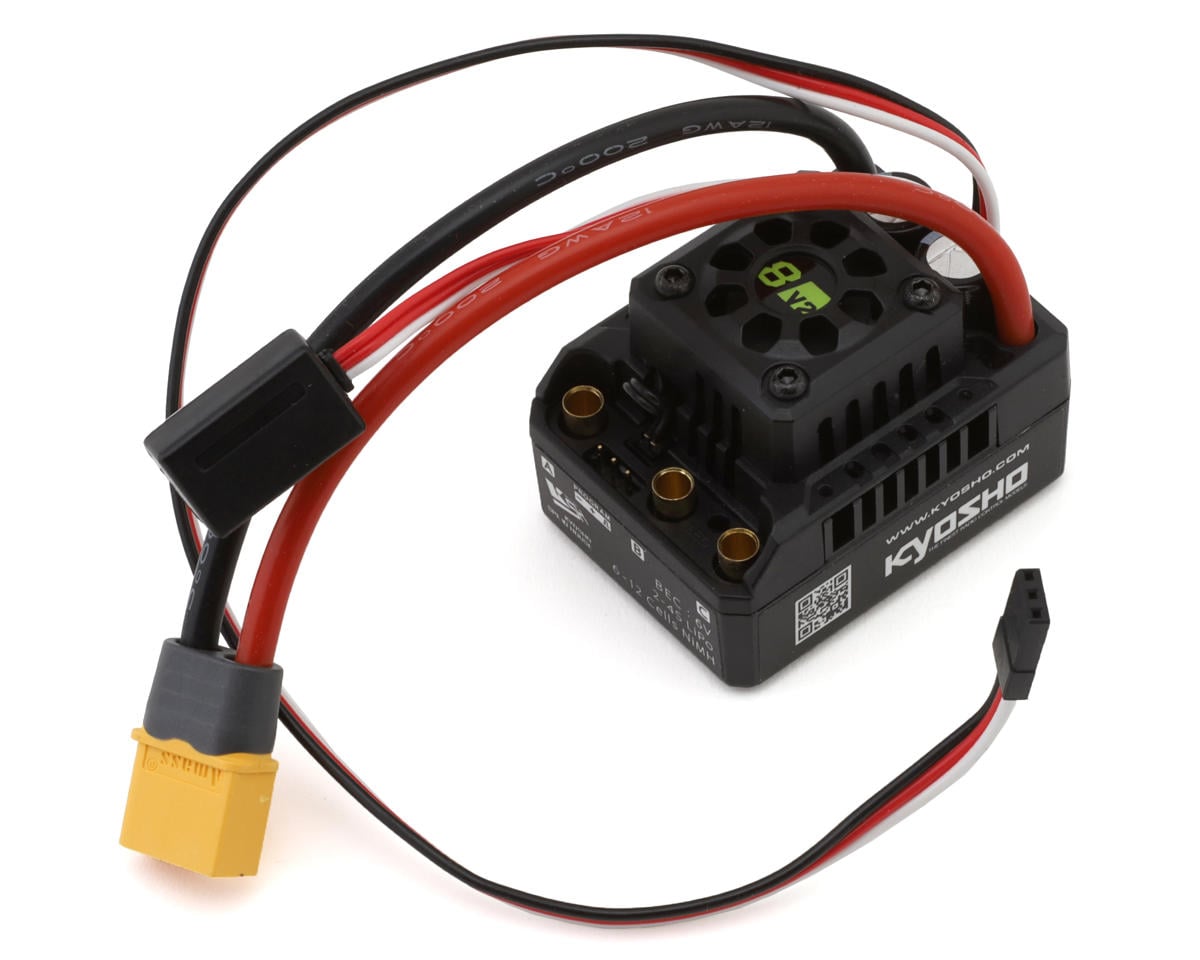

Kyosho Speed House Brainz 8 V2 120A Sensorless Brushless ESC

The Kyosho Speed House Brainz 8 V2 120A Sensorless Brushless ESC is designed for 1/8 on-road and off-road applications, with support for 2-4S LiPo batteries and 120A continuous current.

Features

• 120A continuous current and 830A burst current
• Sensorless brushless motor support
• Built-in low voltage cut-off
• Overheating protection
• Waterproof design
• SET button programming with beep codes
• Adjustable brake strength, punch, and drag brake
• Pre-soldered XT60 battery connector
• Programmable

Specifications

• Suggested Application: 1/8 On-Road & Off-Road
• Motor Type: Sensorless Brushless
• Input Voltage: 2-4S (7.4-14.8V)
• Continuous Current: 120A
• Burst Current: 830A
• Dimensions (LxWxH): 0.748031×1.55×1.36in (19×39.5×34.7mm)
• Weight: 3.70oz (105g)
• BEC Voltage: 6V
• Motor Connector: 4.0mm Bullets
• Battery Connector: XT60
• Battery Wire: 12 AWG

Includes

• (1) Speed House Brainz 8 V2 120A Sensorless Brushless ESC
• (1) Manual
