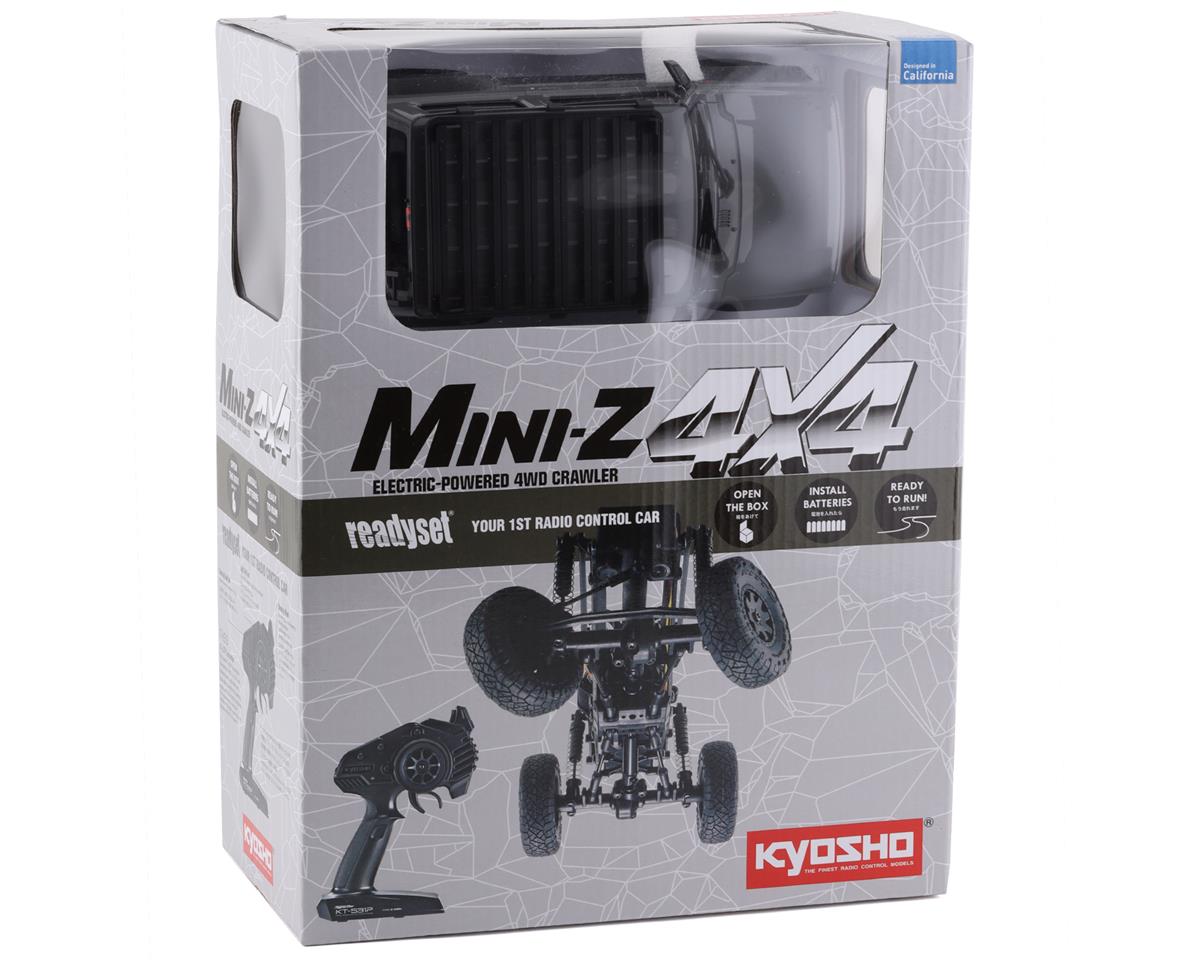

Kyosho MX-01 Mini-Z 4X4 Readyset w/APIO Jimny Sierra Body (Grey)

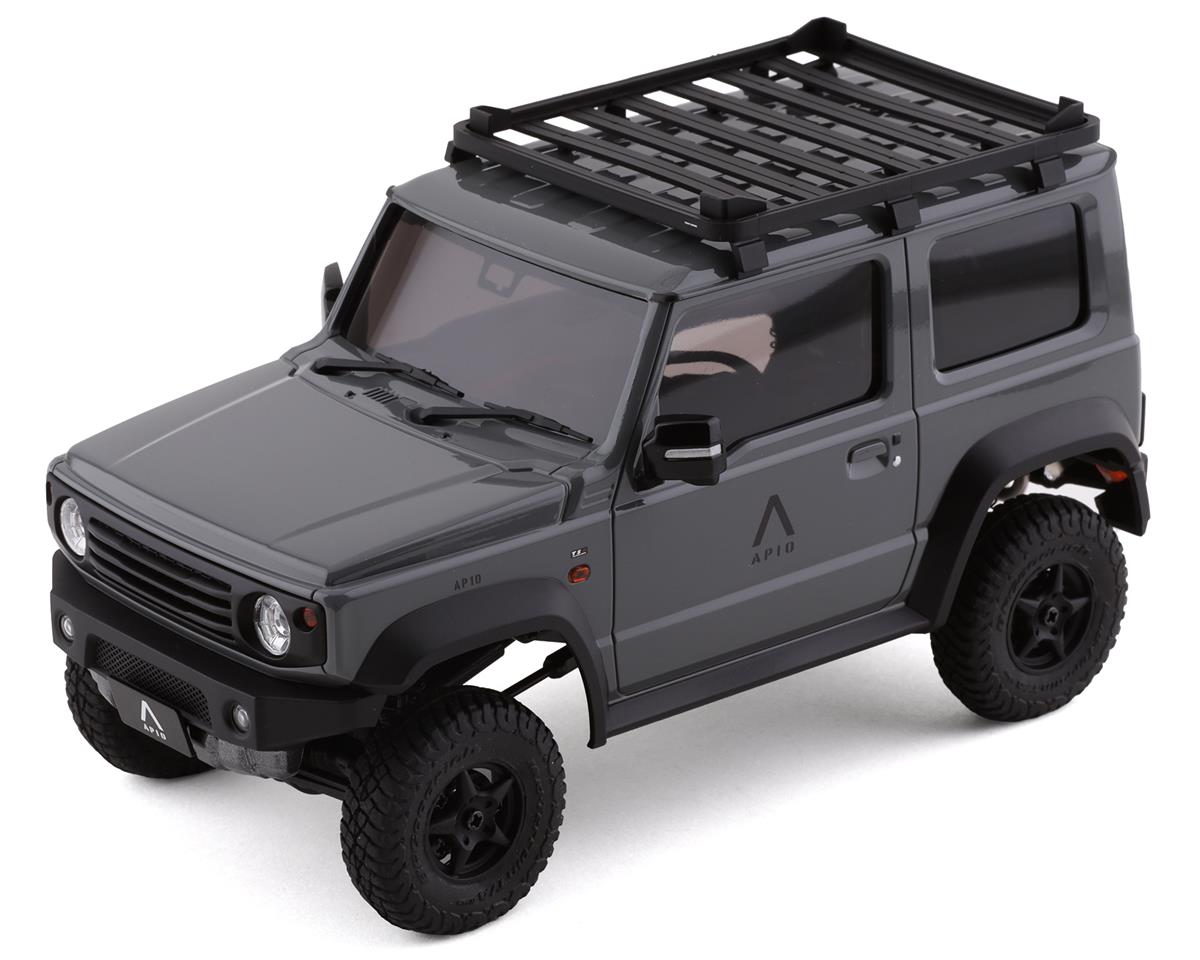

The Kyosho MX-01 Mini-Z 4X4 Readyset combines a scale APIO Jimny Sierra body in grey with a capable crawler-style chassis and 2.4GHz control. Designed with Jimny Proshop Apio, this edition features a realistic front grille, front and rear bumpers, roof rack, rear ladder, rear number plate, Yoshimura muffler, custom wheels and more.

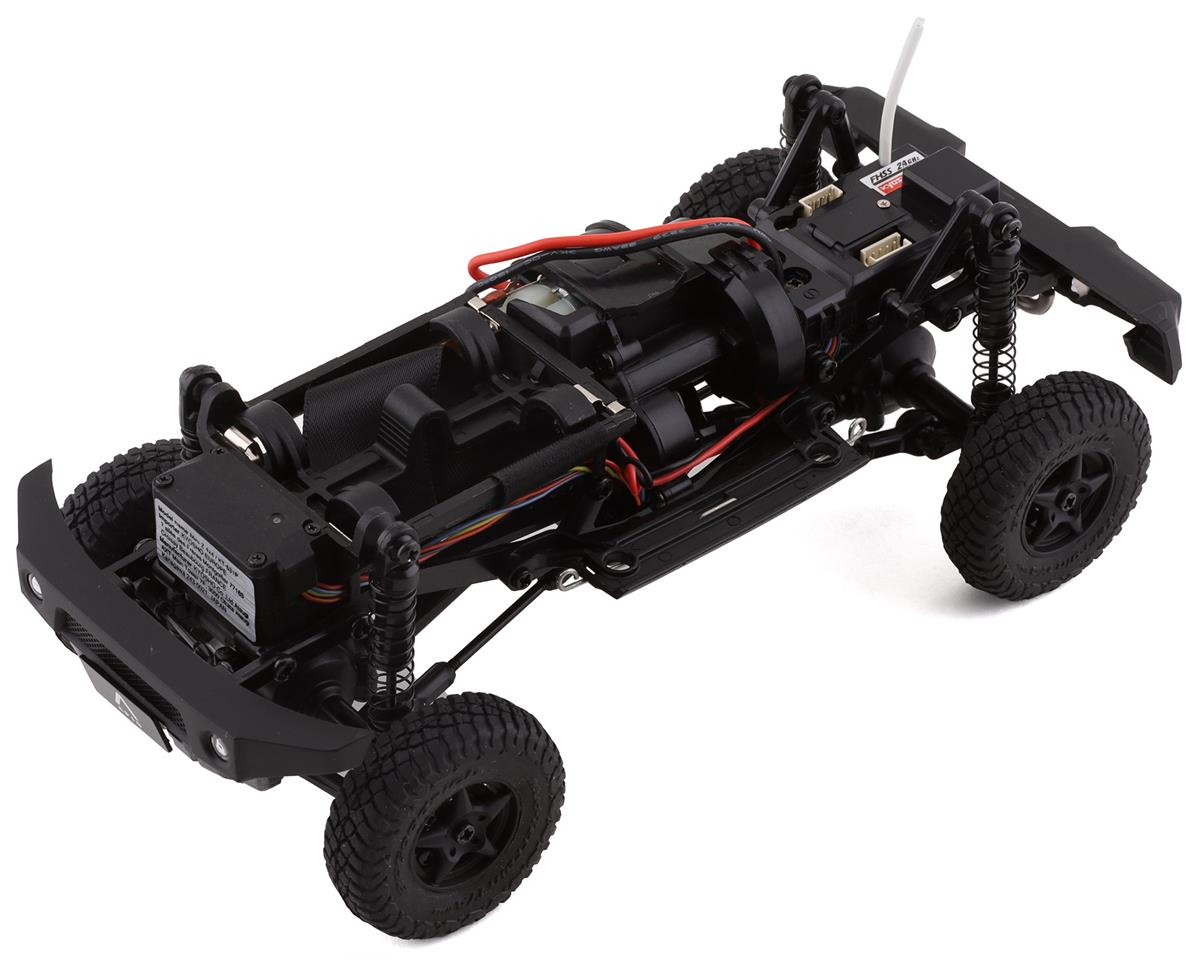

The MX-01 chassis uses a ladder frame with steel vertical plates, solid front and rear axles, coil-over shocks and a 3-link rigid axle suspension. Its high-torque 130-class motor is geared for low- to medium-speed driving, while the gearbox offers six pinion gears for adjustment across different terrain.

Features

• Factory-painted APIO Jimny Sierra body with fine details
• MX-01 ladder frame chassis
• Solid front and rear axles with steel tie rods and captured ends
• Metal ring and pinion gear components
• Coil-over shocks with 360-degree spring retainers
• BF Goodrich Mud-Terrain T/A KM3 tire reproductions
• Ball-bearing gearbox with six pinion gears
• Standard slipper clutch with metal shaft and primary gear
• Built-in electronics

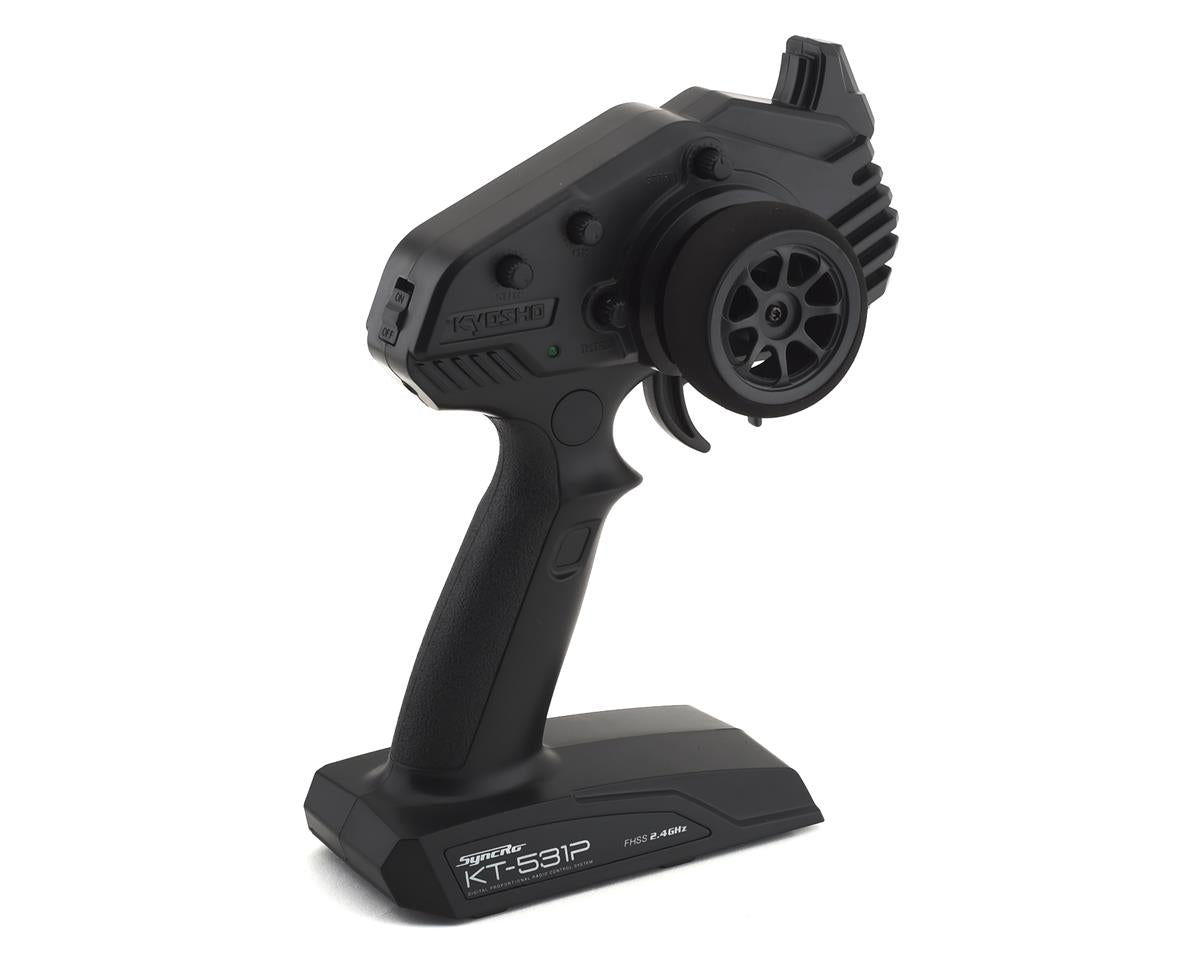

• Syncro KT-531P 2.4GHz transmitter

Specifications

• Chassis Type: MX-01
• Length: 191mm
• Width: 84mm
• Height: 102.0mm
• Wheel Base: 120mm
• Tread F/R: 72.7mm
• Weight: 242g (excl. battery)
• Motor/Engine: 130 Class
• Gear Ratio: 55.44:1/ 46.20:1/ 39.60:1/ 34.65:1/ 30.80:1/ 27.72:1
• Front Tire Diameter: 37.0mm
• Rear Tire Diameter: 37.0mm
• Front/Rear Tire Width: 12mm
• Speed: Approx. 2.7km/h-5.4km/h (Pinion gears 10T-20T)
• Running Time: Approx. 60 mins

Includes

• Complete chassis with built in electronics
• Factory painted body complete with fine details
• KT531P 2.4GHz transmitter

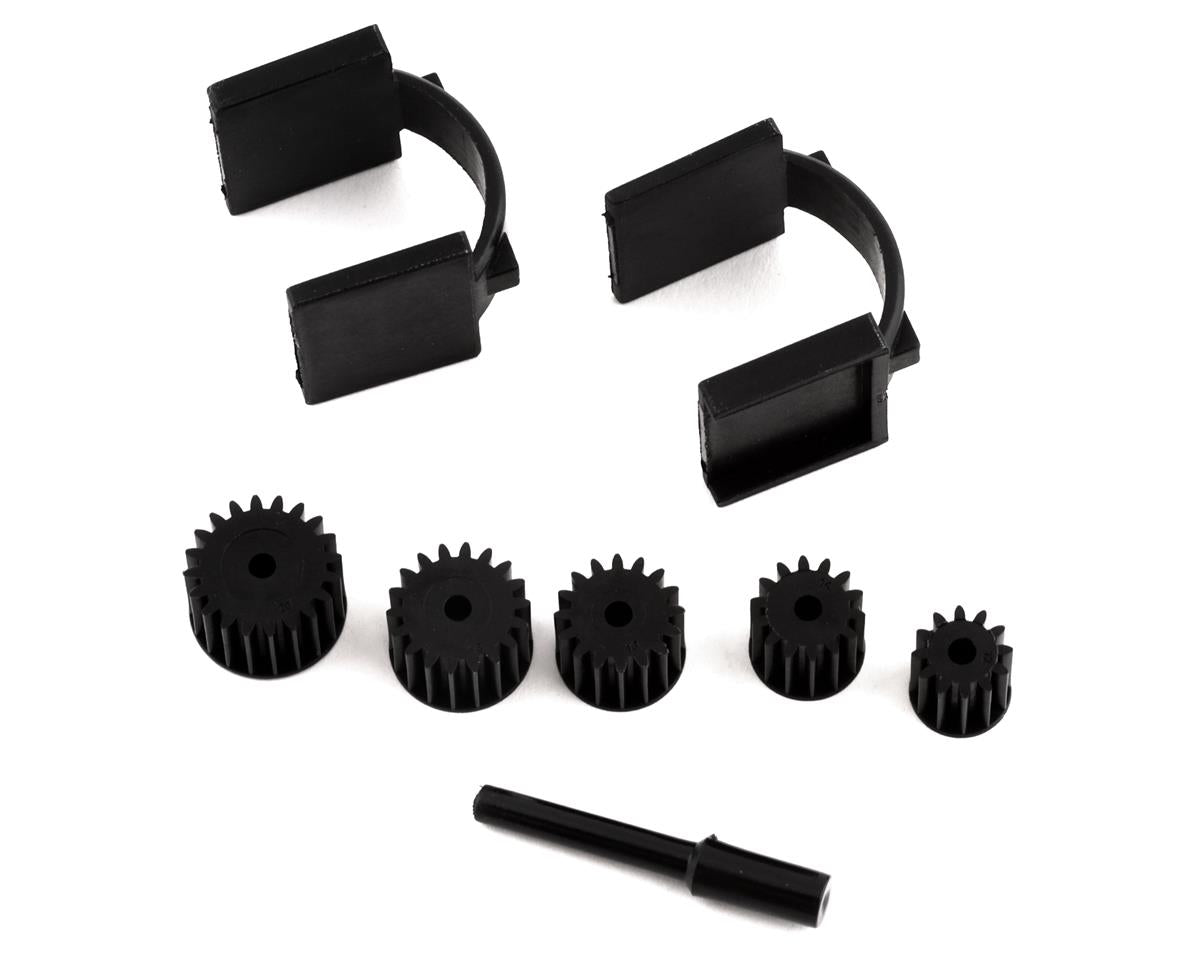

• Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
• 3 pinion gear spacers

Needed to Complete

• (4) AAA batteries for the transmitter
• (4) AAA batteries for the chassis
