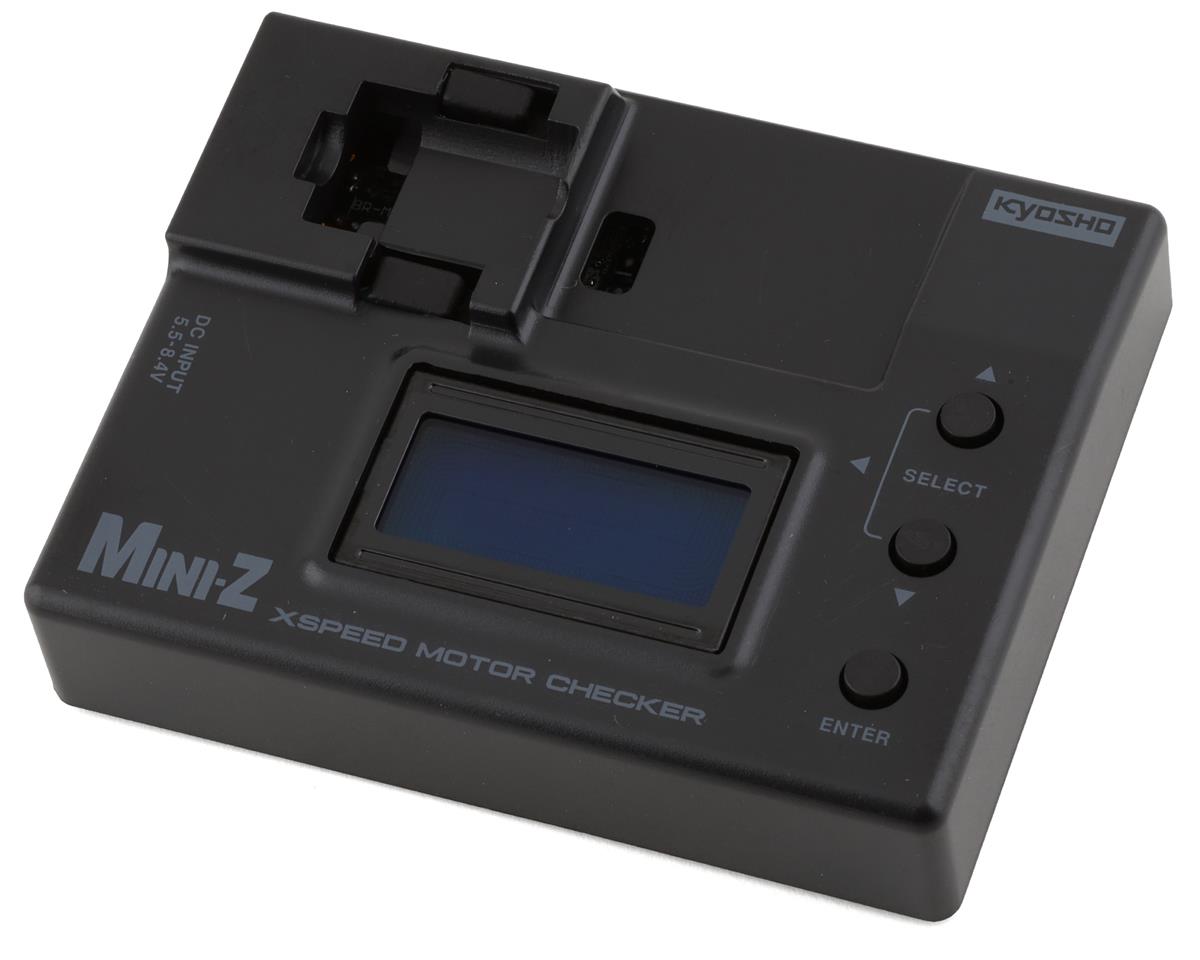

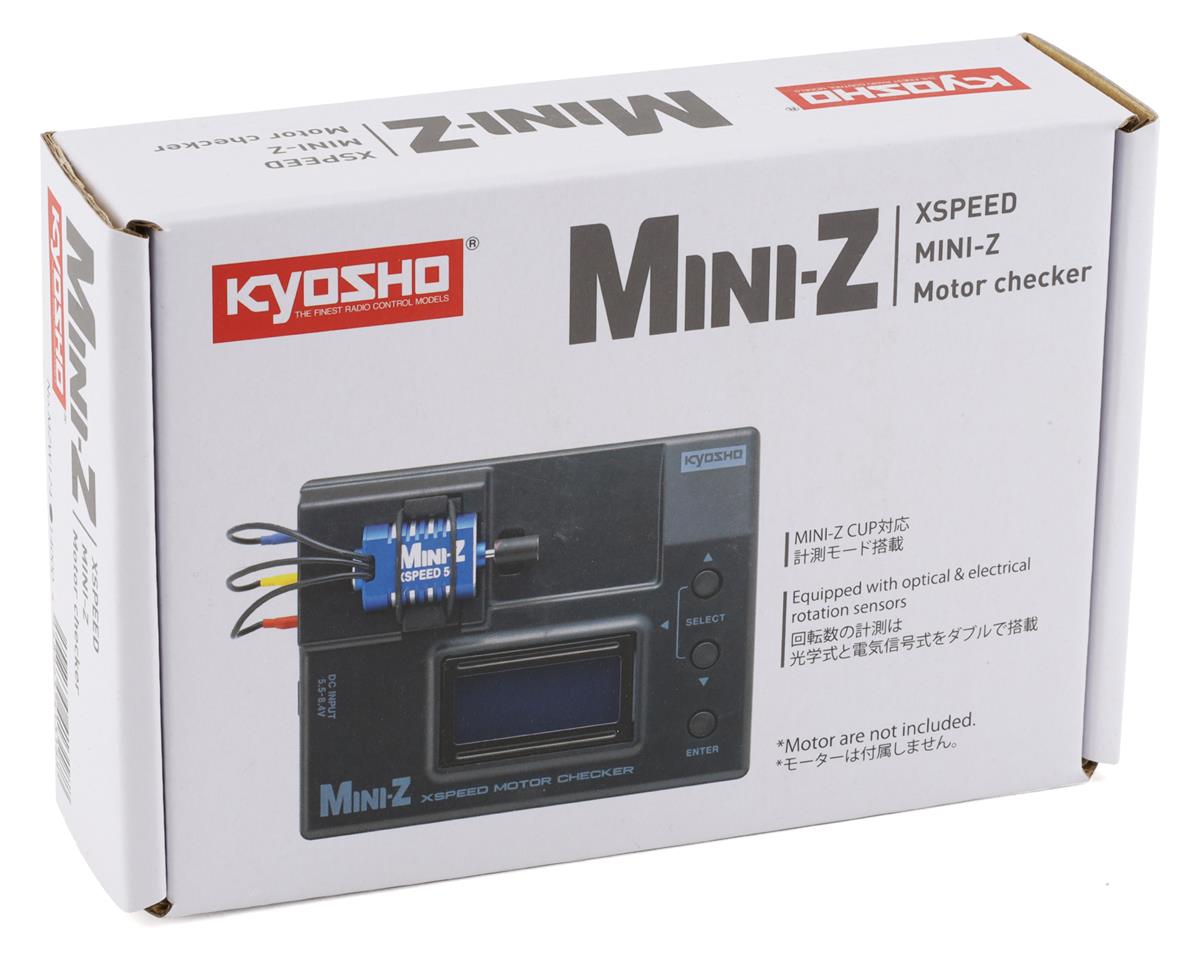

Kyosho Mini-Z X-Speed Motor Checker

The Kyosho Mini-Z X-Speed Motor Checker is designed for testing Mini-Z brushed and brushless motors. It supports brushed motor break-in, brushed motor output inspection, RPM measurement, and brushless motor output inspection.

Features

• Brushed “BREAKIN” mode displays voltage, current consumption, rotation speed (RPM), elapsed time, and motor performance.
• Brushed “CUP MODE” provides measurement for MINI-Z Cup vehicle inspection.
• Brushed/Brushless “MANUAL” mode measures motor condition at 2V to 5V in 1V increments.
• Rotation speed (RPM) and current are measured using both optical and electrical signal methods.
• Brushless “CUP MODE” provides MINI-Z Cup vehicle inspection measurement.

Compatible Motors

• Brush motor: MX016 / MZ9P / MZ9E / MZW301 / MZW301E / MD009P / MDW023
• Brushless motor: MZ504 / MZ603 / MZ604 / MZ605 / MZ606 / MZW501 / MZW503

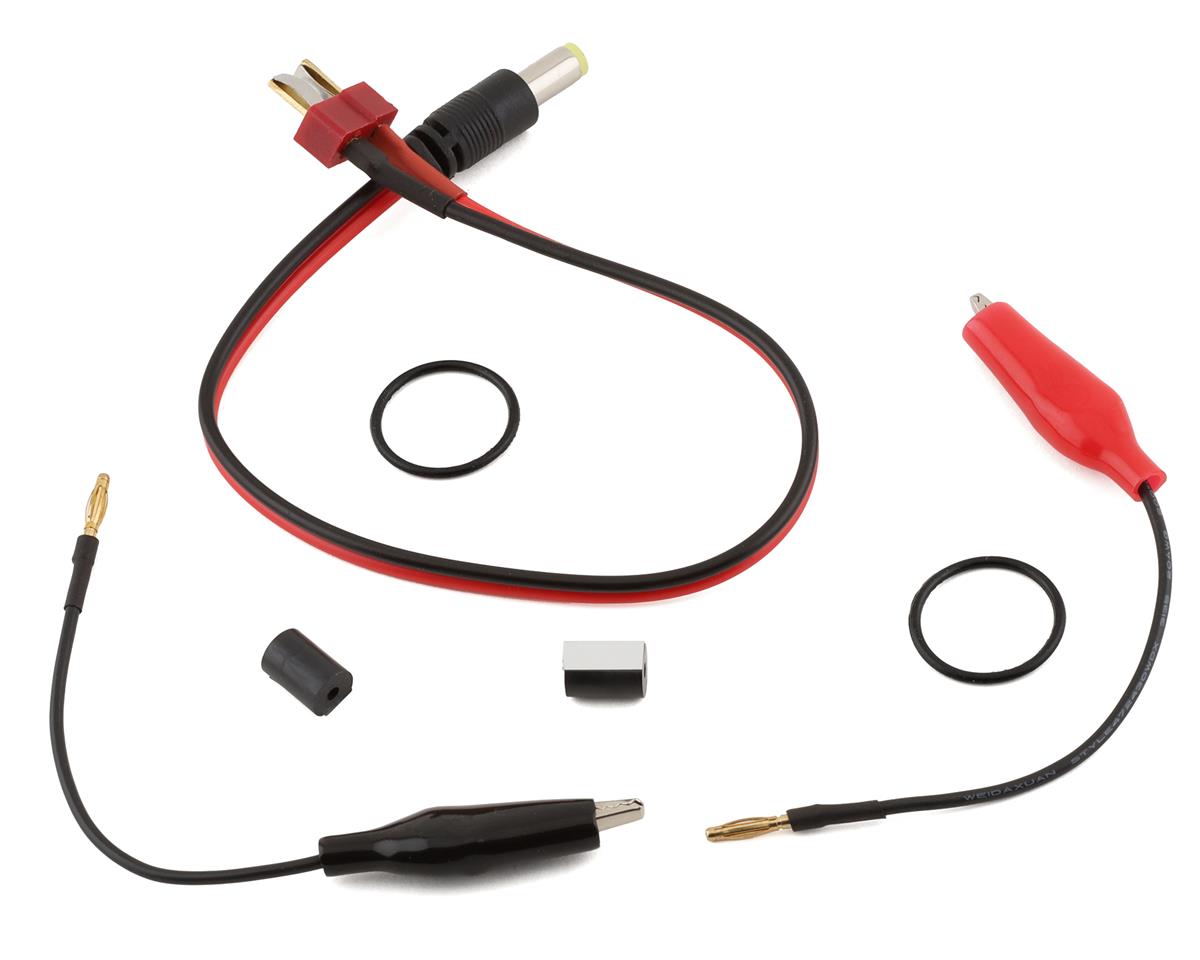

Package Contents

• One motor checker
• Two brushed leads
• Two shaft adapters
• Two O-rings
• One power cable
