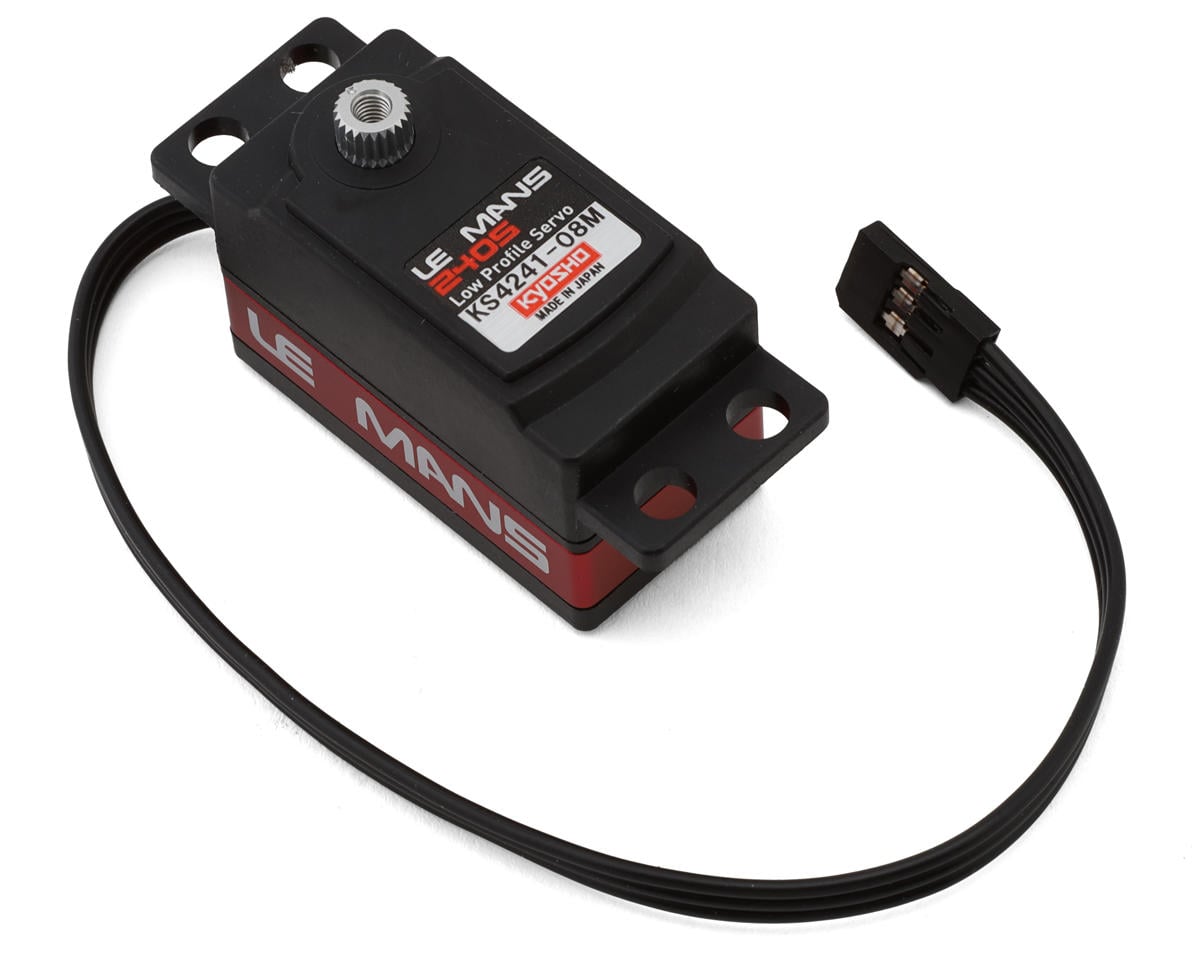

Kyosho Le Mans 240S Low Profile Servo (KS4241-08M)

The Kyosho Le Mans 240S Low Profile Servo KS4241-08M delivers responsive control for 1/12 to 1/8 on-road and off-road RC applications. It features a 0.08 sec/60° operating speed at 7.4V, 113.8 oz-in (8.2 Kg-cm) dynamic torque, a CNC aluminum case, dual ball bearings, digital circuitry, and a hybrid steel/brass/aluminum/plastic gear system.

Features

• Operating speed of 0.08 sec/60° at 7.4V
• Dynamic torque of 113.8 oz-in (8.2 Kg-cm) at 7.4V
• CNC aluminum case
• Steel/brass/aluminum/plastic gear material
• Brushed coreless motor
• Digital circuitry
• Dual ball bearings

Specifications

• Application: 1/12 to 1/8 On-road & Off-Road
• Input Voltage: 6-7.4V
• Operating Speed @ 6.0V: 0.09 sec/60°
• Operating Speed @ 7.4V: 0.08 sec/60°
• Dynamic Torque @ 6.0V: 97.2 oz-in (7.0 Kg-cm)
• Dynamic Torque @ 7.4V: 113.8 oz-in (8.2 Kg-cm)
• Output Shaft Spline: 23T
• Dimensions: 1.59x1.04x0.82in (40.5x26.5x21.0mm)
• Weight: 1.48oz (42.1g)

Includes

• (1) Le Mans 240S Low Profile Servo
