Kyosho EasyLap Digital Timing System

The Kyosho EasyLap Digital Timing System provides lap counting for RC models of all sizes on indoor or outdoor circuits. It supports unlimited cars and uses personal transponders with unique IDs, including compatibility with Robitronic transponders.

Features

• For indoor and outdoor tracks
• Supports unlimited cars
• Personal transponders with unique IDs
• Compatible with Robitronic transponders
• Easy Lap transponder KYOET001X measures 10.5x9.5x5.8mm and is lightweight
• Software support for Windows systems using LiveTime or Zround
• USB support
• Receiver modules feature Power LED and Action LED

System Requirements

• Windows 2000, XP, Vista, Windows 7, Windows 8 or 8.1
• 32/64-Bit System Support
• One available USB 2.0 port
• Drivers must be installed

Installation

Build the bridge from PVC pipe, wood or another material. The recommended height from the sensor to the ground is 16 inches/40.6cm.

Includes

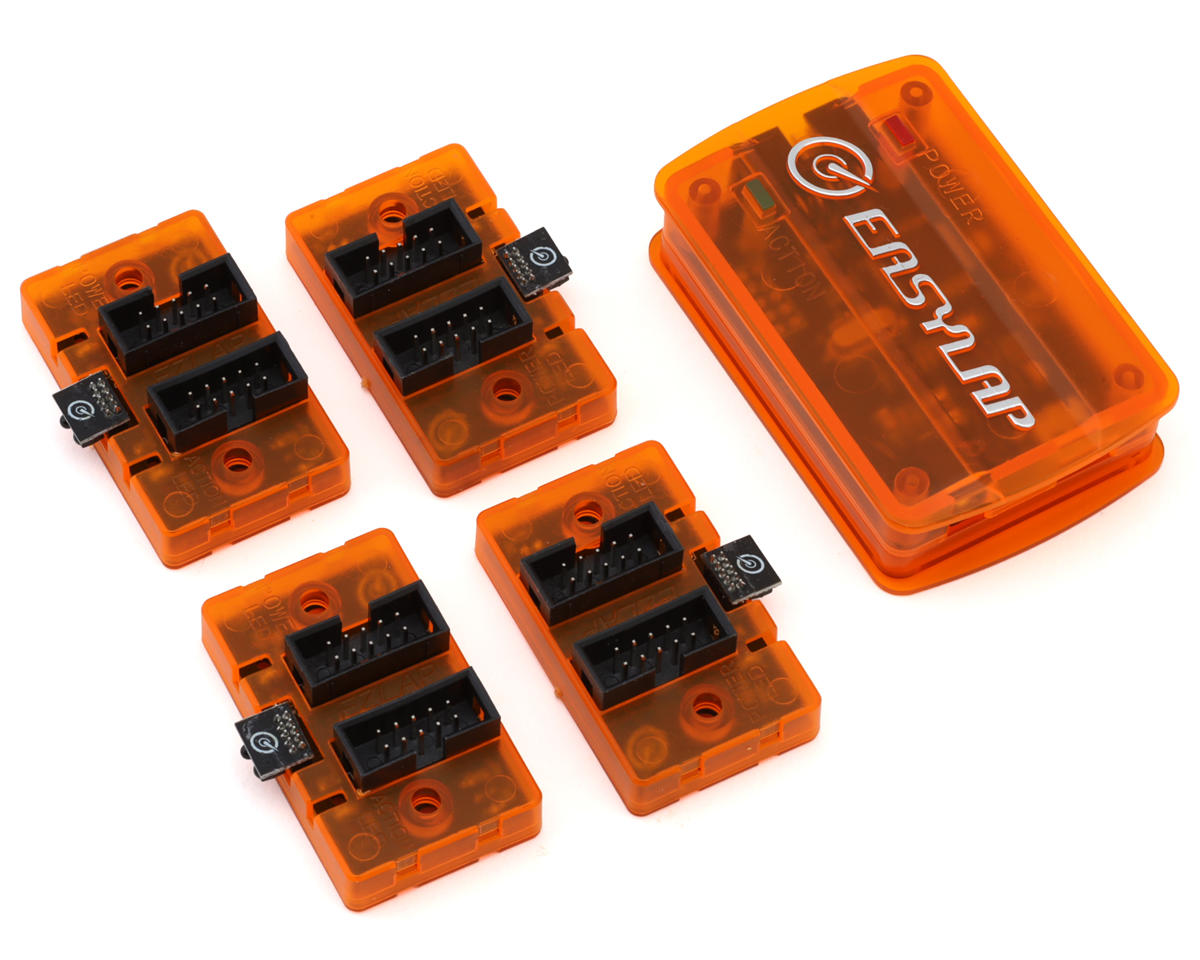

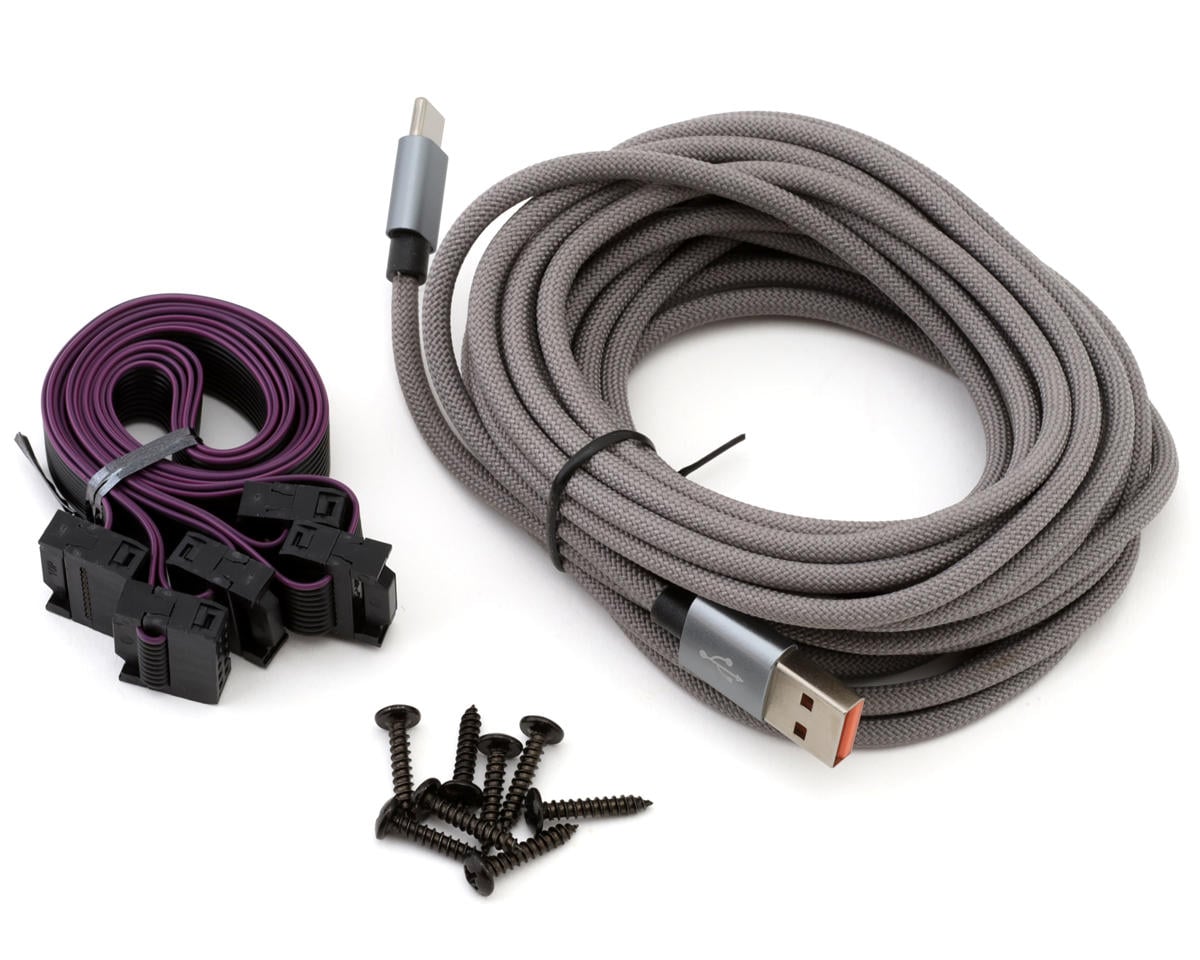

• 1 USB PC-Interface with data cable
• 4 Receiver Modules for tracks with a maximum width of 4 feet/1.2 meter

Transponders are not included.
