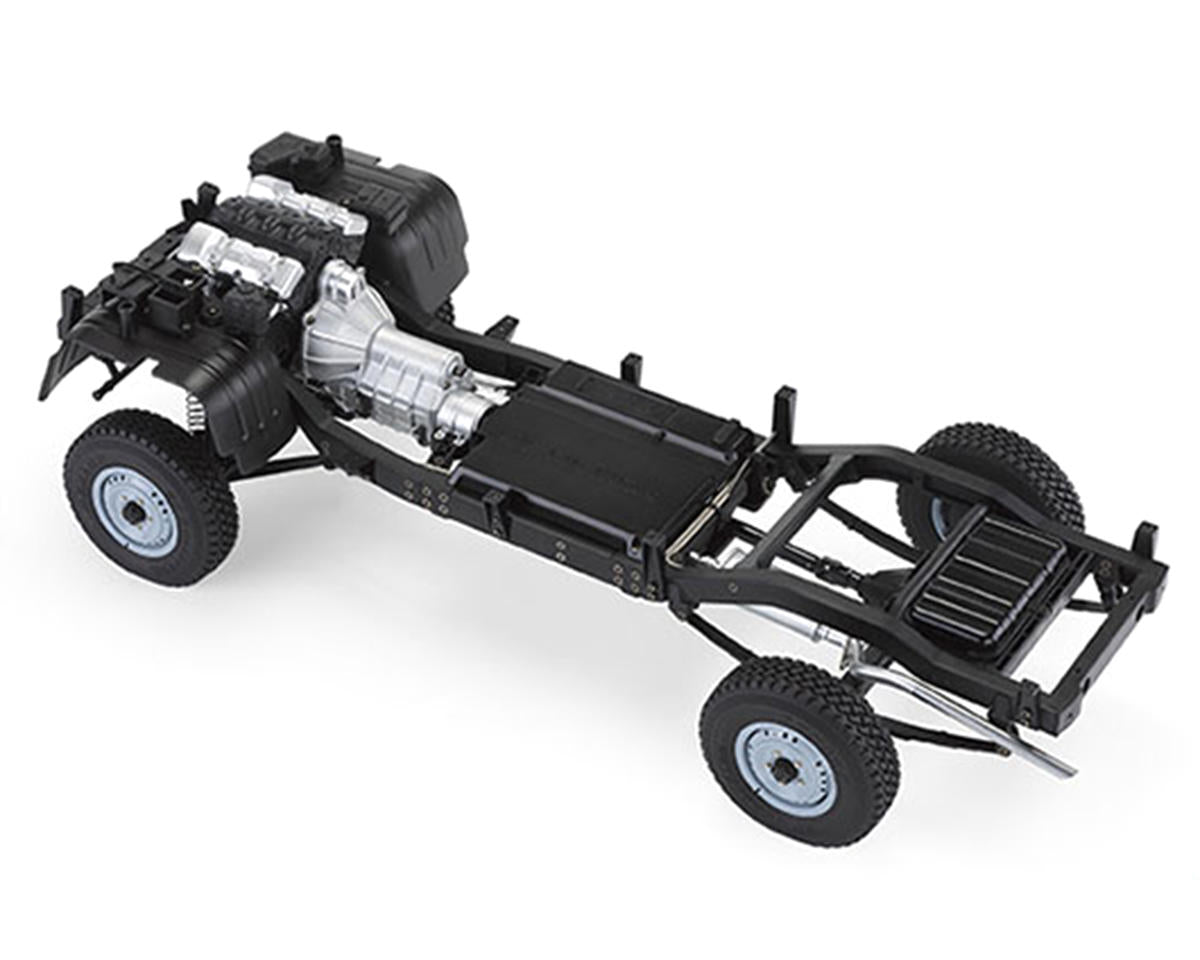

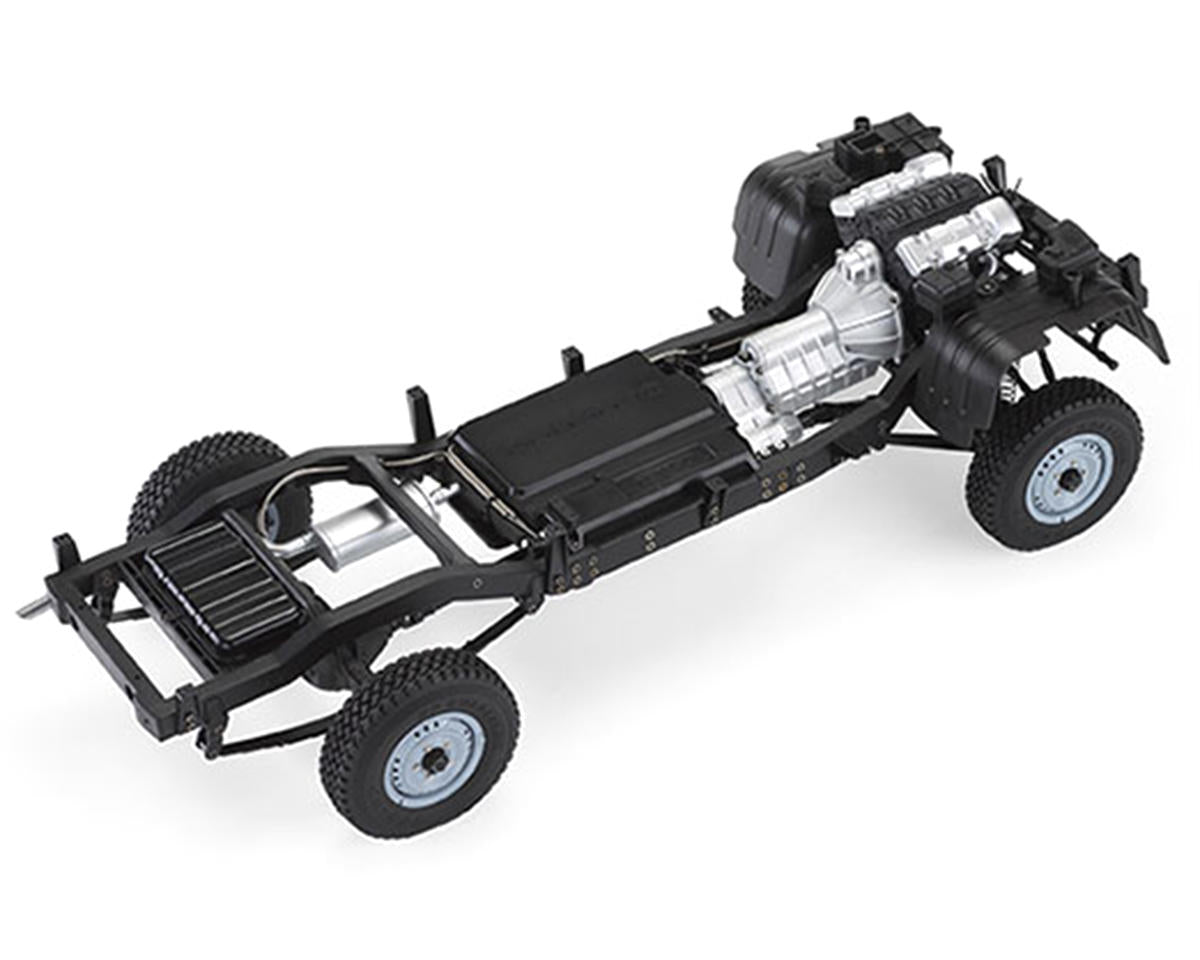

Killerbody Mercury 1/10 Scale Trail Truck Partially-Assembled Chassis Kit

The Killerbody Mercury 1/10 Scale Trail Truck Partially-Assembled Chassis Kit is a scale-focused platform designed to fit the Killerbody LC70 hard body kit. It features pre-assembled axles and transmission, a 2-speed transmission with locking/unlocking differentials, switchable 4WD/2WD drive, and a chassis-mounted servo layout.

Features

• Pre-assembled axles and transmission
• Specially designed to fit the Killerbody LC70 hard body kit
• 2-speed transmission with locking/unlocking differentials mechanism
• 4WD and 2WD switchable
• CMS (Chassis Mounted Servo)
• 3-Link front suspension
• Leaf springs rear suspension with damper shocks
• All metal gears
• 1.65" aluminum scale beadlock wheels

Specifications

• Scale: 1/10
• Length: 490mm
• Width: 200mm
• Height: 200mm
• Wheelbase: 313mm
• Ground Clearance: 25mm
• Approach Angle: 43 degree
• Departure Angle: 33 degree
• Weight: 1500g
• Drive: 4WD/2WD Switchable
• Assembly Level: Partially assembled

Includes

• (1) Mercury Chassis Kit
• (4) Beadlock Wheels
• (4) Tire
• Instruction Manual

Needed to Complete

• (1) +6 Channel Transmitter/Receiver System
• (1) Steering Servo
• (3) Shift Servos
• (1) 1/10 ESC
• (1) 540 Size Motor
• (1) LiPo Battery and Charger

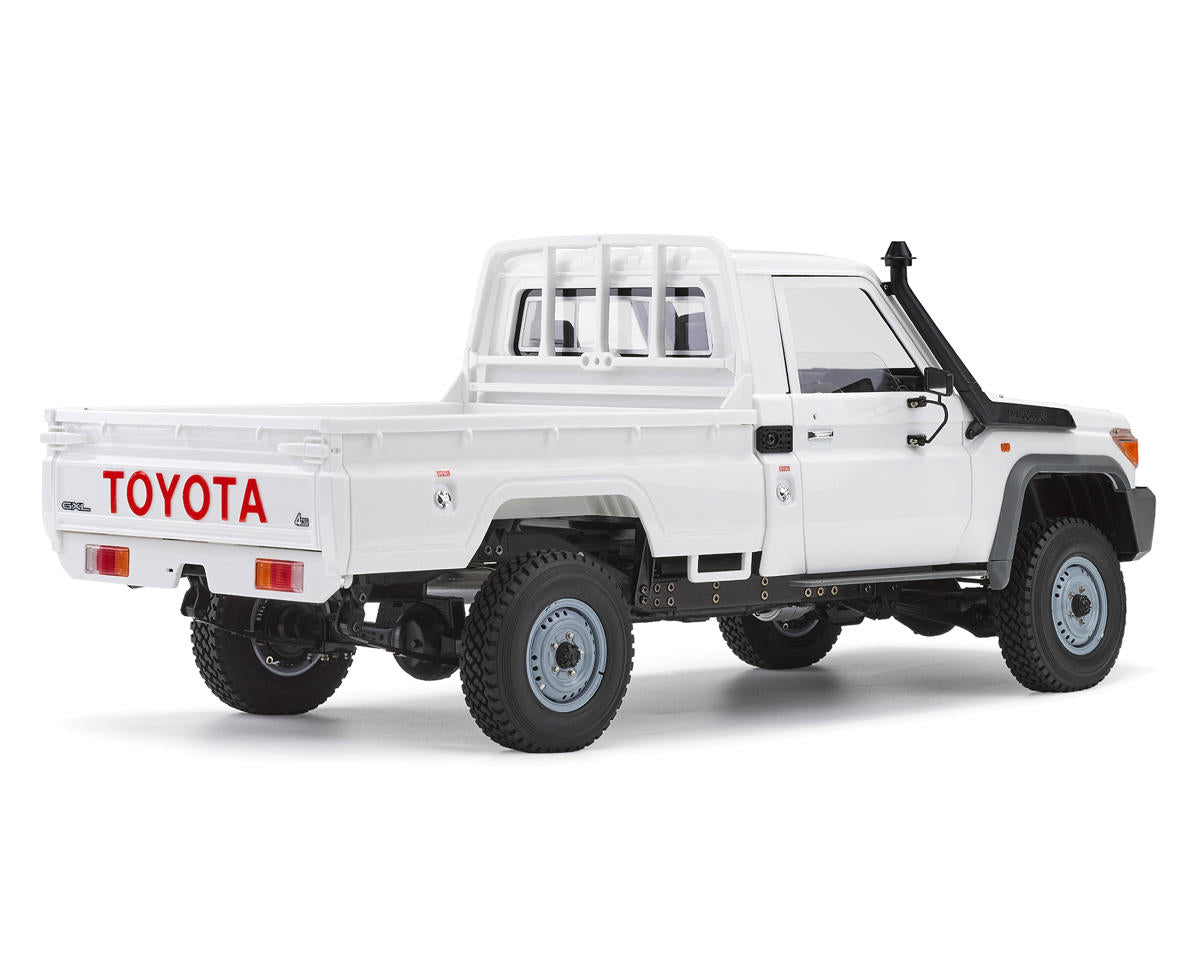

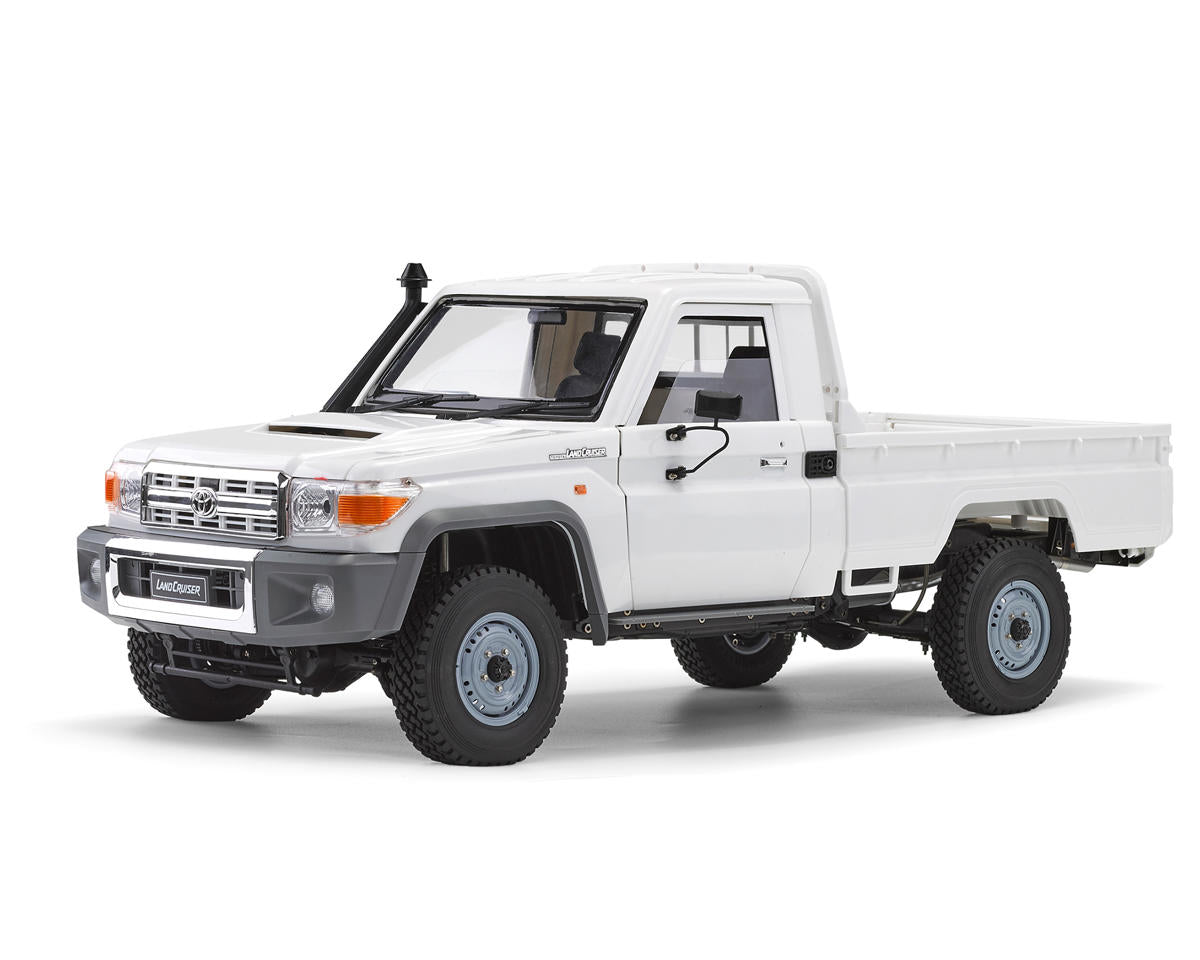

The body is not included. The painted LC70 body shown in photos is sold separately.
