Junsi iCharger X6 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (6S/30A/800W)

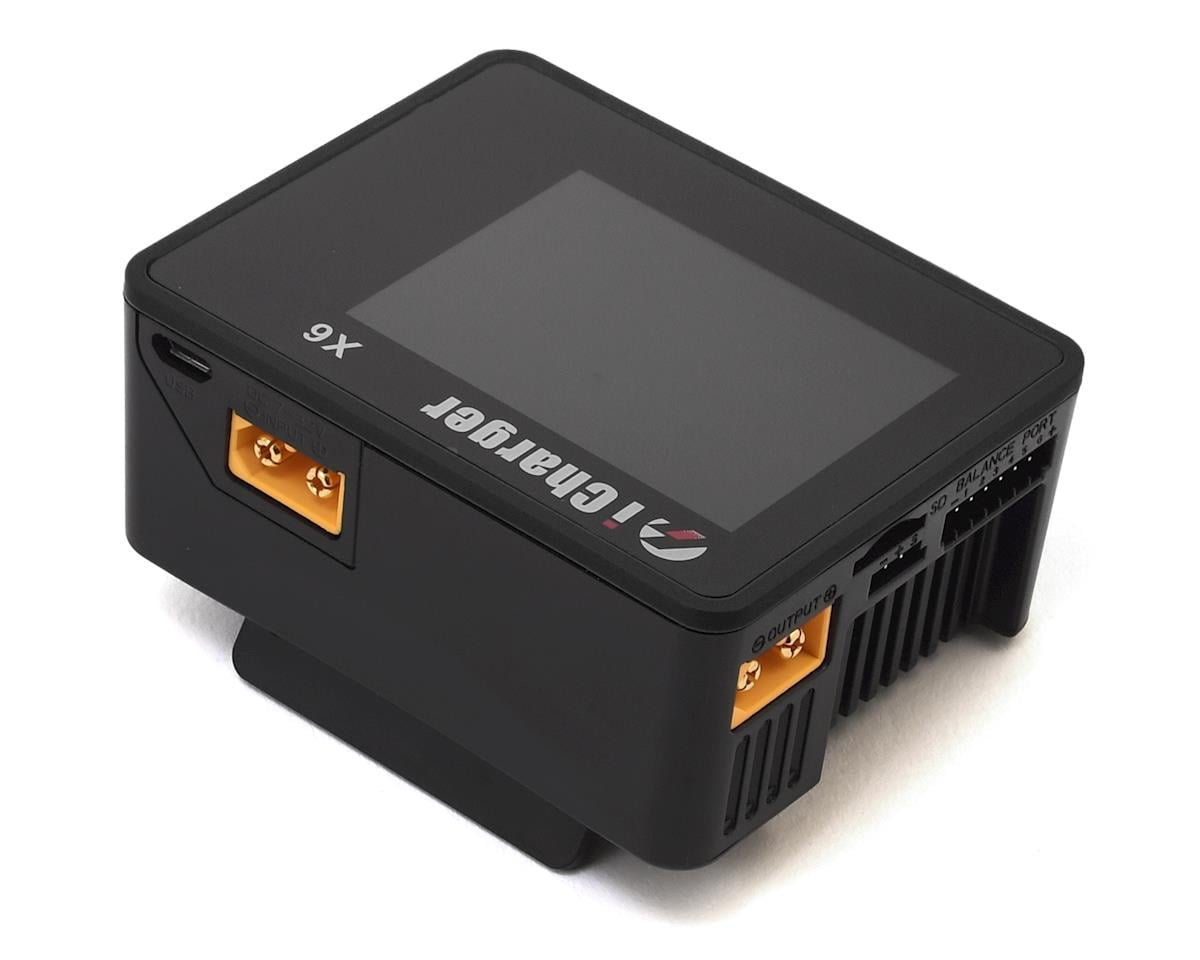

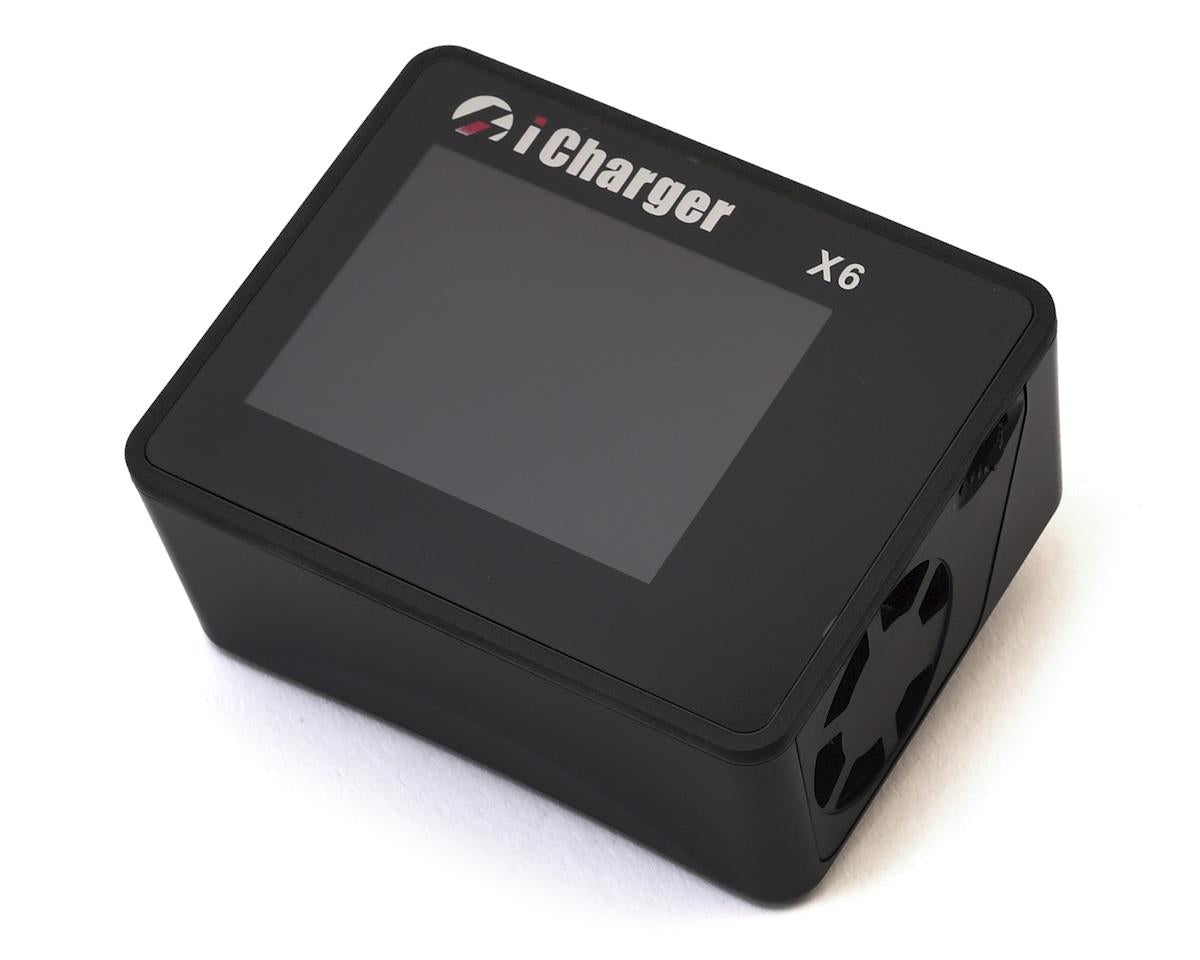

The Junsi iCharger X6 Special Edition is a DC battery charger with an 800W maximum charge capacity and charging or discharging current up to 30A. Its black case houses a 2.4" IPS LCD screen, advanced synchronous buck-boost DC/DC conversion, and the Junsi user interface.

Features

• Supports 6S LiPo, LiLo, LiFe, LiHV, LTO and NiZn batteries.
• Supports 1-20S NiMH/NiCd batteries and 1-12S Pb batteries.
• Maximum charge power capacity of 800W.
• Maximum charge/discharge current of 30A.
• Maximum regenerative discharge power capacity of 800W.
• Maximum extra discharge power capacity of 900W @30V/30A.
• 2.4" IPS LCD screen displays current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature.
• Supports self-discharge, regenerative to input discharge and lithium battery extra expanding discharge.
• Measures the internal resistance of the entire battery pack and individual lithium battery cells, both offline and online.
• Stores 32 parameter sets and supports data import/export to an SD card.
• Supports hardware program upgrades through the USB port or SD card.
• Supports Junsi Console software for displaying, plotting and analyzing charge and discharge data.
• Protection includes reversed polarity, input voltage/current, battery temperature, charging capacity, overrun time and maximum power protection.
• Intelligent fan control uses the internal temperature sensor to adjust fan speed.
• Internal temperature protection automatically reduces output power when the Power Reduce temperature is exceeded and shuts down when the Shut-down temperature is exceeded.

Specifications

• Input voltage range: 10.0-32.0VDC
• Maximum input current limit: <35A
• Maximum charge/discharge current: 30A
• Maximum charge power capacity: 800W
• Maximum discharge power capacity: 30W
• Maximum regenerative discharge power capacity: 800W
• Maximum extra discharge power capacity: 900W @30V/30A
• Maximum current drain for balancing: >2A
• Net weight: 168g
• Dimensions: 83x65x37 ±0.5mm

Includes

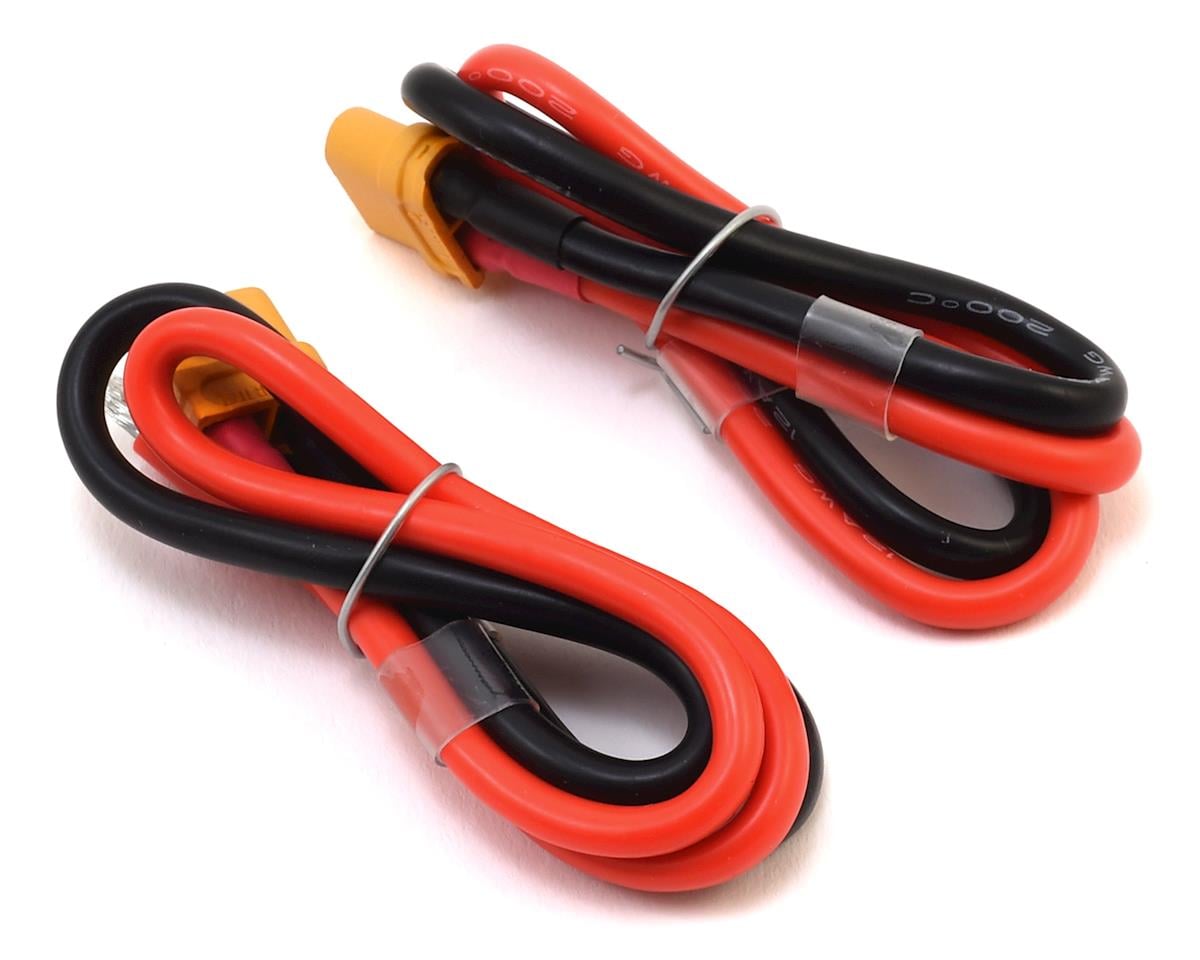

• (2) Input/Output Cables
• (1) CD Rom Manual

Warning: This charger is not compatible with Traxxas iD equipped LiPo Batteries. Only Traxxas iD chargers properly charge Traxxas iD LiPo Batteries. Never use this charger to charge a Traxxas iD equipped LiPo Battery.
