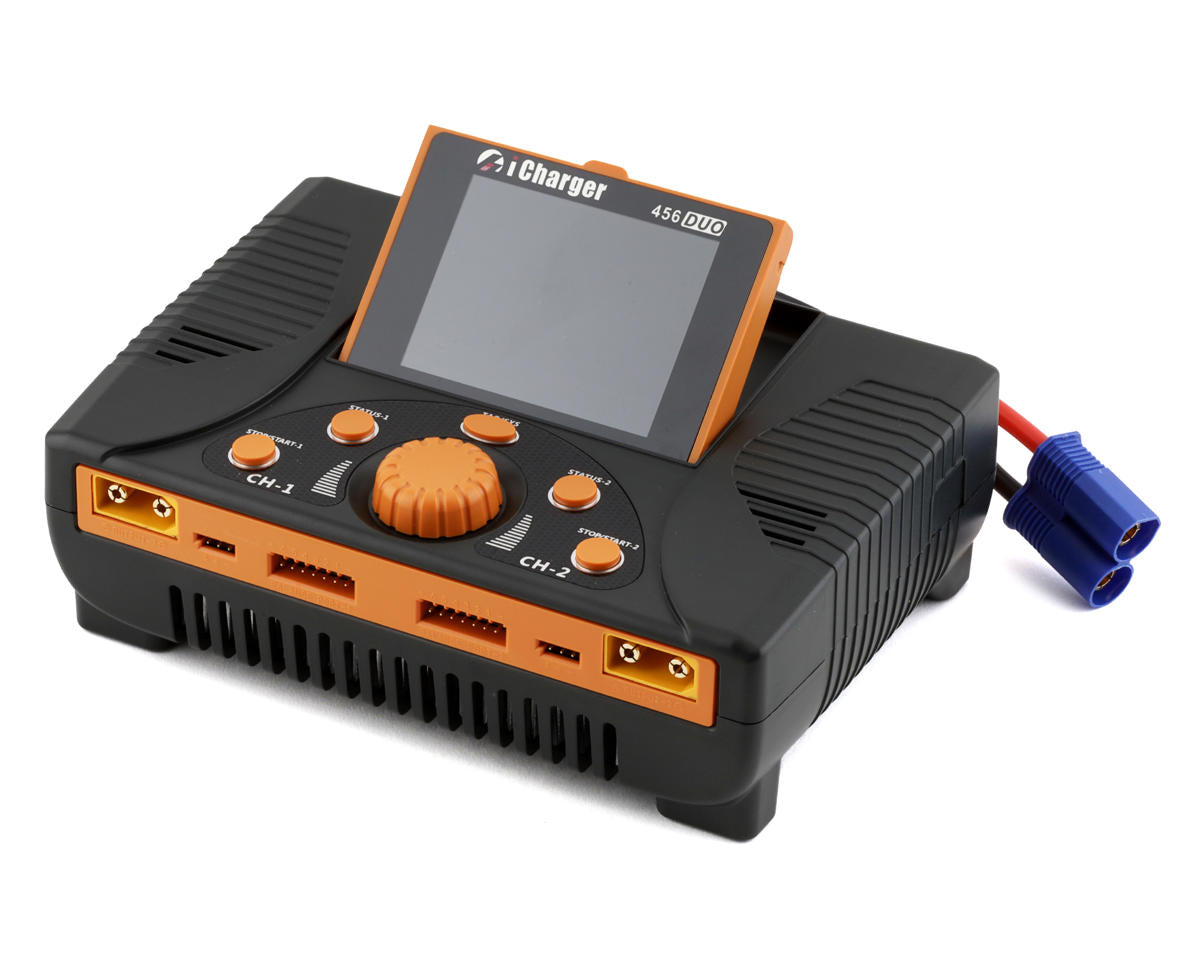

Junsi iCharger 456DUO Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (6S/70A/2200W)

The Junsi iCharger 456DUO is a high-power DC battery charger with up to 2200W peak charging power and up to 70A charging and discharging in synchronous mode. It supports up to 6S LiPo, LiLo, LiFe, LIHV, NiZn, LTO, NiMH, NiCd and Lead-Acid batteries.

Features

• High-efficiency synchronous buck boost technology
• 2200W peak charging power with up to 70A charging and discharging in synchronous mode
• Internal temperature sensors control fan speed
• Thermal shutdown for added protection
• Stores up to 64 battery profiles
• 2.8" IPS LCD screen displays current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature

Specifications

• Weight: 920g
• Dimensions: 171x118x57mm
• Input Voltage Range: 10-49VDC
• Maximum Input Current Limit: 50A x2 (70A Bridged)
• Maximum Charge/Discharge Current: 45A x2 (70A Bridged)
• Maximum Charge Power Capacity: 1400W x2 (2200W Bridged)
• Maximum Discharge Power Capacity: 80W x2 (140W Bridged)
• Maximum Regenerative Discharge Power Capacity: 1400W x2 (2200W Bridged)
• Maximum Extra Discharge Power Capacity: 1400W x2 @32v/45A (2200W Bridged)
• Maximum Current Drain for Balancing: 2A x2 (4A Bridged)

Important Warning

This charger is not compatible with Traxxas iD equipped LiPo batteries. Only Traxxas iD chargers properly charge Traxxas iD LiPo batteries. Never use this charger to charge a Traxxas iD equipped LiPo battery.
