JConcepts Aluminum Camber Gauge (85mm) (Black)

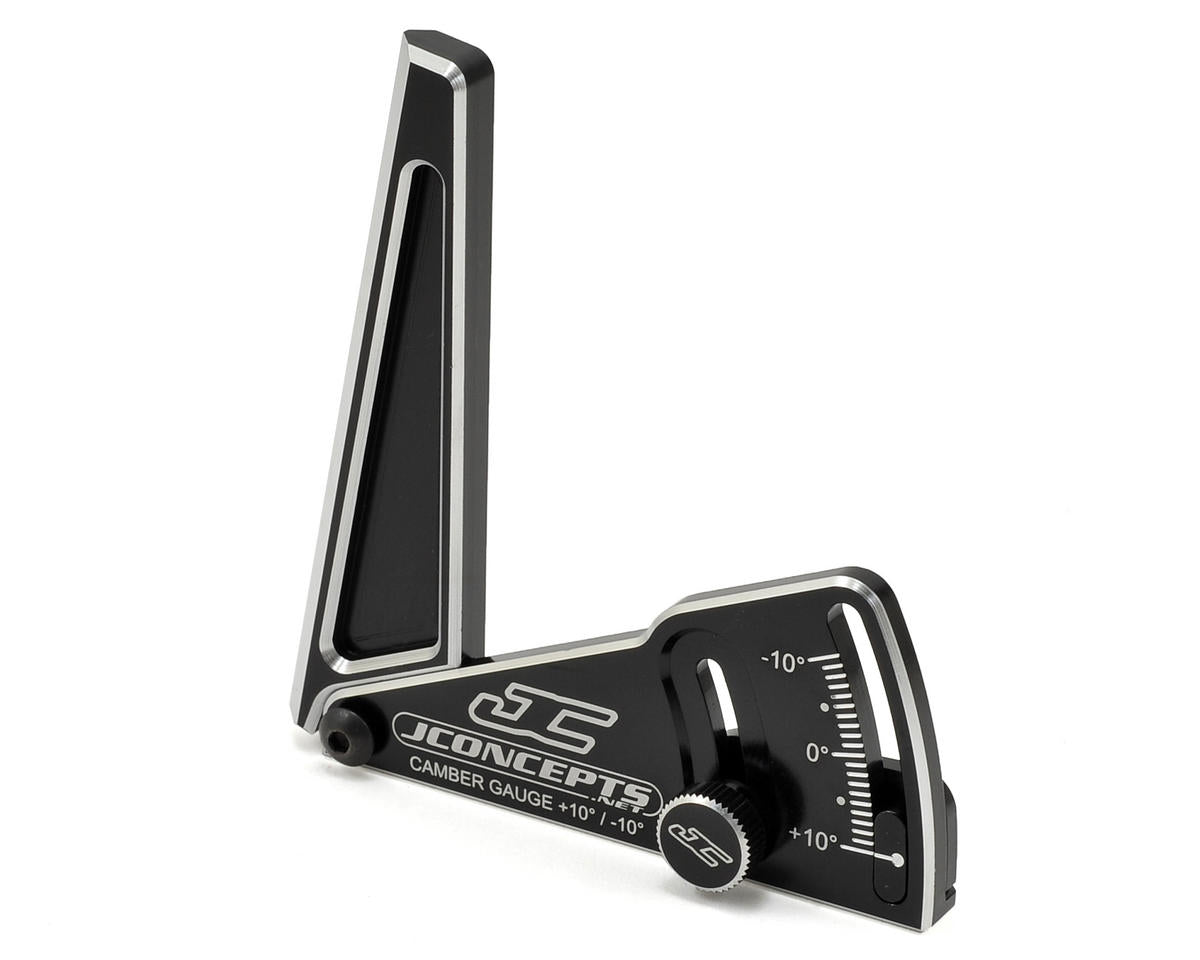

The JConcepts Aluminum Camber Gauge provides precise camber setup for off-road racing vehicles. This 85mm gauge is machined from billet aluminum and features laser-etched measurements from -10 to +10 degrees.

Features

• Black aluminum construction
• Pre-assembled with 4mm hardware
• Two pivoting pieces secured by a thumbscrew
• Laser-etched graduated measurements from -10 to +10 degrees
• Highly chamfered alignment arm for tire and wheel contact
• Chamfered silver edging

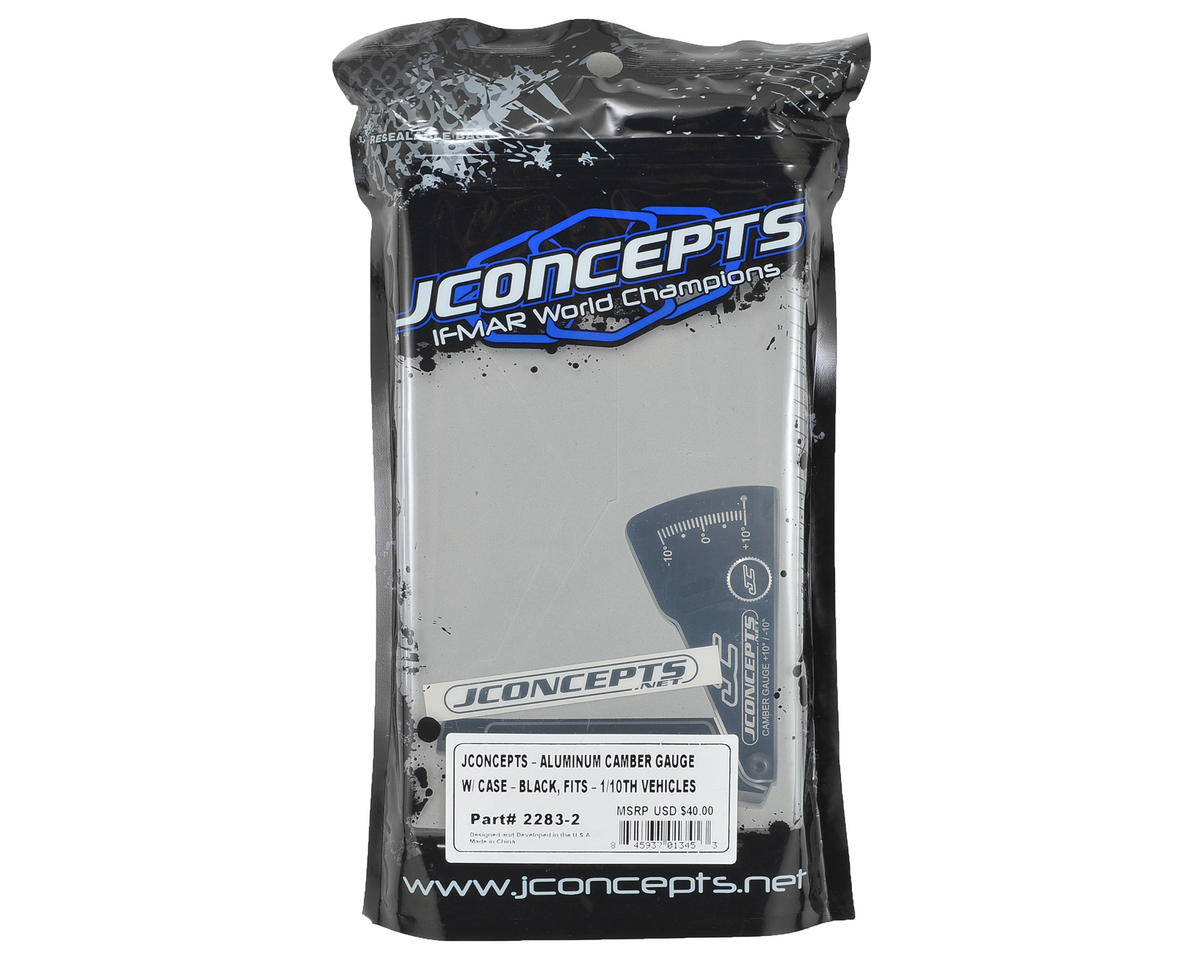

• Latch box with foam insert included

Using the Gauge

Place the vehicle on a flat surface at the correct ride height. Position the gauge at the base of the tire, pivot the arm until it contacts the tire or wheel, secure the thumbscrew, and read the etched measurement. Adjust the camber link turnbuckles as needed and repeat for all four corners. Changing ride height also changes camber, so camber should be re-adjusted after ride-height changes.
