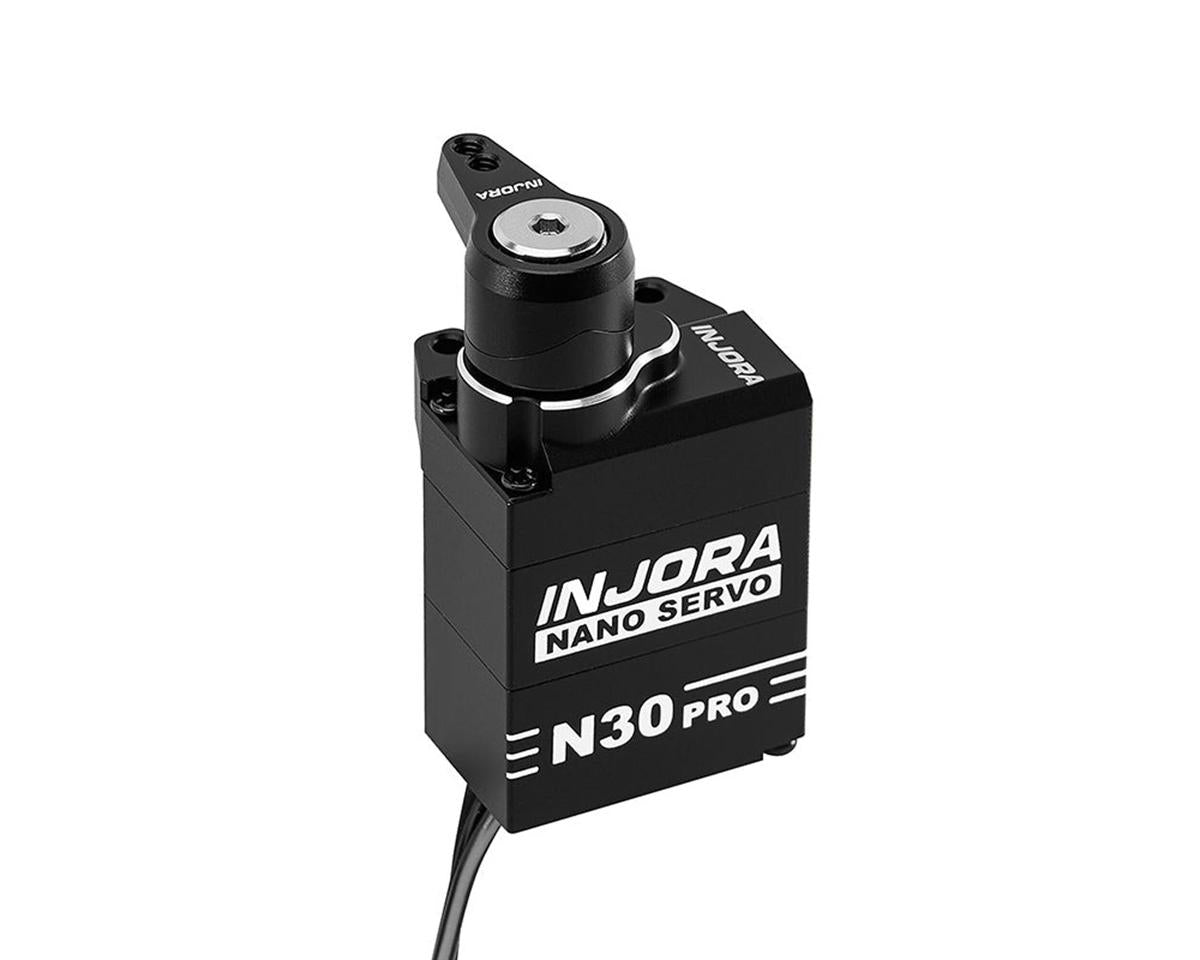

Injora SCX30 N30 Nano Pro High Torque Metal Gear Aluminum Servo w/Servo Saver

The Injora N30 Nano Pro servo is designed for the Axial SCX30, combining high torque, quick response, metal gears, and a CNC-machined aluminum case. Its spring-loaded servo saver helps provide impact protection during demanding trail use.

Features

• Designed for Axial® SCX30
• 4kgf·cm stall torque at 6V
• 0.045sec/60° no-load speed at 6V
• All-metal gear construction
• CNC-machined aluminum servo case
• Spring-loaded servo saver for impact protection
• Available with JR or ZH1.5 connector
• PWM control signal

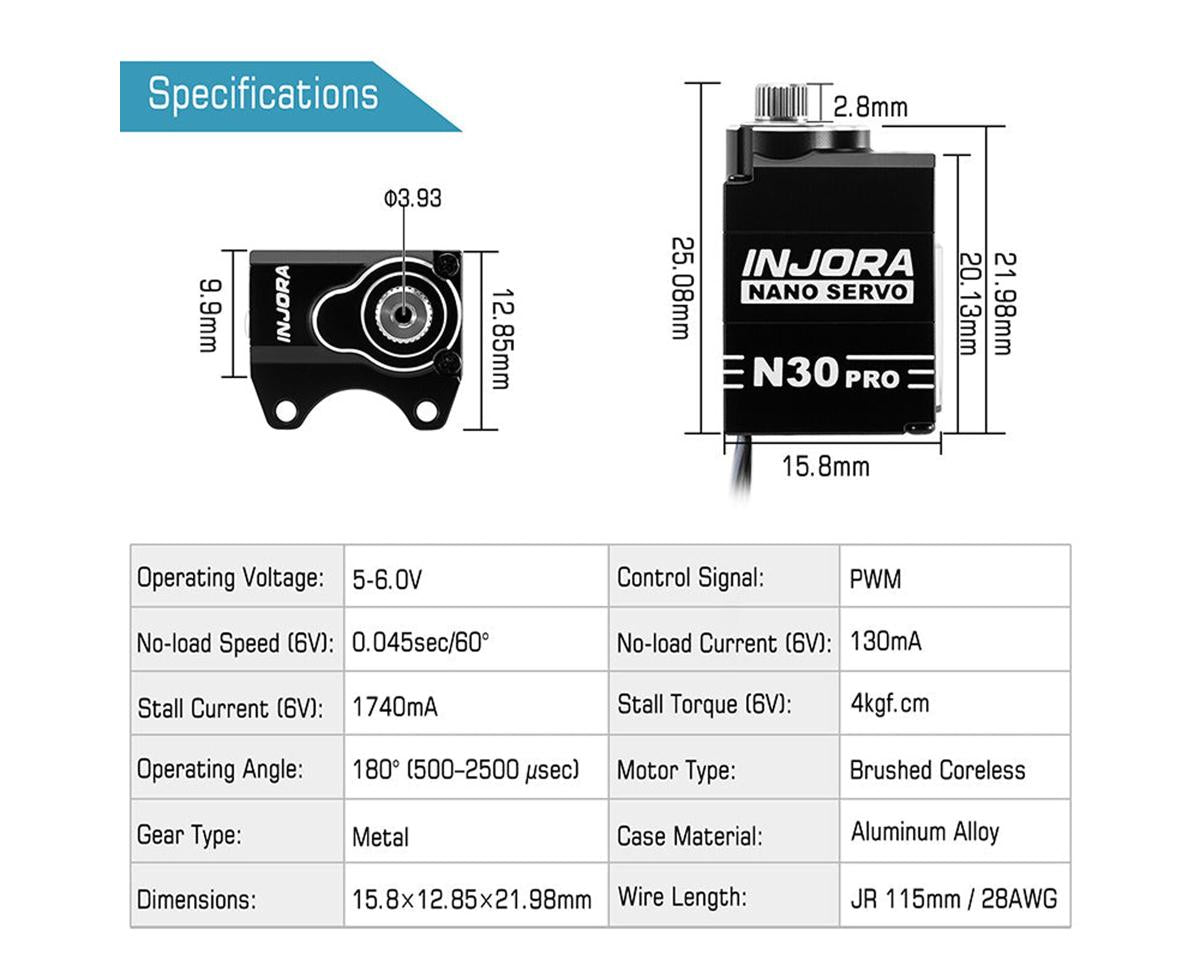

Specifications

• Application: SCX30
• Input Voltage: 5-6.0V
• Operating Speed @ 6.0V: 0.045sec/60°
• Dynamic Torque @ 6.0V: 55.55oz-in (4kg-cm)
• Pulse/Frequency: -
• Motor Type: Brushed - Coreless
• Output Shaft Spline: -
• Gear Material: Metal
• Dimensions: 0.86x0.59x0.62in (21.98x15.8x12.85mm)
• Weight: 0.27oz (7.7g)

Includes

• (1) N30 Nano Pro Servo
• (1) Spring-Loaded Servo Saver
