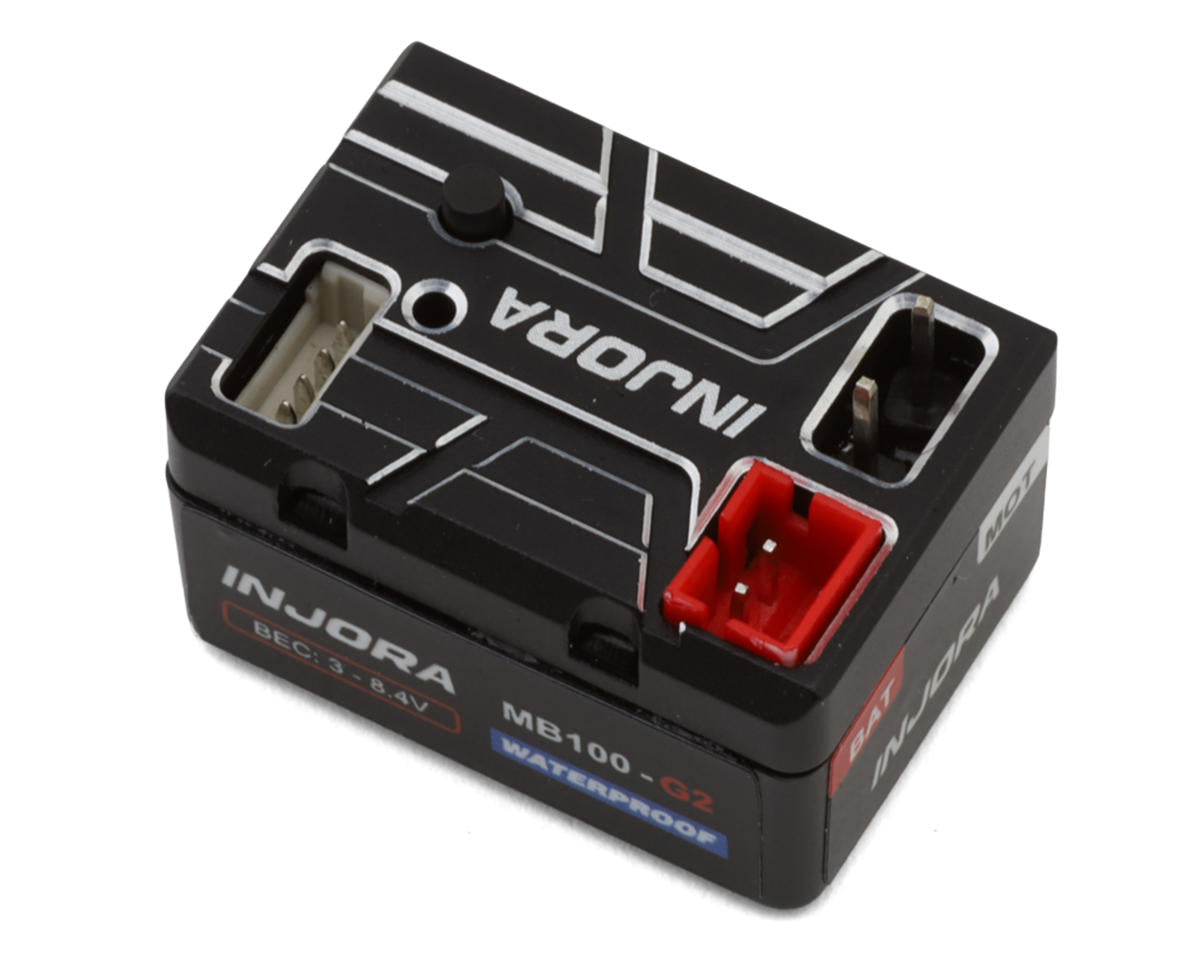

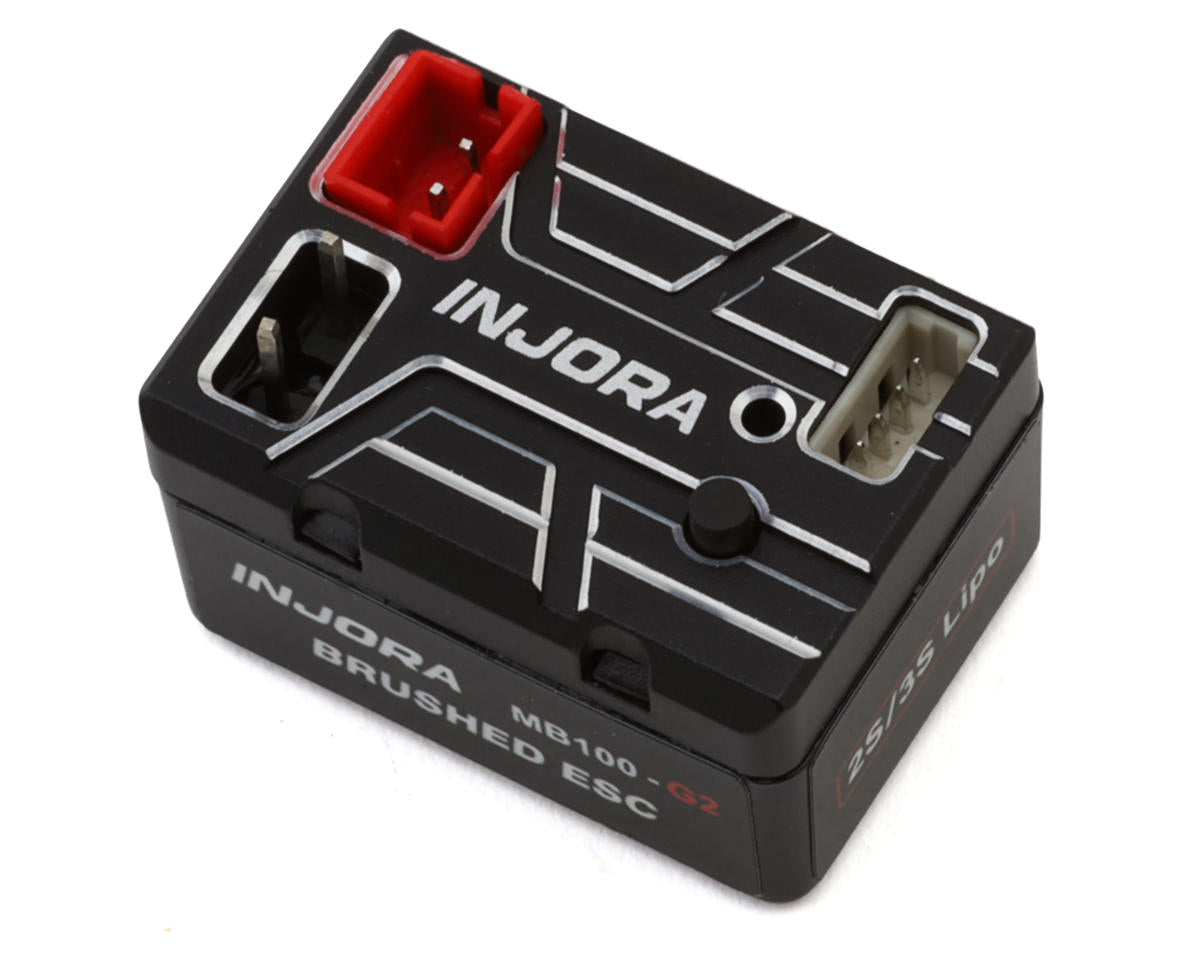

Injora MB100 G2 40A Waterproof Brushed ESC

The Injora MB100 G2 40A Waterproof Brushed ESC is a compact electronic speed control for 1/18 and 1/24 scale micro crawlers. It supports 2-3S LiPo batteries, features built-in Bluetooth programming through the Injora Link mobile app, and uses an IP67 waterproof design.

Features

• IP67 waterproof design
• Compact 10g package for easier installation
• Built-in Bluetooth for wireless tuning and real-time parameter adjustments
• Compatible with the Injora Link mobile app
• AUX channel enables on-the-fly parameter control
• Supports 030, 050, 130, 180, and 370 brushed motors
• Adjustable BEC output from 3.0V to 8.4V
• Multiple protection protocols

Specifications

• Suggested Application: Micro Rock Crawler
• Type: Brushed
• Input Voltage: 2-3S (7.4-11.1V) LiPo
• Continuous Current: 40A
• Peak Current: 100A
• BEC Voltage: (3–8.4V) Switchable
• BEC Continuous Current: 3A
• BEC Peak Current: 6A
• Battery Connector: TRX4M/JST-PH 2.0
• Programming: Wireless Via Smart App

Important Compatibility Note

Not compatible with the stock SCX24, TRX4M, and Ascent-18 radio systems. Requires a new transmitter and receiver (with CH2).

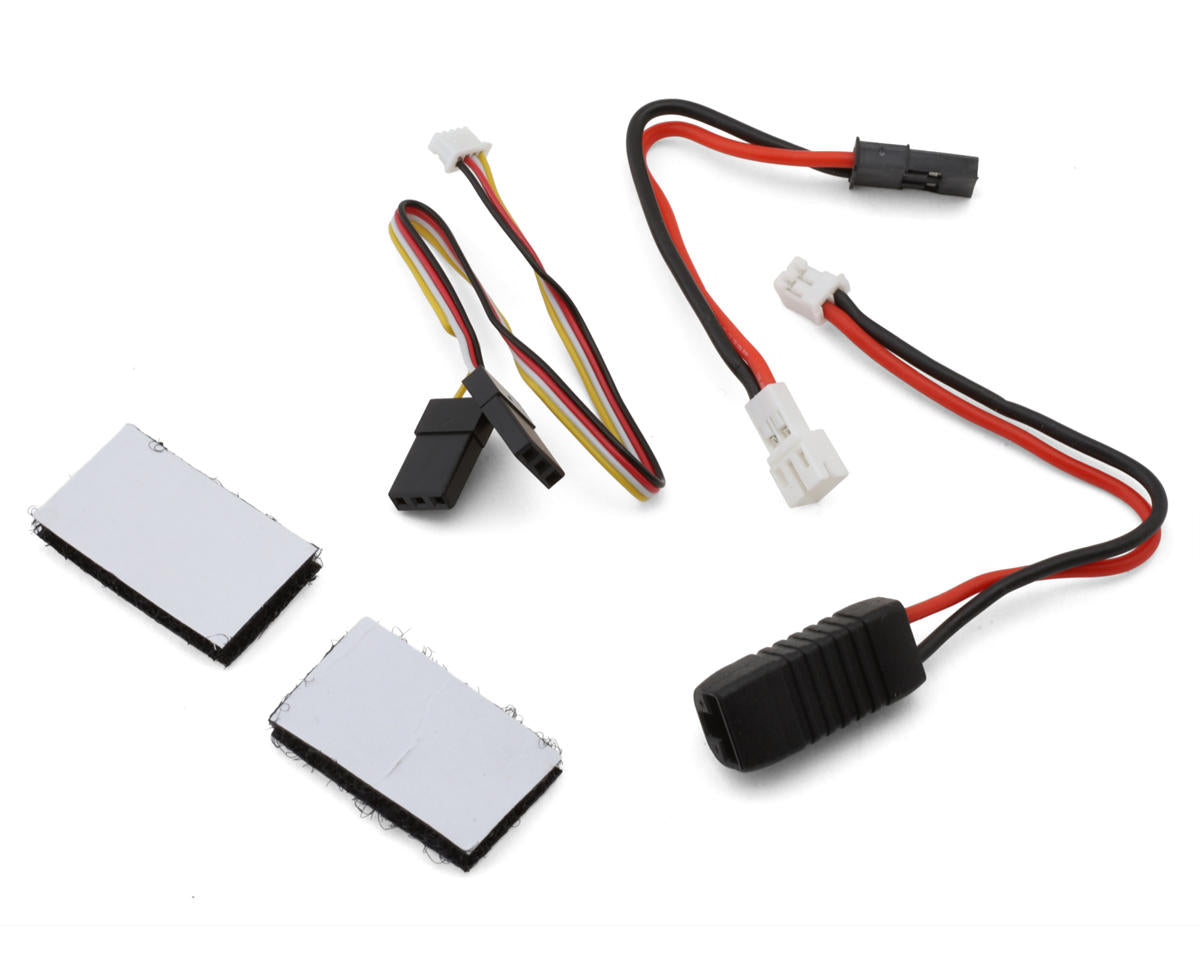

Includes

• (1) MB100 G2 Waterproof Brushed ESC 40A
• (1) TRX-4M Battery Cable Adaptor
• (1) JST-PH 2.0 Battery Cable Adaptor
• (1) Battery Cable Adaptor
• (1) ESC/Receiver Cable
• (2) Double Sided Tape
• (1) Manual
