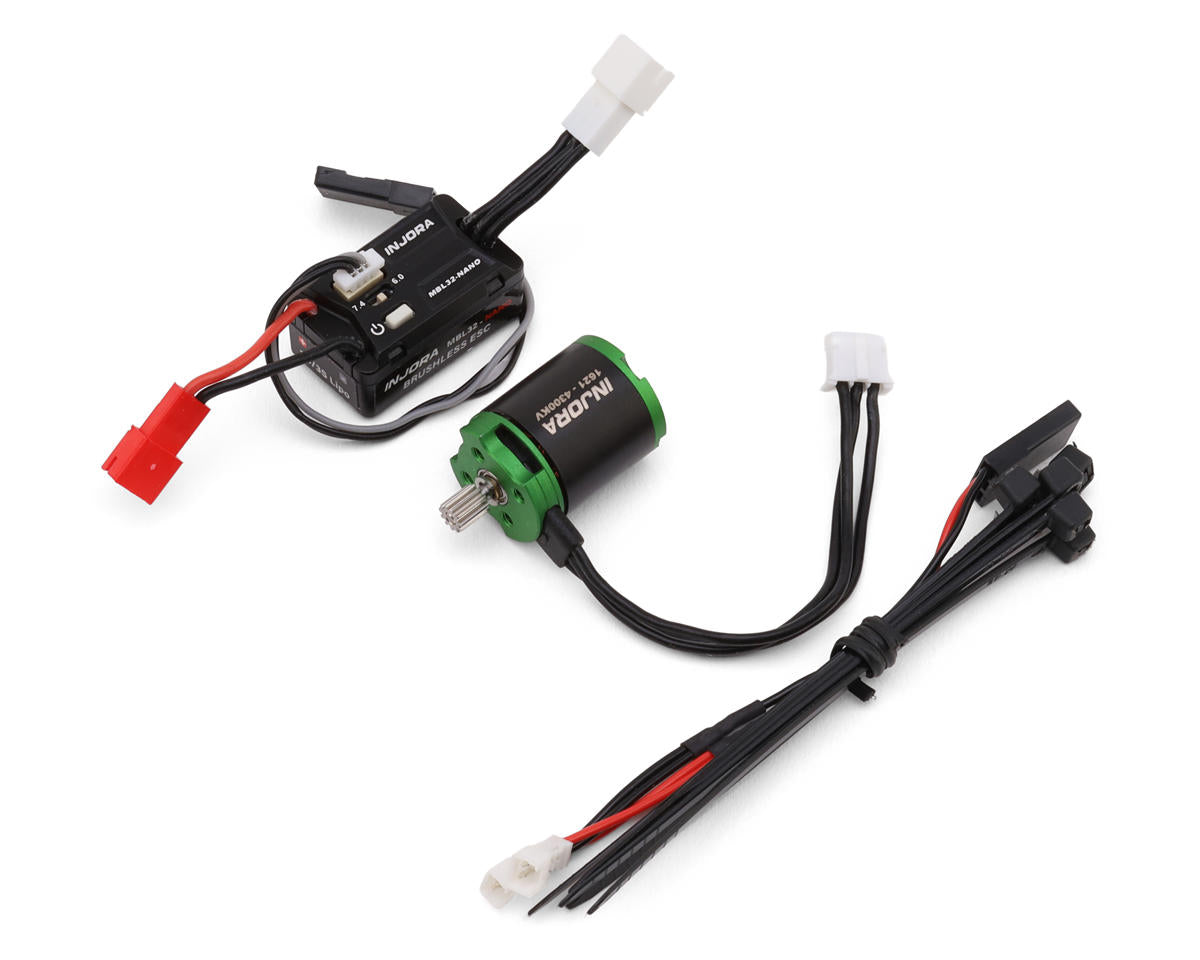

Injora Axial SCX30 MBL32-NANO ESC & 1621 Green Viper Brushless Combo

The Injora MBL32-NANO ESC and Green Viper 1621 brushless motor combo is designed specifically for the Axial SCX30 micro crawler. It combines smooth low-speed throttle control with brushless power in a compact setup.

Features

• Designed specifically for the Axial SCX30 micro crawler
• Whisper-quiet brushless operation with reduced drivetrain noise
• Ultra-smooth and linear low-speed throttle control
• Powerful performance at higher RPM
• Compact, lightweight design
• Waterproof ESC
• High-torque 12-pole 3600KV brushless outrunner motor
• 25A continuous and 45A burst ESC current capability
• 5.5V/7.4V BEC with 3A continuous current
• Reinforced motor wiring with protective sleeve

Specifications

• Suggested Application: 1/30 Rock Crawler
• Motor Type: Brushless Sensorless
• Input Voltage: 2S (7.4V) LiPo
• Battery Connector: Ph2 3-pin
• Programming: PC Programming via USB
• kV Rating: 3600kV
• Slots: 9
• Poles: 12
• Output Shaft: 0.066in (1.7mm)
• Dimensions: 0.61x0.84in (15.5x21.5mm)
• Weight: 0.52oz (14.9g)

Includes

• (1) MBL32-Nano Brushless ESC
• (1) Green Viper 1621 Brushless Outrunner Motor

Needed to Complete

• (1) Receiver

Tech Note: Due to the kV rating of the motor, this ESC should only be used with 2S LiPo batteries. The setup is pre-configured and ready to run with no programming needed; however, it requires the use of a standalone receiver.
