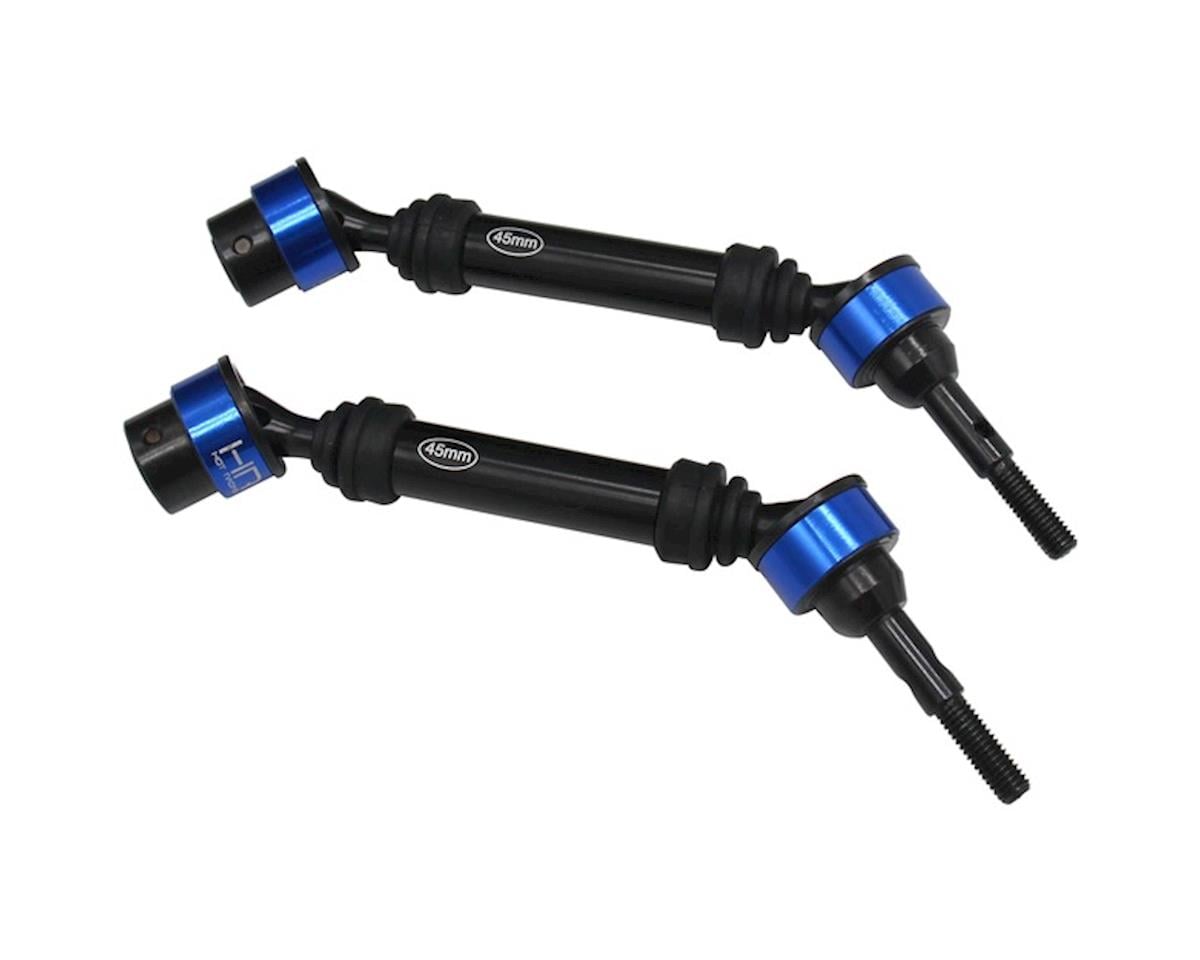

Hot Racing Traxxas Maxx Metal CV Splined Drive Shaft (Blue) (2)

Upgrade the front or rear of your Traxxas 1/10th scale Maxx monster truck with Hot Racing’s metal CV splined drive shaft assemblies. This set features CNC machined #45 hardened carbon steel CVs, drive hubs, male slider splines and stub axles, plus a CNC machined aluminum slider tube.

Features

• Blue anodized aluminum pin capture rings with rubber o-rings
• Rubber dust cover boots
• Replaces factory front or rear driveshaft axles
• Splined star drive CVD axle design

Specifications

• Collapsed length (overall): 140mm
• Extended length (overall resulting in zero shaft engagement): 156mm
• Collapsed length (wheel pin to outdrive pin): 118mm
• Extended length (wheel pin to outdrive pin resulting in zero shaft engagement): 132mm

Fitment Notes

• Fits the front or rear of the Traxxas 1/10th scale Maxx monster truck
• Traxxas WIDE Maxx applications require the optional 65mm center drive tube (HRASLD65T)
• Reuse the stock drive pin and set screw
• Maintain the CV joint and shaft spline with grease
• Use medium thread lock on screws threading into metal

Includes

• (2) splined axle assemblies
