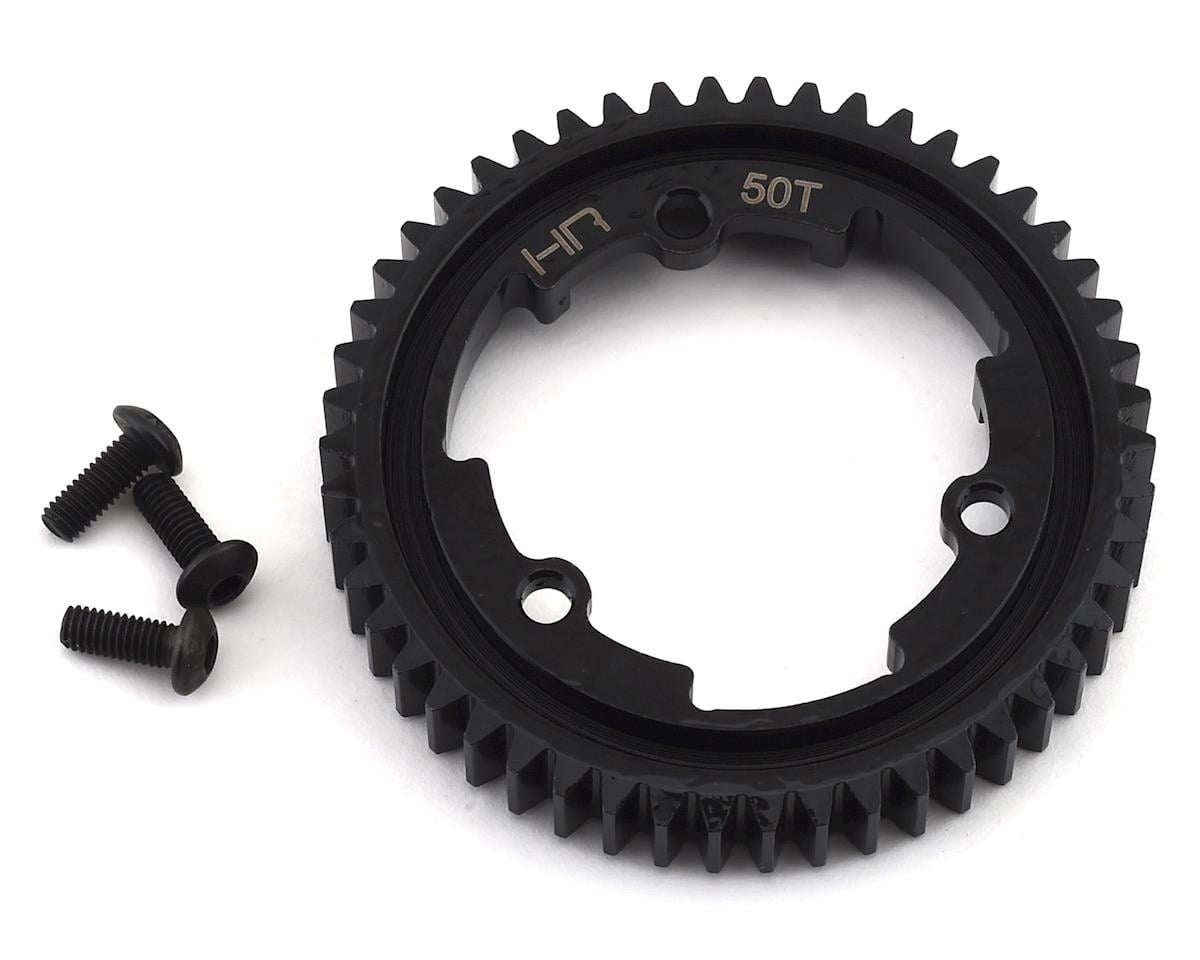

Hot Racing Steel Mod 1 Steel Spur Gear for Traxxas E Revo 2.0/X-Maxx/XO-1 (50T)

Upgrade the factory plastic spur gear in your Traxxas model with the Hot Racing 50-tooth Mod 1 steel spur gear. It features CNC machined hardened steel construction, a black oxide finish and laser-etched tooth count marking.

Features

• Mod 1, 50-tooth spur gear
• CNC machined hardened steel construction
• Black oxide finish
• Laser-etched tooth count marking
• Optional upgrade for Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S and XO-1 models

Specifications

• Overall diameter: 52.8mm
• Gear face width: 8mm

Gear Mesh Note

For the X-Maxx, do not use the pin system to set gear mesh. Remove the pins and manually set the mesh using the four 4x16mm button-head cap screws on the bottom. Loosen the screws, place a narrow strip of notebook paper into the gear mesh, slide the motor and pinion gear into the spur gear, then tighten the screws and remove the paper. A fresh strip of paper should pass through the gears without binding. Refer to the Traxxas manual for instructions on adjusting gear mesh.

Includes

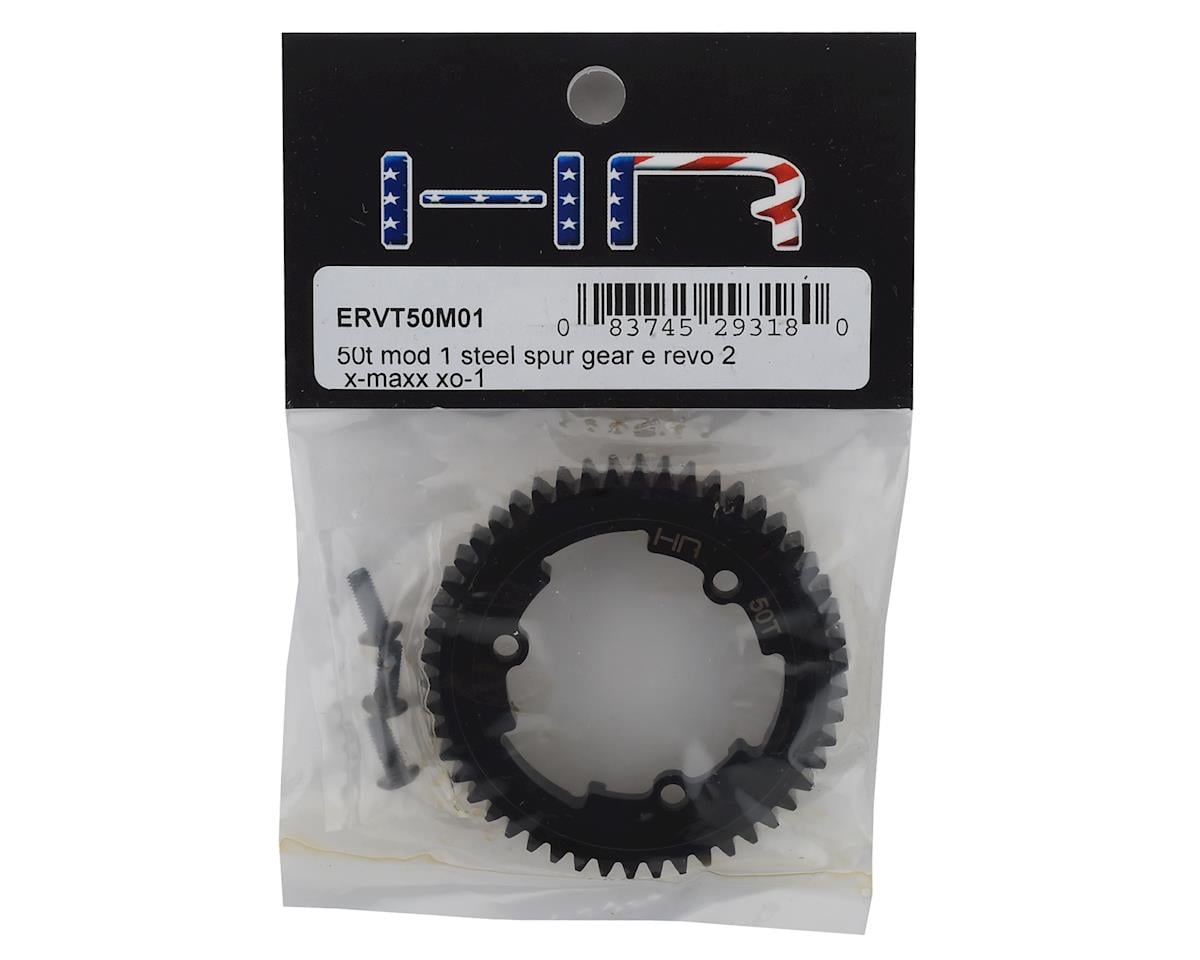

• One (1) Mod 1 steel spur gear
