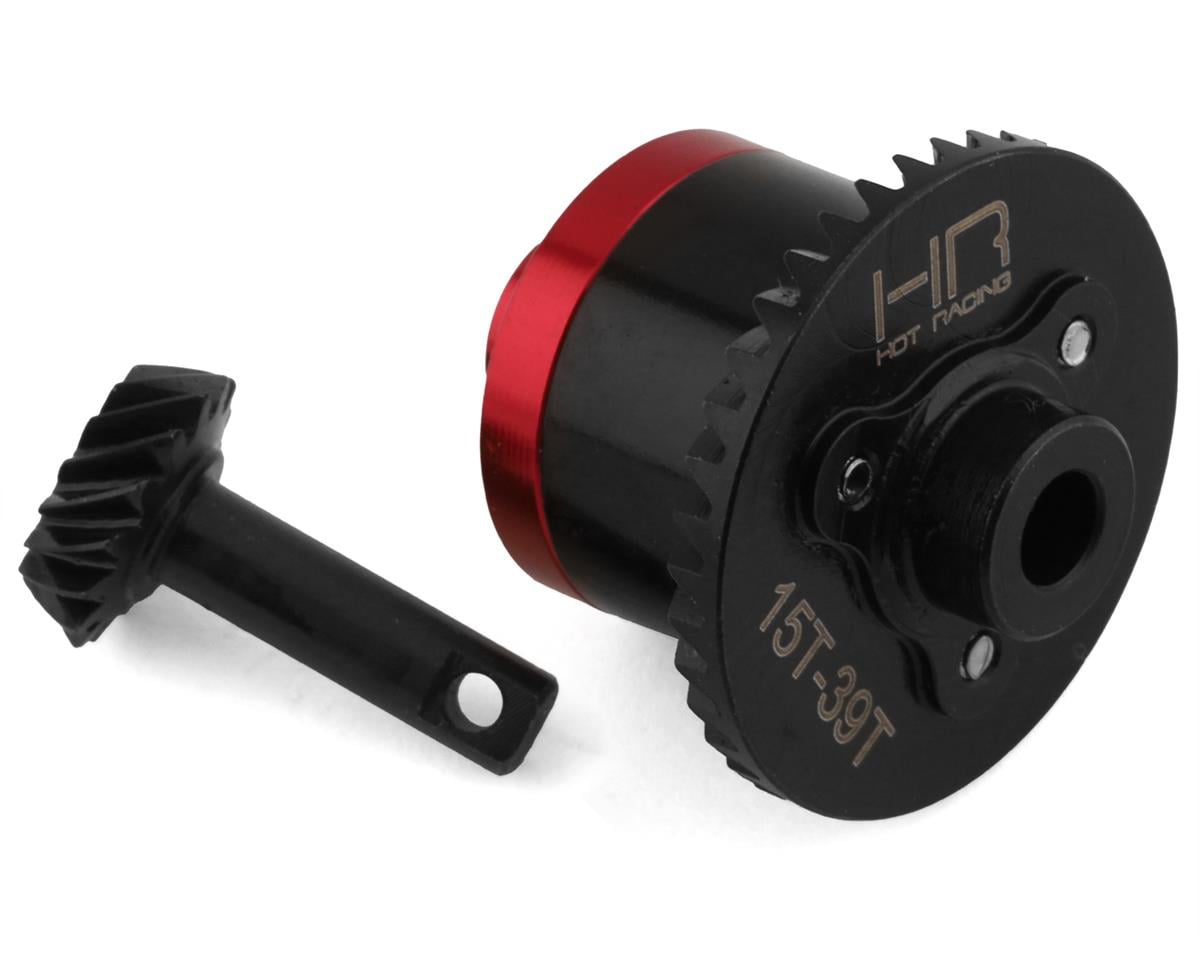

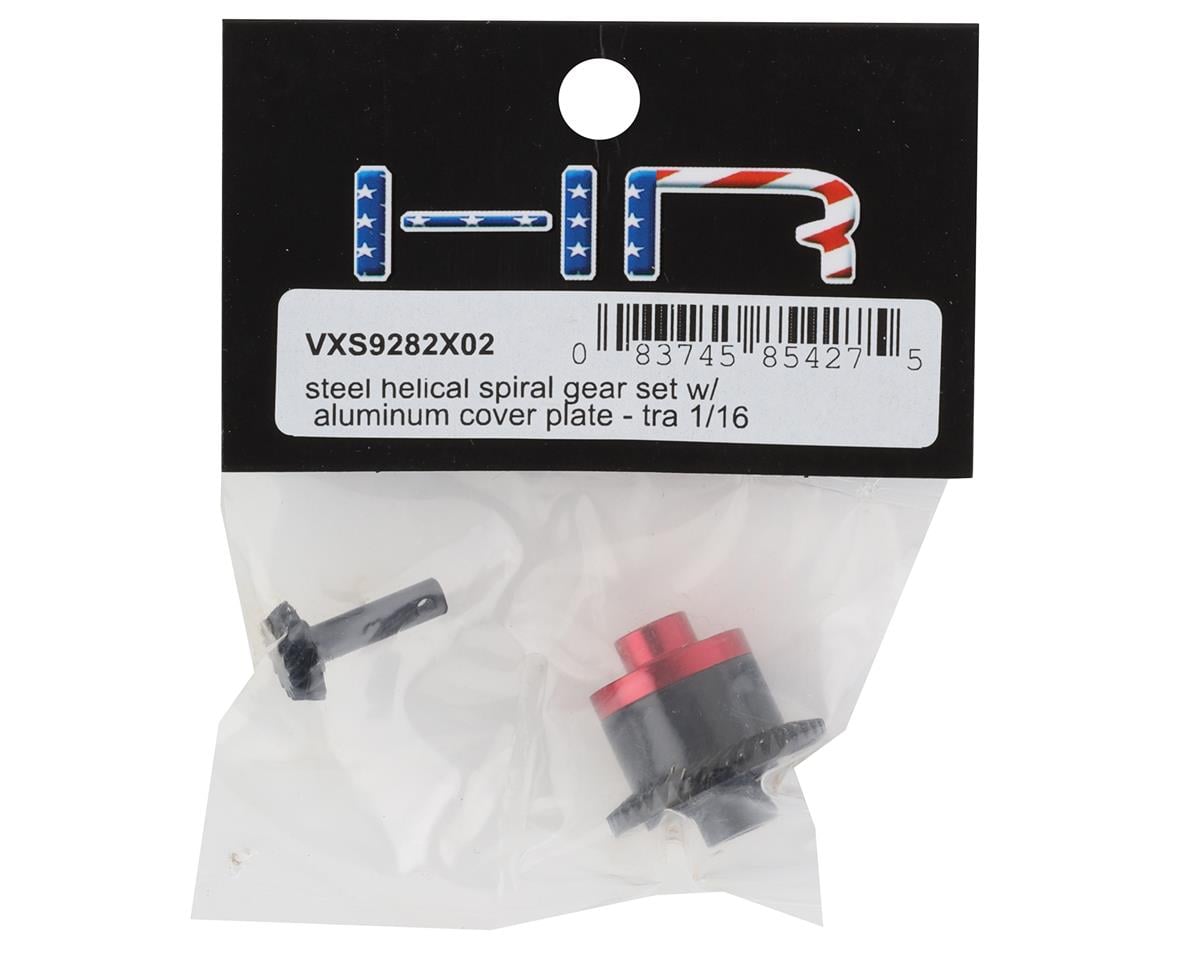

Hot Racing Steel Helical Spiral Gear Set w/Aluminum Cover Plate for Traxxas 1/16

Upgrade the front or rear differential of a Traxxas 1/16 4X4 vehicle with the Hot Racing Steel Helical Spiral Gear Set and Aluminum Cover Plate. Precision-machined helical spiral-cut gears provide smooth operation and greater inherent strength than factory bevel-cut gears.

Features

• CNC machined aluminum and hardened high carbon steel construction
• Anodized red aluminum carrier cover plate
• Compatible with the 1/16 E-Revo, 1/16 Slash 4X4, and 1/16 Summit
• For front or rear differentials

Specifications

• Carrier width: ~23mm
• Carrier bearing boss diameter: 8mm
• Pinion length: ~19.5mm

Includes

• Steel 34T ring gear
• Steel 13T pinion gear
• Steel carrier
• Aluminum carrier cover plate
• Shims for optional differential shimming

Installation Notes

• Two sets are required per vehicle.
• Reuses Traxxas TRA7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential.
• Does not include inner differential gears.
• Use removable thread lock, such as blue Loctite, on carrier screws.
• Use differential grease.
• Installation may require shimming for proper gear mesh. The gears should run freely without too much play or binding.
• Replaces Traxxas 7079 ring and pinion and 7080 carrier cover plates, except for the output shaft seal.
• Additional shims may be purchased using Hot Racing part number W8X.
