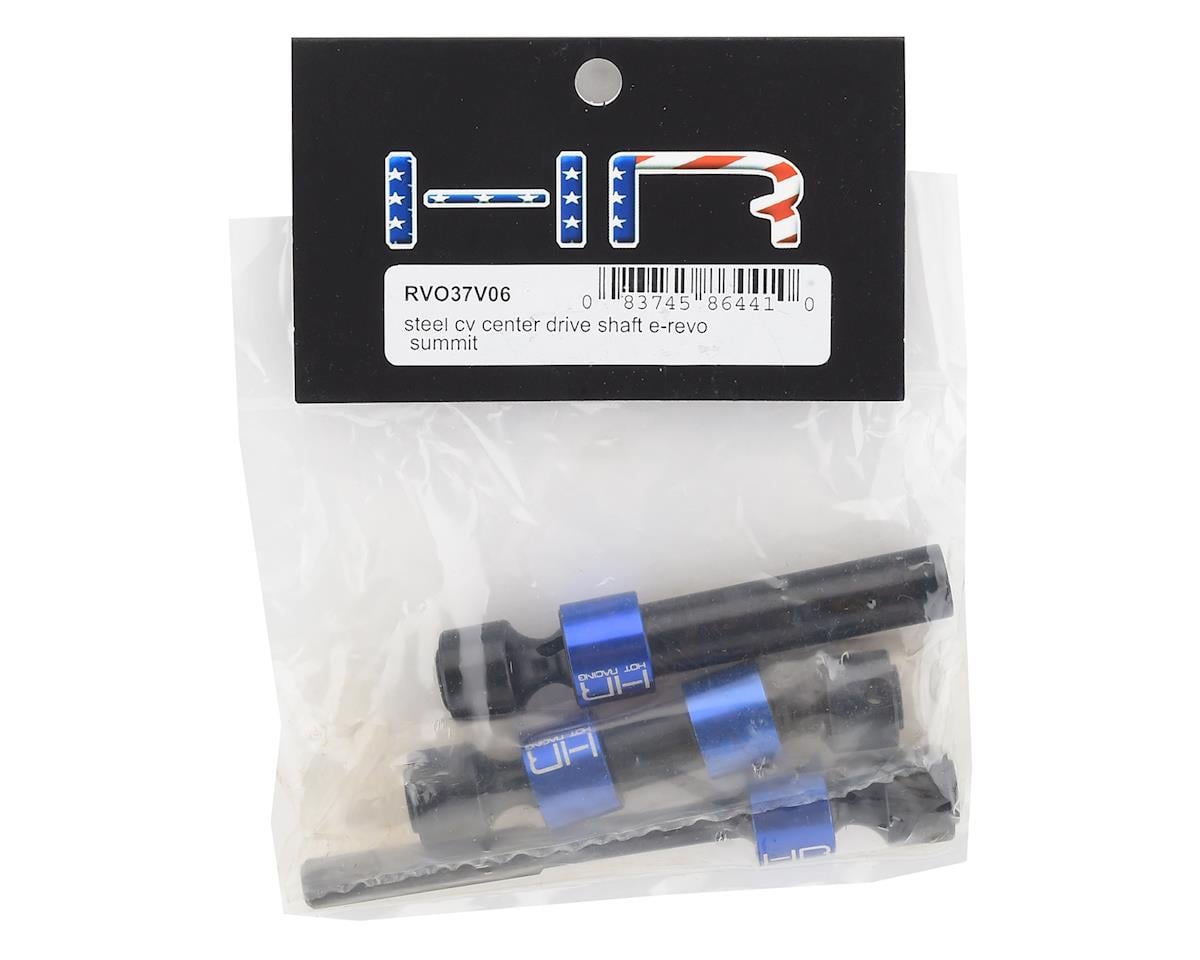

Hot Racing Steel CV Center Drive Shaft for Traxxas E-Revo/Summit

The Hot Racing Steel CV Center Drive Shaft is a replacement for the factory plastic front or rear drive axles on Traxxas E-Revo and Summit models. This center front and rear driveshaft set uses CNC-machined #45 hardened carbon steel construction with a black finish.

Features

• Heavy duty splined star drive center front and rear driveshaft assembly
• Blue anodized aluminum pin capture rings with rubber O-rings to prevent movement
• Design eliminates the CV pin setscrew
• Reuses Traxxas 5145 M4/15 screw pins

Specifications

• Center front driveshaft approximate collapsed length: 77mm (3.0 inch)
• Center rear driveshaft approximate collapsed length: 129mm (5.1 inches)

Includes

• One (1) center front driveshaft assembly
• One (1) center rear driveshaft assembly

Installation Notes

• Installation at rear drive assembly is needed to complete.
• Grease is recommended to maintain the CV joint and shaft spline.
• A removable-type locking adhesive is recommended on screws threading into metal.
• Replacement drive hubs: Hot Racing HRARCV15DH
