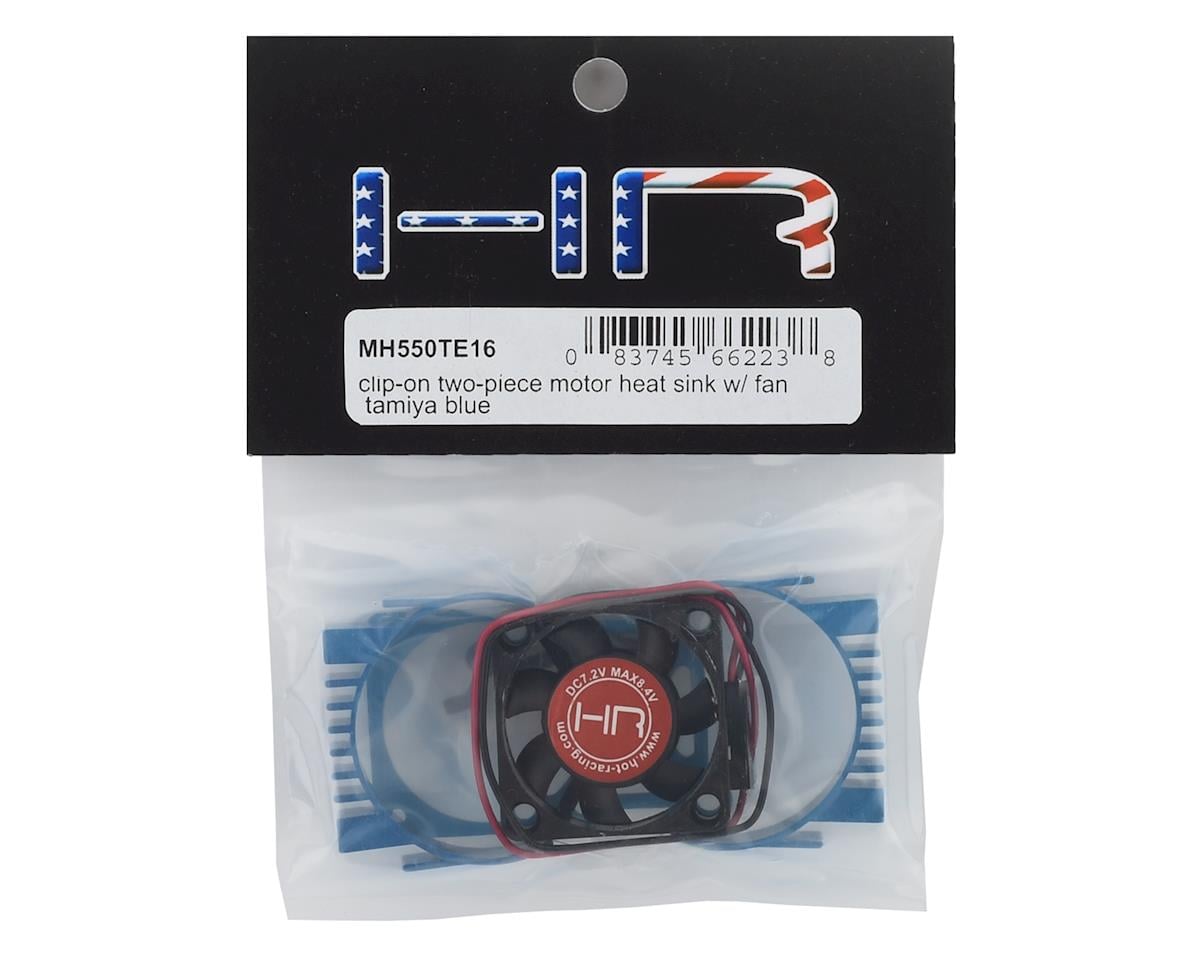

Hot Racing Clip-On Two-Piece Motor Heat Sink w/Fan (Tamiya Blue)

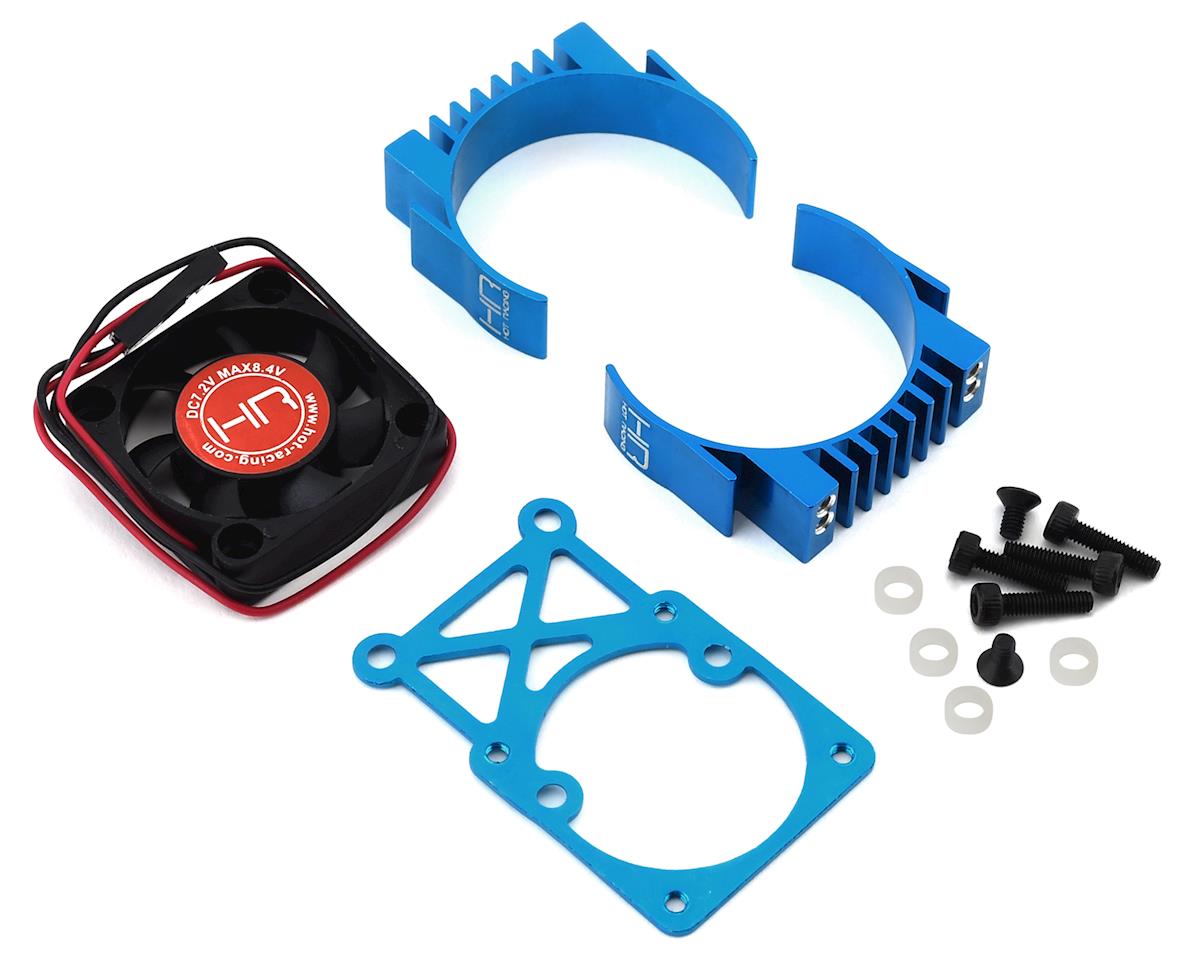

The Hot Racing Clip-On Two-Piece Motor Heat Sink with Fan is designed for 540 and 550 size motors with a 36mm can diameter. Its Tamiya blue anodized aluminum construction includes a two-piece clip with 8 width adjustment options from 20-40mm.

Features

• Clip-on heat sink for 540 and 550 size motors
• Helps keep the motor running cooler
• Aluminum construction
• 8 width adjustment options from 20-40mm
• Tamiya blue anodized finish
• Laser etched Hot Racing insignia

Specifications

• Overall height: 39mm (1.54 inch)
• Fan size: 30x30x7.5mm
• Fan mounting hole pattern: 24mm square
• Input voltage: DC 7.2-8.4V MAX

Installation Requirements

• Installation required
• Some units may require assembly
• 1.5mm and 2mm hex wrench required for assembly
• M3 screws and nuts will be required for some configurations
• Electrical hookup with a 7.2-8.4V MAX DC power source
• Plug requires soldering or connection to a receiver port plug
