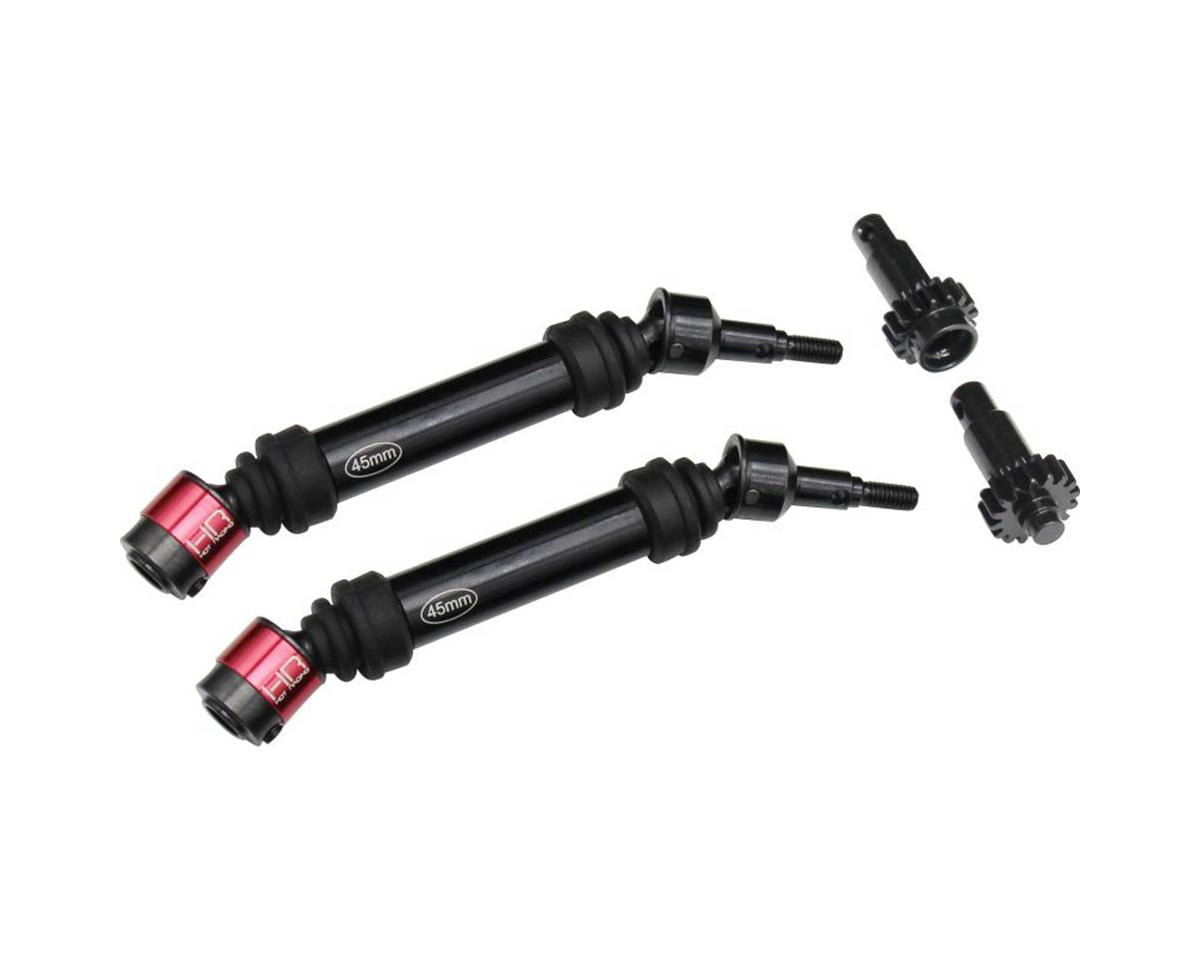

Hot Racing Arrma 4x4 Metal Splined Drive Shafts

The Hot Racing Arrma 4x4 Metal Splined Drive Shafts are a heavy-duty splined star drive axle kit for 1/10 Arrma 4X4 vehicles. They replace the stock diff outdrives and factory plastic drive axles.

Features

• CNC machined and hardened S2 spring steel wheel axle stubs
• CNC machined and hardened #45 steel outdrives, drive hubs, and 45mm slider spline
• Hard anodized black aluminum 45mm slider
• Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Rubber dust boot helps retain lubrication and protect the slider against the elements

Includes

• (2) CVD shaft assemblies
• (2) CNC steel Output diff gear
• (2) M4x2.5x11mm screw shafts

Specifications

• Approximate overall collapsed length: 108mm

Replacement Information

Replaces stock Arrma AR310775 diff outdrives and AR310780 front shafts, or AR310864 rear shafts. Does not fit V3 Big Rock models.

Compatible With

• Big Rock 4X4 3S BLX: AR102711
• Granite 4X4 3S BLX: AR102666
• Granite 4X4: AR102665 (green), AR102676 (red)
• Senton 4X4: AR102667 (red), AR102678 (blue)
• Senton 4X4 3S BLX: AR102668
• Typhon 4X4 3S BLX: AR102696 (optional; requires Hot Racing ATF117XT02 17mm hubs and will not work with stock 17mm hubs)
