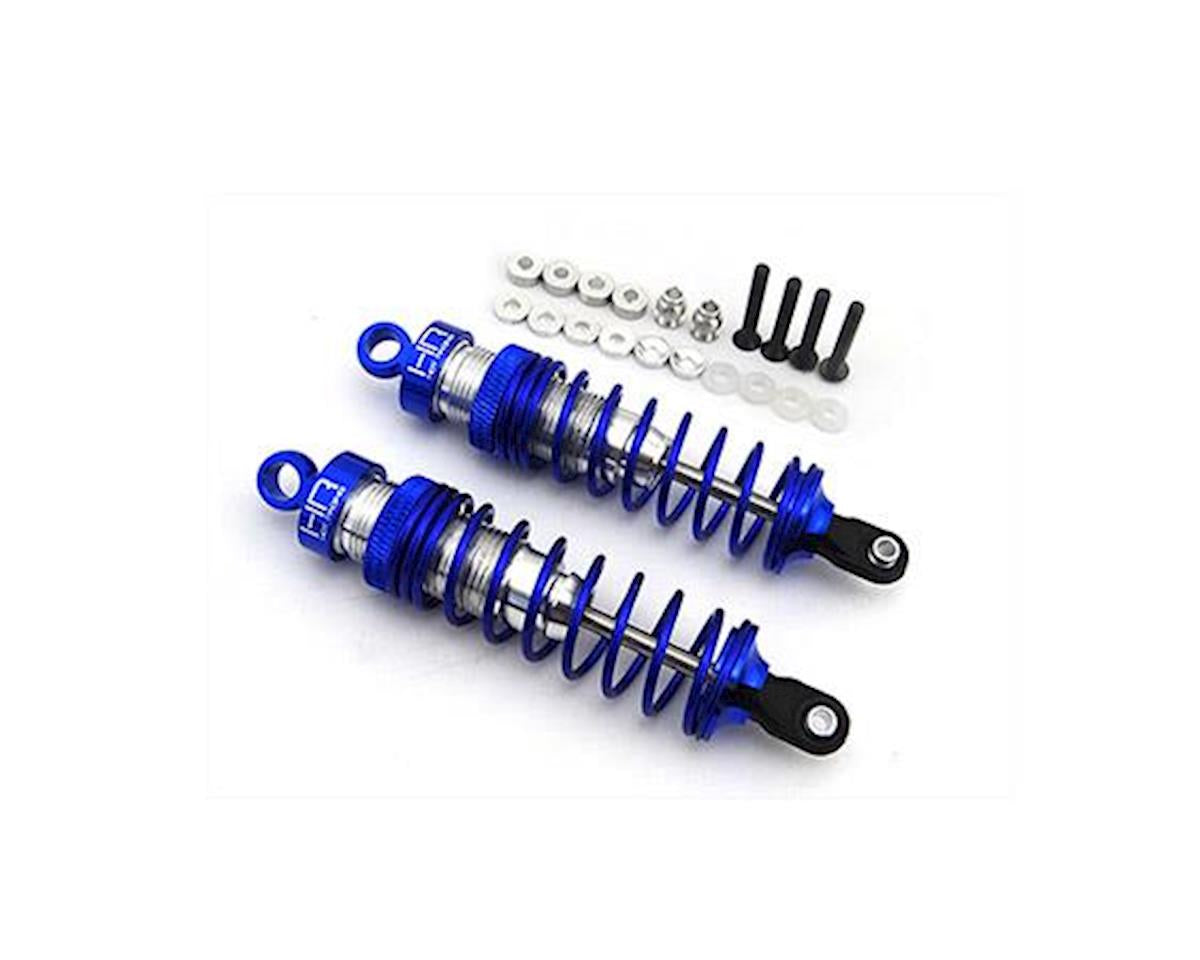

Hot Racing 90mm Aluminum HD Big Bore Shock Set (2)

The Hot Racing 90mm Aluminum HD Big Bore Shock Set includes two fully assembled threaded-body aluminum shocks for many 1/10th scale off-road vehicles using 90mm shocks. Add silicone shock oil and bleed using the typical bladder shock bleeding procedure.

Features

• CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
• “Big Bore” threaded shock bodies
• CNC machined 11mm Delrin pistons
• 3.5mm stainless steel shock shafts
• Silver and blue anodized aluminum components
• Vented shock caps with bladder seals for consistent rebound dampening
• Threaded shock collars with O-rings to help prevent unwanted movement
• Composite plastic lower shock ends with aluminum balls

Specifications

• Extended length: 90mm
• Overall length: 100mm
• Spring: ~5.8lb/in, 1.54mm wire, 10 turn dual rate, 19.3mm OD
• Replaces Traxxas Big Bore Long Shocks: TRA2660, 3760, 3760A, 4760

Includes

• (2) assembled shocks
• (2) M3x20mm flat head cap screws
• (2) M3x18mm button head cap screws
• (2) 3mm countersunk washers
• (2) 5.9 hollow balls
• (4) 1.5mm thick spacers
• (4) 3mm thick spacers

Additional Information

• Use spacers as needed for installation.
• Compatible with optional Hot Racing springs HRASLF48FS261, HRASLF48MR268, and HRASLF48RS286.
• Accepts optional Hot Racing silicone shock boot HRARDP34201.
• Optional progressive damping 90mm shocks: Hot Racing HRATD90PC06.
• Silicone shock oil and bleeding are required.
• Snap ring pliers and Team Associated shock Green Slime grease or shock O-ring grease are recommended when rebuilding the lower seal.
