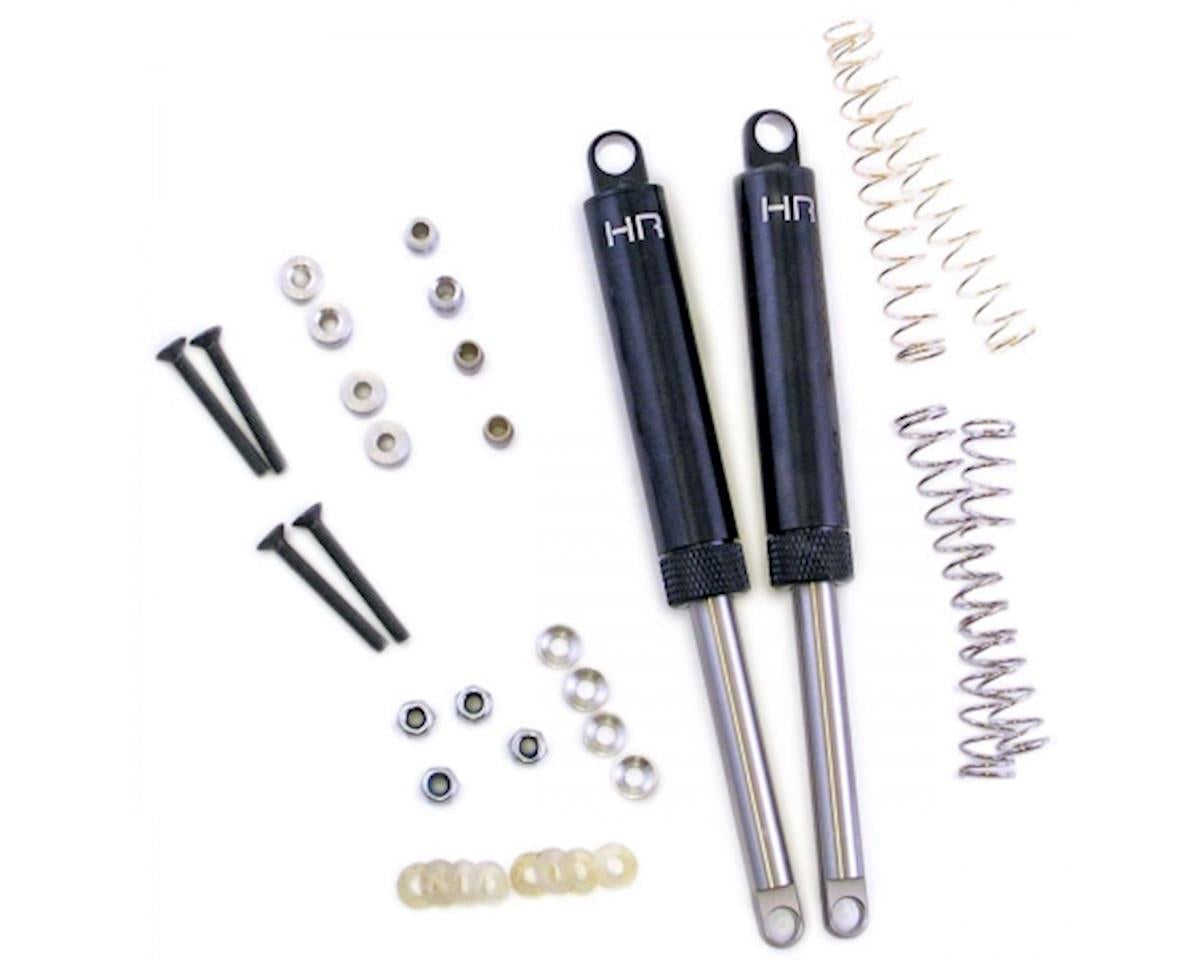

Hot Racing 120mm Internal Spring Air Shock (Black) (2)

Hot Racing 120mm Internal Spring Air Shocks are optional shocks for scale crawlers, comp crawlers and custom builds. This set includes two assembled black shocks with internal springs in three rates.

Features

• CNC machined aluminum shock bodies
• Black anodized CNC machined aluminum upper shock caps with O-ring seals
• Black anodized CNC machined aluminum lower shock caps with shock shaft guides
• Black anodized precision machined 7mm stainless steel shock shafts
• Double O-ring lower shaft seals
• Air damping
• All aluminum is anodized for durability, corrosion resistance and appearance

Specifications

• Extended center to center length: 120mm (4.7 inch)
• Compressed center to center length: 79mm (3.1 inch)
• Overall length: 128mm (5.0 inch)
• Body diameter: 13mm (0.5 inch)
• Shaft diameter: 7mm (0.3 inch)

Includes

• (2) assembled shocks
• (2) gold (soft) springs
• (2) black (medium) springs
• (2) silver (stiff) springs
• (2) 4.8mm ball mounts
• (2) 5.8mm ball mounts
• (4) 5x7mm offset spacers
• (4) 3mm countersunk washers
• (4) 3x25mm flat head cap screws
• (8) 3mm O-rings
• (4) lock nuts

Note: Team Associated Green Slime ASC1105 is recommended for use on the lower O-ring seals to assist sealing and increase smoothness.
