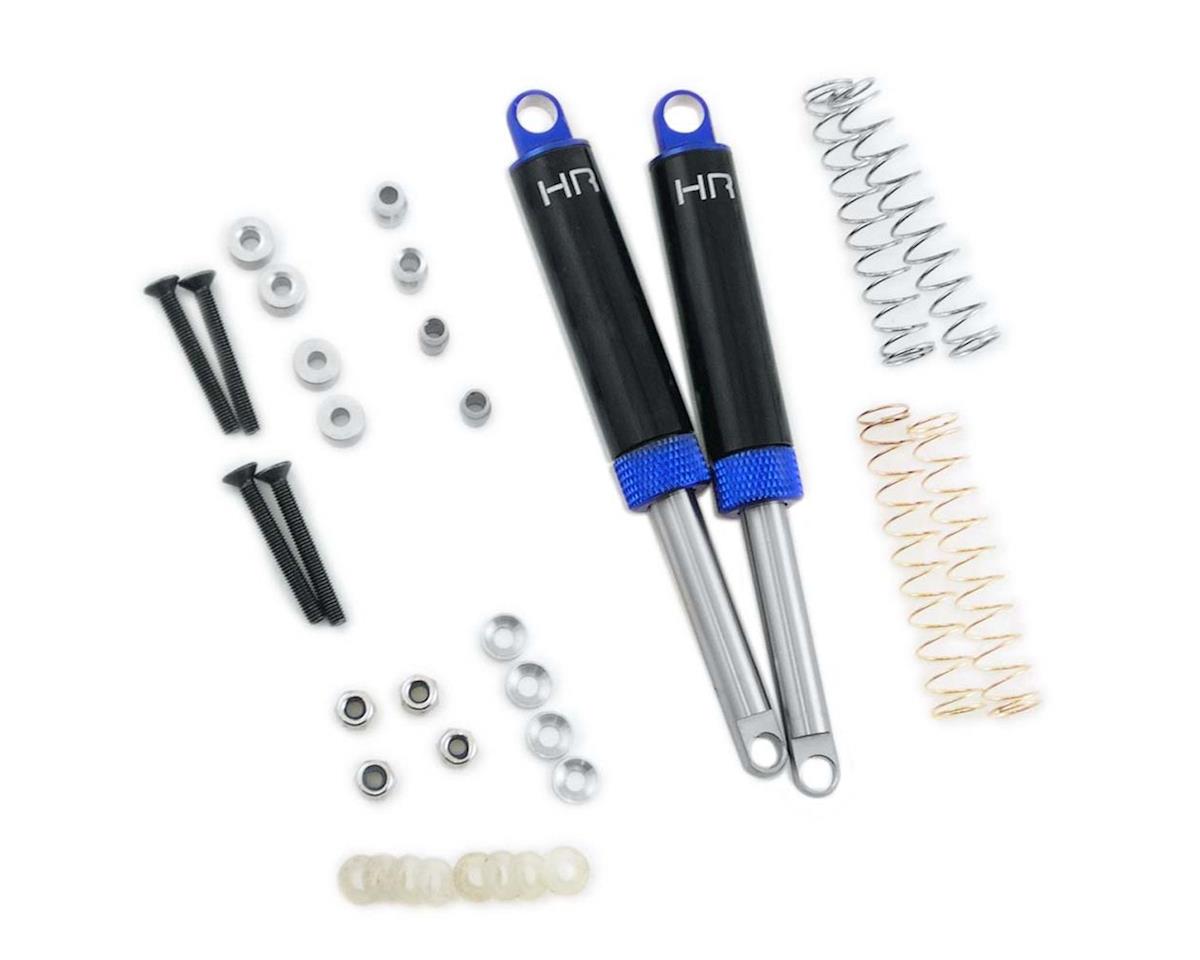

Hot Racing 100mm Internal Spring Air Shocks (Blue) (2)

Hot Racing 100mm Internal Spring Air Shocks provide an adjustable shock setup for scale crawlers, comp crawlers and custom builds. This set includes two assembled shocks with internal springs in three rates: gold soft, black medium and silver stiff.

Features

• CNC machined aluminum shock bodies
• Black anodized CNC machined aluminum upper shock caps with O-ring seals
• Blue anodized CNC machined aluminum lower shock caps with shock shaft guides
• Blue anodized precision machined 7mm stainless steel shock shafts
• Double O-ring lower shaft seals
• Air damping
• Internal springs with three rates included: gold soft, black medium and silver stiff
• Anodized aluminum components for durability, corrosion resistance and appearance

Specifications

• Extended center-to-center length: 100mm (3.9 inch)
• Compressed center-to-center length: 68mm (2.7 inch)
• Overall length: 108mm (4.3 inch)
• Body diameter: 13mm (0.5 inch)
• Shaft diameter: 7mm (0.3 inch)

Includes

• (2) assembled shocks
• (2) gold soft springs
• (2) black medium springs
• (2) silver stiff springs
• (2) 4.8mm ball mounts
• (2) 5.8mm ball mounts
• (4) 5x7mm offset spacers
• (4) 3mm countersunk washers
• (4) 3x25mm flat head cap screws
• (8) 3mm O-rings
• (4) lock nuts

Note: Team Associated Green Slime ASC1105 is recommended for use on the lower O-ring seals to assist sealing and increase smoothness.
